A S S E M B LY I N S T R U C T I O N S

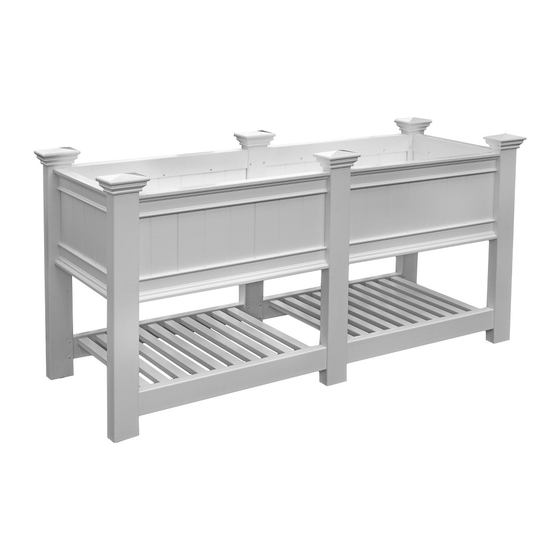

The Cambridge Raised Planter Extension Kit
Please read through before starting assembly.

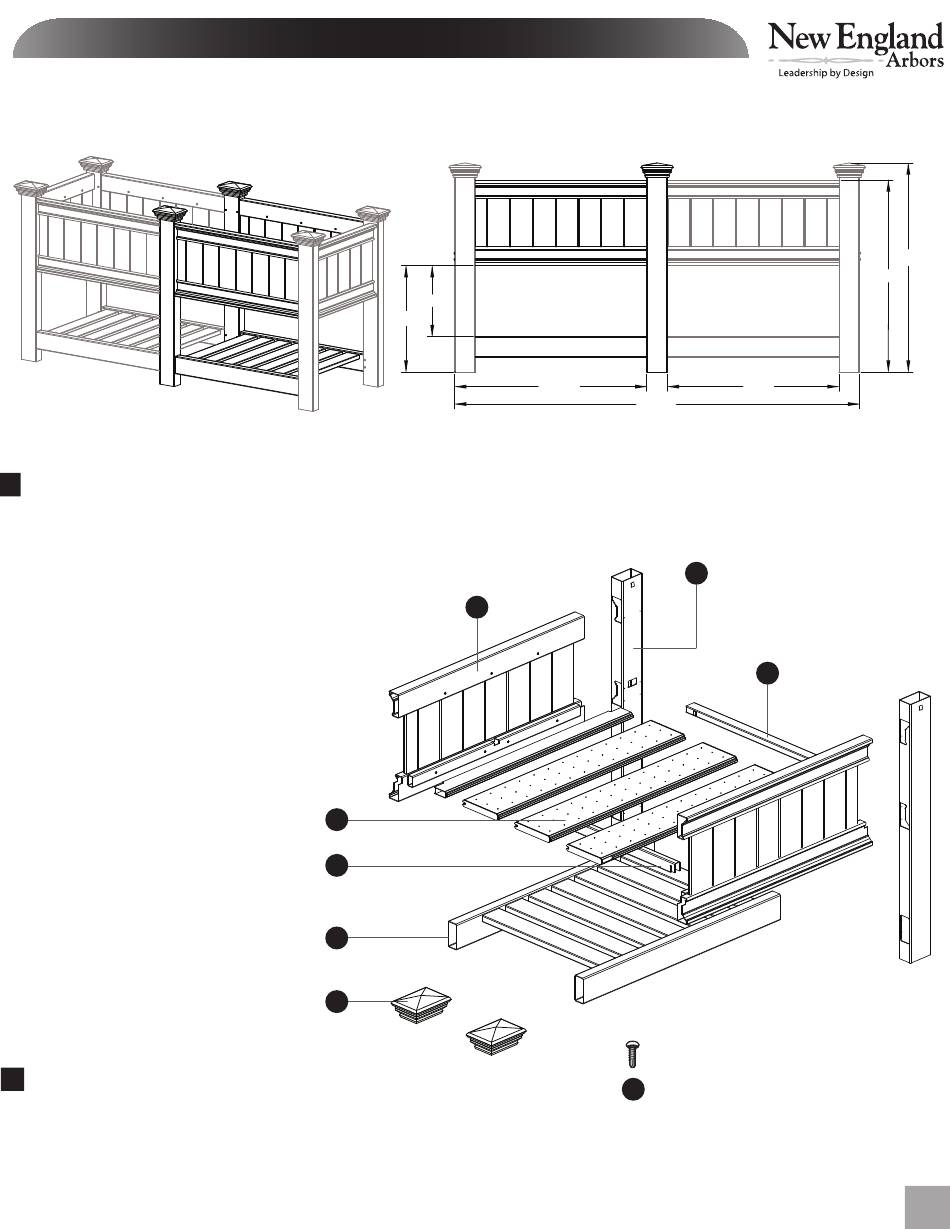

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 - Mon. to Fri. 1:00 PM to 10:00 PM GMT).
1. Pre-Assembled Front & Back Wall Panels (2) -
2. Floor Panels (4) -
10871
3. Floor Support (1) -
10872
4. Center Extension Posts (2) -
5. Pre-assembled Shelf (1) -
6. Post Caps (2) -
10611
7. Centre Support Rail (1) -
10877
8. 5/8" (16 mm) Stainless Steel Screws (20) -

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8' (1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
18 in
(46 cm)
10870
10875
10997
20016
2
3
5
6
12 in
(30 cm)
32.5 in
(83 cm)
1
www.newenglandarbors.com
www.newenglandarbors.co.uk
29 in
(74 cm)
68.5 in
(174 cm)
4
7
8
Not to Scale
Ver 3.3/080817
35.4 in
(90 cm)
32.5 in
(83 cm)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cambridge Raised Planter Extension Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for New England Arbors Cambridge Raised Planter Extension Kit

  • Page 1 A S S E M B LY I N S T R U C T I O N S The Cambridge Raised Planter Extension Kit www.newenglandarbors.com www.newenglandarbors.co.uk 35.4 in (90 cm) 32.5 in (83 cm) 12 in (30 cm) 18 in (46 cm) 32.5 in...
  • Page 2 The Cambridge Raised Planter Box Extension O ve r v i e w This instruction is intended to assist with retrofitting an extension kit to your existing raised planter box. Some disassembly of the raised planter box will be necessary. Please look over both sets of instructions for total scope.
  • Page 3 The Cambridge Raised Planter Box Extension S T E P O N E Disassemble the Cambridge Raised Planter Box Remove the four floor boards. Place the planter box on its side as shown. Note the shelf rails inside the posts. The Extension Kit will go on the side which shelf rails are only inserted half way through the posts.
  • Page 4 The Cambridge Raised Planter Box Extension S T E P T W O Assemble the Extension Kit Note: Floor Supports location Lay the side panel extracted from Step One from the previous page on the floor as shown and insert the pre-assembled shelf into the routed hole.
  • Page 5 The Cambridge Raised Planter Box Extension S T E P T W O (CONT’D) Fasten the wall panel into place using the screws set aside from Center & fasten the Shelf Rails onto the Wall Panel using the Step One as shown. screws set aside from Step One as shown.
  • Page 6 The Cambridge Raised Planter Box Extension S T E P T H R E E Attach the Extension Kit Fasten the extension kit onto the center posts using the 5/8” (16 mm) screws provided (10 total) into the pre-drilled holes on the center posts. 5/8”...
  • Page 7 The Cambridge Raised Planter Box Extension S T E P T H R E E (CONT’D) Pressure fit the Post Caps into place. Push firmly until they snap into place. North America Toll Free Phone: 1 800 282 9346 www.newenglandarbors.com United Kingdom Tel: (44) 2038 687160 www.newenglandarbors.co.uk...
