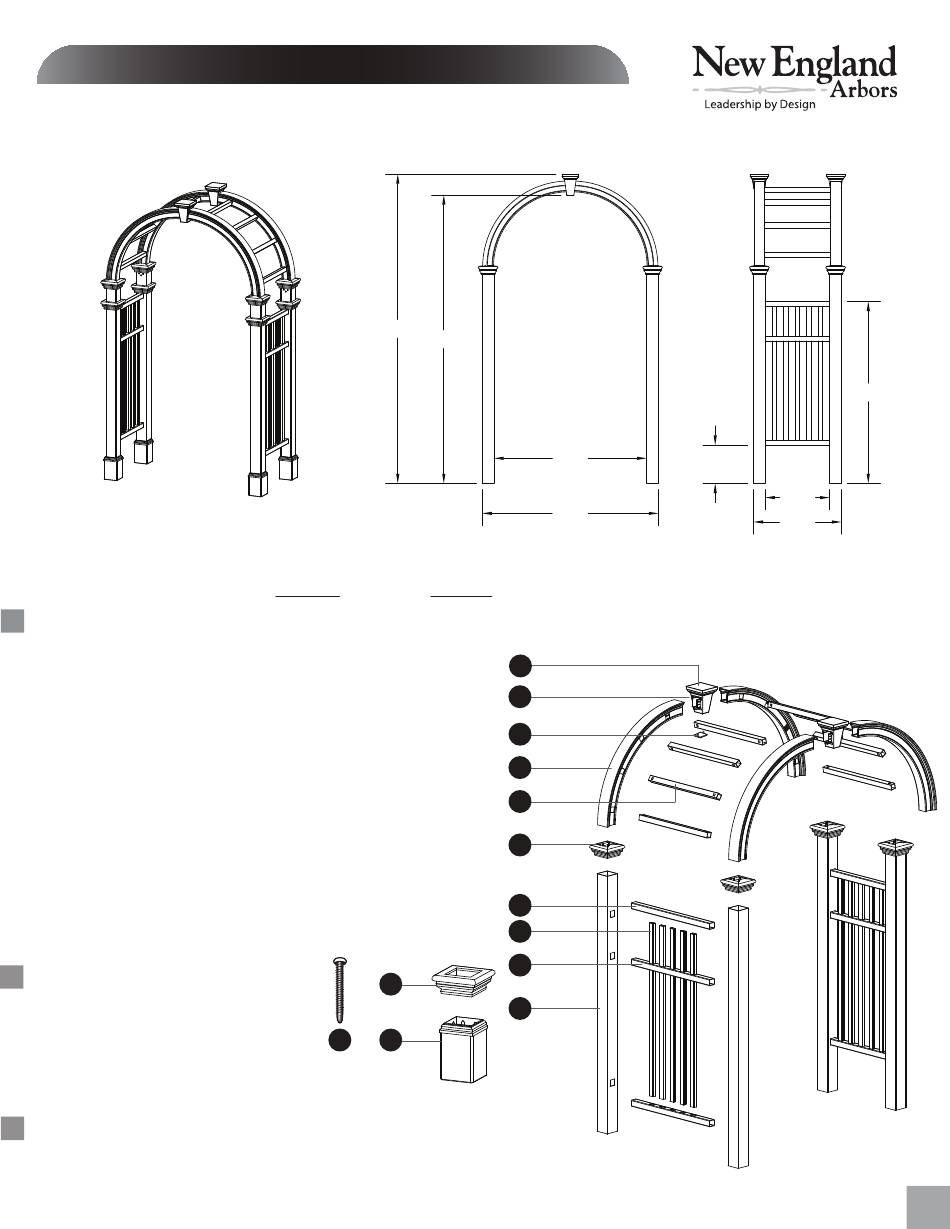

A S S E M B LY I N S T R U C T I O N S
The Wyndham Arbor
*Wyndham Arbor with Trim Kit Shown Above.
Please read through before starting assembly.

IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone Top Lid (2)
2. Arch Keystones (2)
3. Keystone Bottom Plate (2)
4. Arches (4)
5. Arch Rafters (8)
6. Post Caps (4)
7. Side Panel Top and Bottom Rails (4)
8. Side Panel Vertical Spindles (10)
9. Side Panel Middle Rails (2)
10. Posts (4)
11. #8 x 2 1/2 in.(6.4 cm.) Stainless Steel Screws (For Keystone and
Arch to Post Connection) (16)
If you purchased the arbor along with our decorative trim kit,
there will be a separate box with the following contents;
12. Post Trim Caps (4)
13. Base Molds (4)

Tools You Will Need

• Cordless Drill
• Hammer
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel or Auger

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
105.5 in
98.25 in
12
11
13
(Not to scale)
52 in
60 in
1
2
3
4
5
6
7
8
9
10
www.newenglandarbors.com
62 in
13 in
22 in
30 in
Ver 1.1/072016
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Wyndham Arbor and is the answer not in the manual?

Questions and answers

Summary of Contents for New England Arbors The Wyndham Arbor

  • Page 1 A S S E M B LY I N S T R U C T I O N S The Wyndham Arbor www.newenglandarbors.com 105.5 in 98.25 in 62 in 52 in 13 in 22 in *Wyndham Arbor with Trim Kit Shown Above.
  • Page 2 Insert arch rafters (8) into the holes on the arches until they bottom out inside the arches. There are “locking tabs” located at each end of these rafters that once inserted into the holes will lock into place. Fit opposite arch system over rafters. The Wyndham Arbor...
  • Page 3 If you purchased the extra Trim Kit, slide the second set of post trim cap over the top of each post as well as the base trim to the bottom of each post as shown. Repeat for second side panel. The Wyndham Arbor...
  • Page 4 Cons ider U sing: A - 4x4 Professional Post Extension Kit (30 in./76.2 cm. long), (Kit of 4) • Purchase from New England Arbors, www.newenglandarbors.com • Recommended to be installed in concrete footings • Follow instructions included with the kit...
  • Page 5 S T E P F O U R www.newenglandarbors.com Connect the Arch System to the Side Panels Temporarily position post caps on bottoms of arches. With a helper, slide down the arches until the bottom of the spoke is approximately 1” above the post cap. Slide post caps down into position.
