New England Arbors Savannah Composite Trellis Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

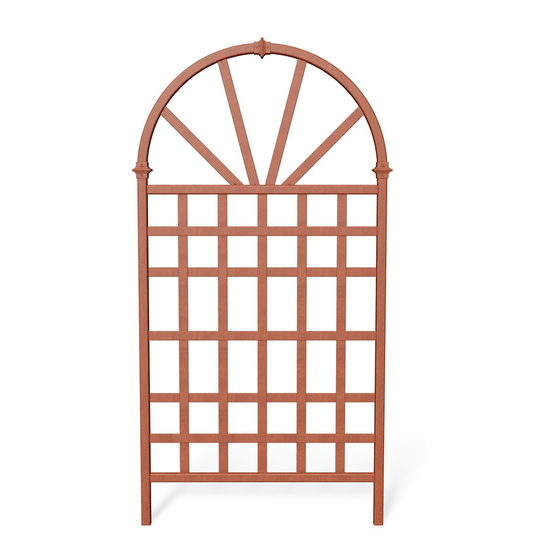

Savannah Composite Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

Check Box for These Contents

In the event of missing or defective parts please call our customer service
dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Post Caps (3)
2. Arches (2)
3. Top Long Spindles (2)
4. Top Short Spindles (2)
5. Top Rail (1)
6. Posts (2)
7. Vertical Spindles (5)
8. Horizontal Spindles (5)
9. Bottom Rail (1)
10. Ground Anchoring Stakes (2)
11. 3/4" Self-Auguring Stainless Steel Screw (24)

Tools You Will Need

• Cordless Drill
• Hammer
• Tape Measure
• Level
• Shovel

General Information

• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
22.5 in
54.7 in
36 in
39 in
10
11
Not to Scale
