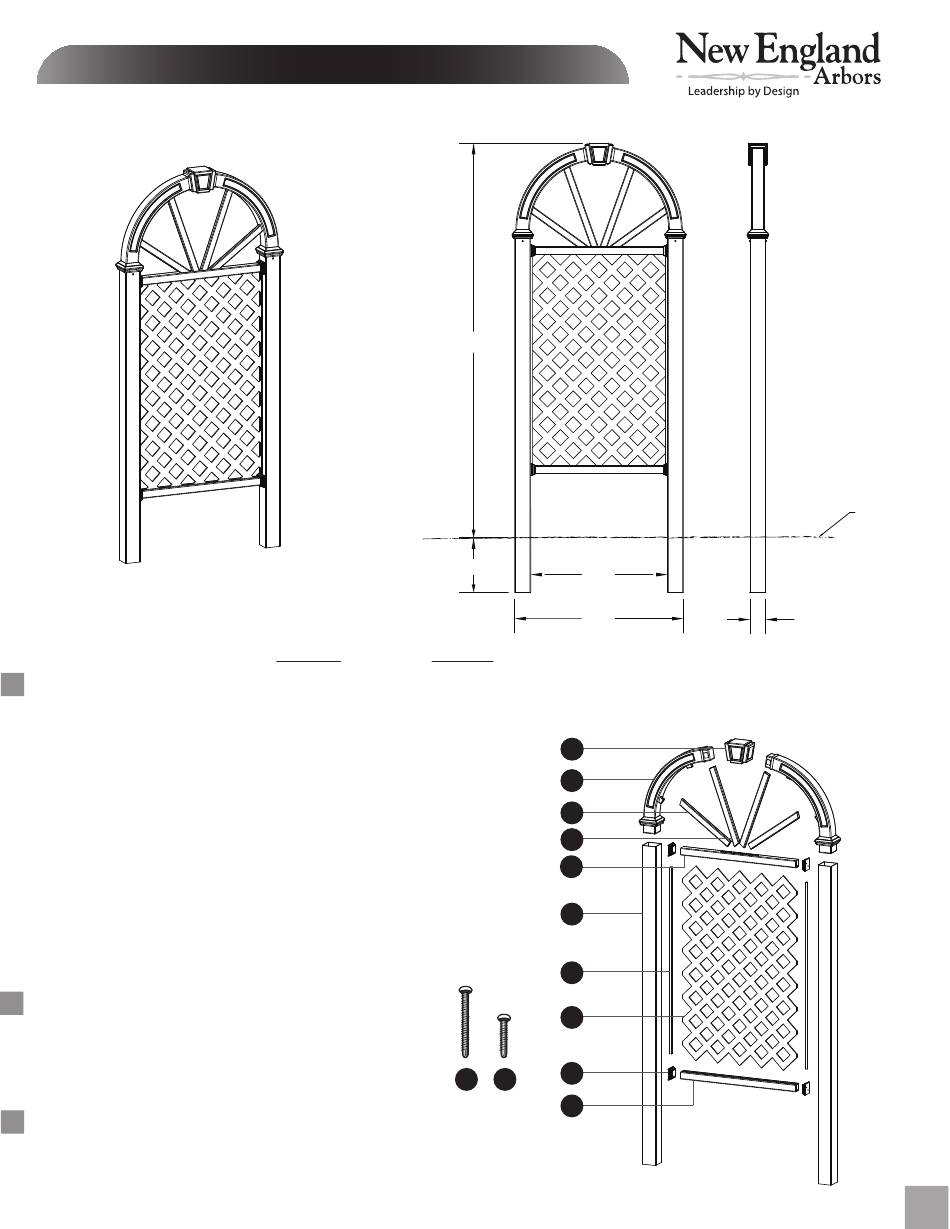

A S S E M B LY I N S T R U C T I O N S
Nantucket Trellis
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 800 282 9346
(Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone (1)
2. Arches (2)
3. Spindles - Short (2)
4. Spindles - Long (2)
5. Top Rail (1)
6. Posts (2)
7. Lattice Channels (2)
8. Diamond Lattice (1)
9. Slotted Half Couplers (4)
10. Bottom Rail (1)
11. 1 1/2" Self-Auguring Stainless Steel Screw (8)
12. 3/4" Self-Auguring Stainless Steel Screw (18)
Tools You Will Need
• Cordless Drill
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling component.
86.5 in
12 in
30 in
37 in
1
2
3
4
5
6
7
8
9
11
12
Not to Scale
10
www.newenglandarbors.com
Ground
3.5 in
V2.1/101815
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for New England Arbors Nantucket Trellis
Summary of Contents for New England Arbors Nantucket Trellis
- Page 1 A S S E M B LY I N S T R U C T I O N S Nantucket Trellis www.newenglandarbors.com 86.5 in Ground 12 in 30 in 37 in 3.5 in Please read through before starting assembly. IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
- Page 2 S T E P O N E Assemble the Top Arch Take the arches and snap them onto either side of the keystone. Using four long screws, fasten the arches to the keystone on both sides as illustrated. Note: All screws are self-tapping and require no pre-drilling. Set aside the assembled arch.
- Page 3 Slot S T E P T W O Assemble the Trellis Insert the top and bottom rails into the couplers, making sure the grooves in each rail are facing the lattice channel. Note: the top rail goes into the coupler which is closest to the end of the post.
- Page 4 S T E P T W O www.newenglandarbors.com Assemble the Trellis Hold one of the arch down into the post and secure in place using two long screws. Position the screws directly under the arch cap to ensure proper attachment to the arch. Repeat for opposite side.
