New England Arbors Athens Assembly Instructions

A S S E M B LY I N S T R U C T I O N S

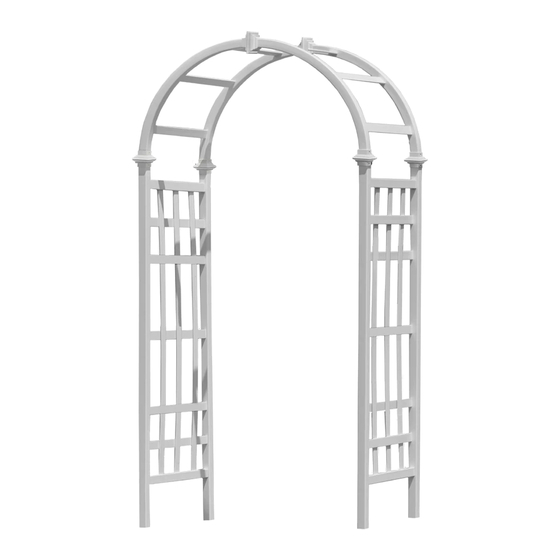

Athens Arbor / Arch
Sierra Composite Arbor / Arch
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.

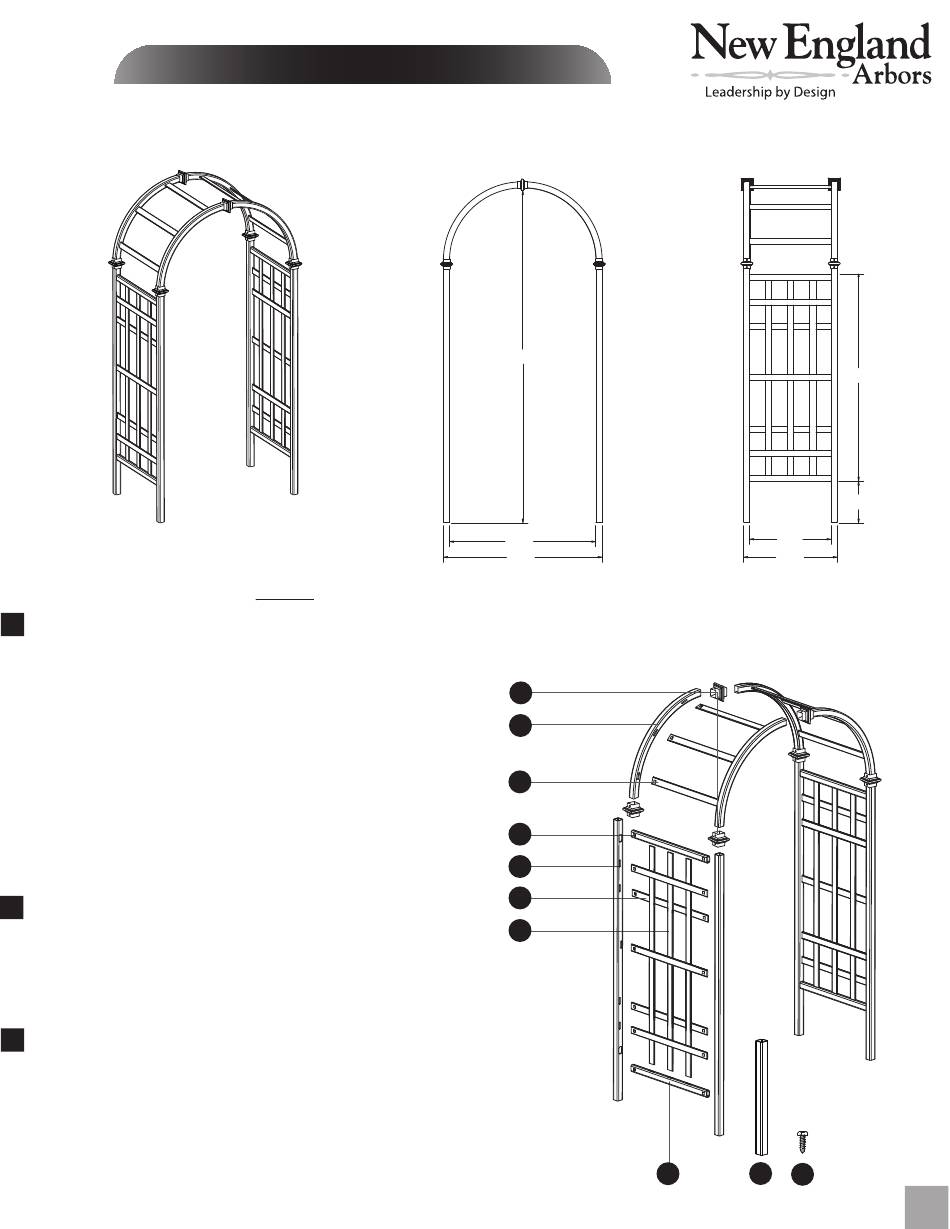

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 8~1:00 PM to 10:00 PM GMT).
1. Post Caps (6) - 10600 White / 14066 Composite
2. Arches (4) - 10601 White / 14067 Composite
3. Arch Rafters (6)* - 10602 White / 14068 Composite
4. Side Panel Horizontal Top Rails (2) - 10603 White / 14072 Composite
5. Posts (2 L's & 2 R's)) - 10604-L & 10604-R White / 14070 Left & 14069 Right Composite
6. Side Panel Horizontal Spindles (10)* - 10605 White / 14068 Composite
7. Side Panel Vertical Spindles Long (6 ) - 10606 White / 14071 Composite
8. Side Panel Horizontal Bottom Rails (2) - 10603 White / 14072 Composite
9. Ground Anchoring Stakes (4) - 10608-1 White / 14073 Composite
10. 5/8" (1.6 cm) Self-Augering Stainless Steel Screws-(48) - 20016 White
*) Arch Rafters & Side Panel Horizontal Spindles are the same parts.

Tools You Will Need

• Cordless Drill
• Level
• Stool or Short Ladder
• Shovel
• Cement (For Installation)

General Information

Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' (3 m x 2.5 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
78.5 in (199 cm)
36 in
(91 cm)
39 in
(99 cm)
1
2
3
4
20030 Composite
5
6
7
www.newenglandarbors.com
www.newenglandarbors.co.uk
50.75 in (129 cm)
20 in
(51 cm)
23 in
(58 cm)
8 9 10
Not to Scale
V1.2/020917
7.5 in (19 cm)
1
