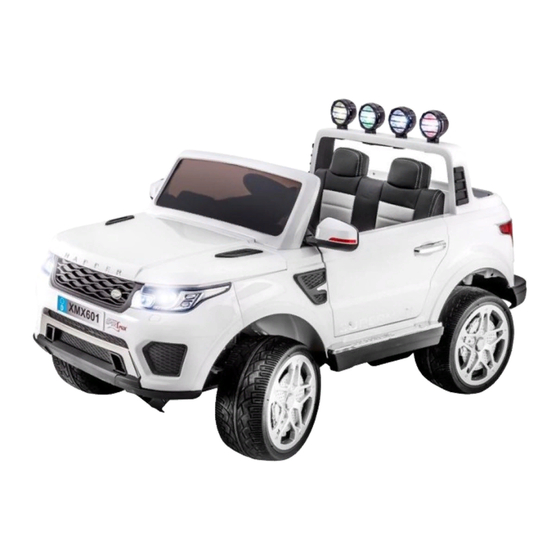

Revelation
Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all of the steps during assembly to ensure proper operation and safety
of the child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Revelation and is the answer not in the manual?

Questions and answers

Related Manuals for Supertrax Revelation

Summary of Contents for Supertrax Revelation

  • Page 1 Revelation Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all of the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.

  • Page 2: Specifications

    SPECIFICATIONS: Battery Type: 12V10AH Avg. Speed: 2 – 3 MPH Age Range: 2 – 6 Years Charging time: 8-12 hrs – Minimum 1 Charge per month Max. Weight: 90 lbs Avg. Use Time: 48-90 Minutes (depending on use) Product Size: 53”L x 33”W x 29”H Remote Battery: 2 - AAA (not...
  • Page 3 Parts List by Part Number: 1. Body 4. Washer (4) 2-3. Tire (4) 5. Bolt (4) 6. Rim (4) 7. Mirror (2) 8. Windshield 9. Seat 10. Lights 11. Screw (4) 12. Steering Wheel 13. Steering Wheel Screw B. Remote Control C.
  • Page 4 Installation of the Rear Wheels: 1.Turn the vehicle upside down 2. Slide the tire onto the rear axle. Aligning the tire with the gear box. Slide on the washer onto the rear axle. 4. Apply the locking nut to the rear axle, tightening the nut using the tool provided.

  • Page 5: Steering Wheel Assembly

    Steering Wheel Assembly Connect the sound wire from the steering wheel to the wire located within the steering column. Fit the steering wheel onto the steering column. Align the hole through the base of the steering wheel, with the hole located through the steering column.

  • Page 6: Installing The Windshield

    Installing the Windshield 1. Align the tabs of the windshield with the holes located on the dash of the vehicle. Press down lightly until you hear the windshield click into place. Connecting Vehicle to the Battery 1. Open the Hood. 2.
  • Page 7 Installing the Adjustable Seat lign the seat into the cabin of the vehicle positioned closest to the back of the car. 2. Locate the red seat guides and 4 screws (as shown in round picture above, labeled 2) 3. Attach seat guide using 2 of the 4 screws. The seat guide needs to be installed directly under one side of the seat from the bottom of the car.

  • Page 8: Charging The Vehicle

    Charging the Vehicle 1. Open the hood of the vehicle. 2. Plug the charger port into the charger socket on the battery. 3. Plug other end of charger into the power source. PLEASE NOTE: As a safety precaution and to avoid damage to the charger, the car will not power up while charger port is plugged into the car.
  • Page 9 Mp3 Player Operation Steering Wheel Function Remote Control Function...

  • Page 10: Battery Replacement And Disposal

    Operating the remote control 1. Install batteries. 2. Hold down the connection button for 2-5 seconds, then turn on the power button located on the vehicle dashboard. 3. Remote lights flash when the connection is successful. 4. Brake Button: Press button to stop vehicle. Press it again to release the brake.

  • Page 11: General Maintenance

    WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 12: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or Re-connect the battery wires are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
