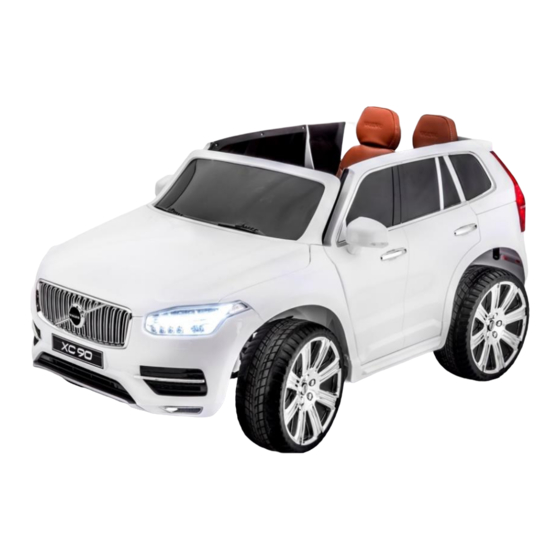

Licensed Volvo XC90
Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all of the steps during assembly to ensure proper operation and safety
of the child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video
Advertisement
Table of Contents
Related Manuals for Supertrax Licensed Volvo XC90
Summary of Contents for Supertrax Licensed Volvo XC90
- Page 1 Licensed Volvo XC90 Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all of the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.
-
Page 2: Specifications
SPECIFICATIONS: Battery Type: 12V10AH Avg. Speed: 2 – 5 MPH Age Range: 2 – 6 Years Charging time: 8-12 hrs – Minimum 1 Charge per month Max. Weight: 75 lbs Avg. Use Time: 48-90 Minutes (depending on use) Product Size: 51”L x 26”W x 25”H Remote Battery: 2 - AAA (not... - Page 3 All assembly videos can be found on YouTube under SPORTrax...
- Page 4 2: Installation of Headrest onto Seat: Locate the Headrests and Seat from the parts. Snap the corresponding headrest (R) in the right side of the top of the seat. Snap the corresponding headrest (L) in the left side of the top of the seat. 3: Installation of Rear View Mirror: Locate rear view mirrors from parts.
- Page 5 5: Installation of front wheels and wheel covers: Locate the 2 wheels that do not have the hub attached to them. (Wheels will be flat on both sides) Insert the small black plastic bushings into the center hole on the back side of the wheel. Install a flat washer onto each of the front axles.
- Page 6 7: Installation of the steering wheel: Remove nut and bolt from the steering wheel assembly. Connect the wire connector from the steering wheel to the corresponding connector at the steering column. Slide the steering wheel onto the steering shaft while feeding the wire connector into the steering column.
-
Page 7: Main Functions
Main Functions Remote Control Function Operating the remote control 1. Install batteries. 2. Remote lights will flash briefly and then go out. 2. With the lights on the remote off and the car “OFF” press and hold the car select button. (The lights on the remote will come on.) While holding the “car select”... -
Page 8: Music Player Function
Continue holding the “car select” button throughout the synching process. When the “car select” light goes out, the remote is synched to the car. STOP Button=Parking brake Music Player Function Press once to change to the story time feature. Press for about 3 seconds to lower the volume. - Page 9 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.
-
Page 10: General Maintenance
GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug. Also, check that all screws are tightened throughout the car. -
Page 11: Troubleshooting Guide
TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or wires Re-connect the battery are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
