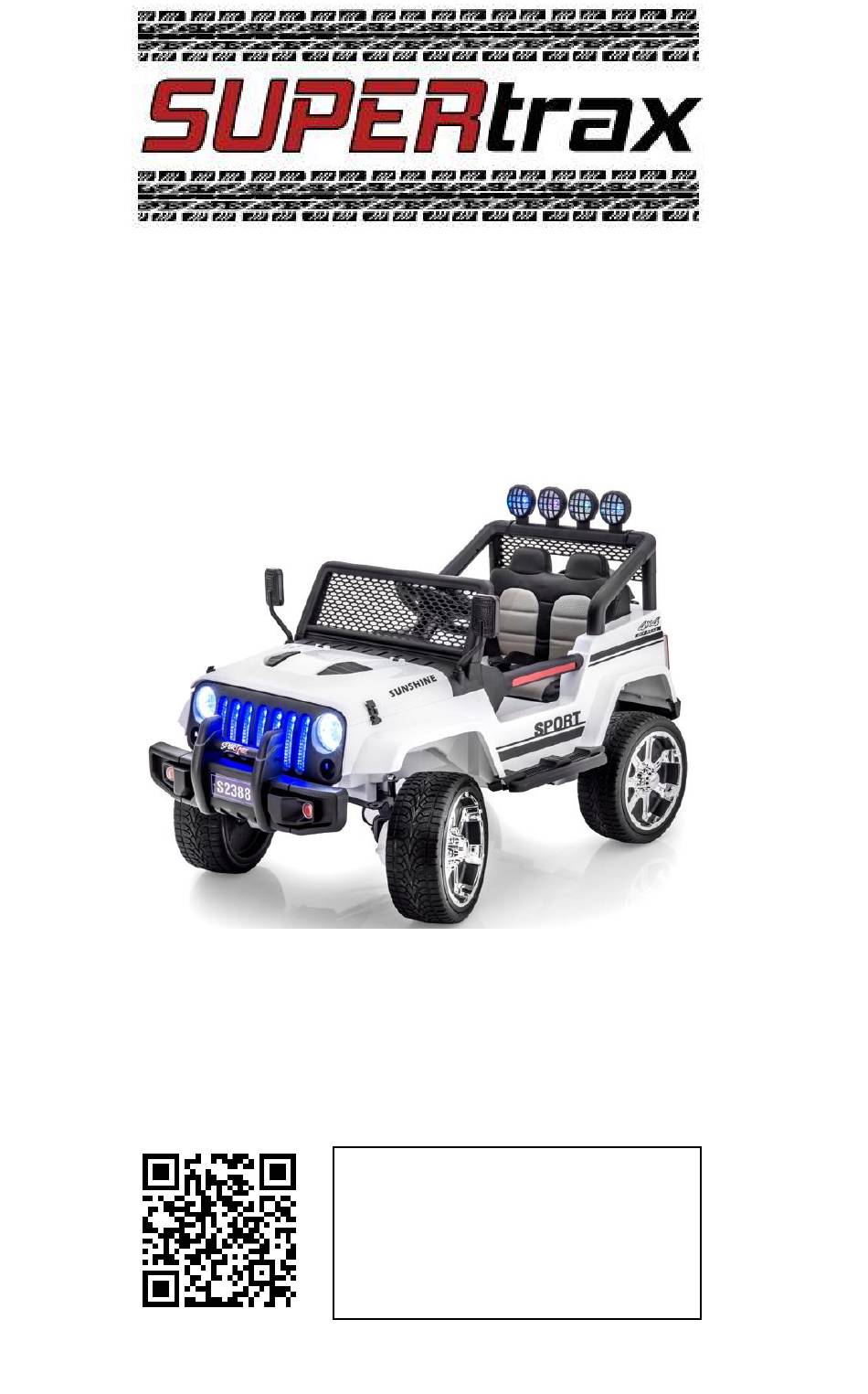

Rancher
Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to
read and follow all the steps during assembly to ensure proper
operation and safety of the child. Please keep this manual for
future reference.
Scan this QR Code
to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rancher and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supertrax Rancher

Summary of Contents for Supertrax Rancher

  • Page 1 Rancher Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.

  • Page 2: Specifications

    SPECIFICATIONS: Battery Type: 12V10AH Avg. Speed: 2 – 5 MPH Age Range: 2 – 6 Years Charging time: 8-12 hrs – Minimum 1 Charge per month Max. Weight: 70 lbs Avg. Use Time: 48-90 Minutes (depending on use) Product Size: 51”L x 30”W x 25”H Remote Battery: 2 - AAA (not...

  • Page 3: Parts List

    PARTS LIST Name Name Seat Spare Tire Storage Steering Wheel Windshield Wheels Mirrors Wheel Cover Charger Front Bumper Wheel Nut Wrench Steering axle Screws, Nuts, & Washers assembly Searchlight kit All assembly videos can be found on YouTube under SPORTrax...
  • Page 4 1: Install Front Steering Axle Assembly: Turn car upside down. Insert steering rod, into the steering motor located in the center on the car, towards the front. Make sure steering rod is aligned with the motor, and coming out the dashboard.
  • Page 5 3: Installation of the spare tire storage and searchlight assembly: Turn the car right side up. Install spare tire storage box onto the rear of the body. Secure with 1 screw at top of the box. Connect wire connector on end of light bar to corresponding connector from side bracket.
  • Page 6 5. Installation of seat, windshield, and mirrors: Place the seat into position and secure with 2 - screws. If you would like to use the seat belt, make sure they are hanging out of vehicle before installing seat. Put the windshield into place and push down until you hear it click into place.

  • Page 7: Remote Control Function

    Remote Control Function Remote Control Instructions: For the first time use of remote control or after replacing the battery, you need to sync the remote to the car. a) Install the remote-control batteries (AA not included). b) Hold the frequency button (Large button at top of remote) 2-4 seconds, the Low speed LED light should be flashing.

  • Page 8: Charging The Battery

    Charging the battery: The charging port is located on the right side of the dashboard under the power button. Plug the charger into the charging port first, then plug the charger into a wall outlet. Please Note: As a safety precaution and to avoid damage to the charger, the car will not power up while charger port is plugged into the car.

  • Page 9: Main Functions

    Main Functions 1. Music Button: Press these buttons to start the onboard music 2. Power Button: Turn vehicle on and off 3. Back Button: press to go back to previous song, hold button to increase volume 4. Forward Button: Press to go to next song, hold button to decrease volume 5.
  • Page 10 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 11: General Maintenance

    GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug,. Also check that all screws are tightened throughout the car. In the event of such damage, the toy must not be used until that damage is repaired or replaced.

  • Page 12: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or wires Re-connect the battery are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
