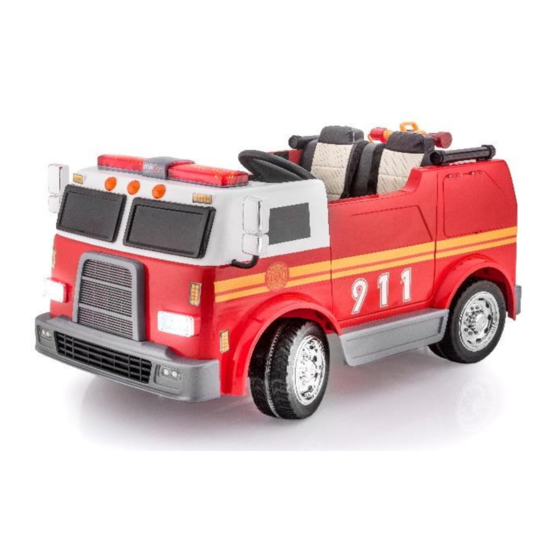

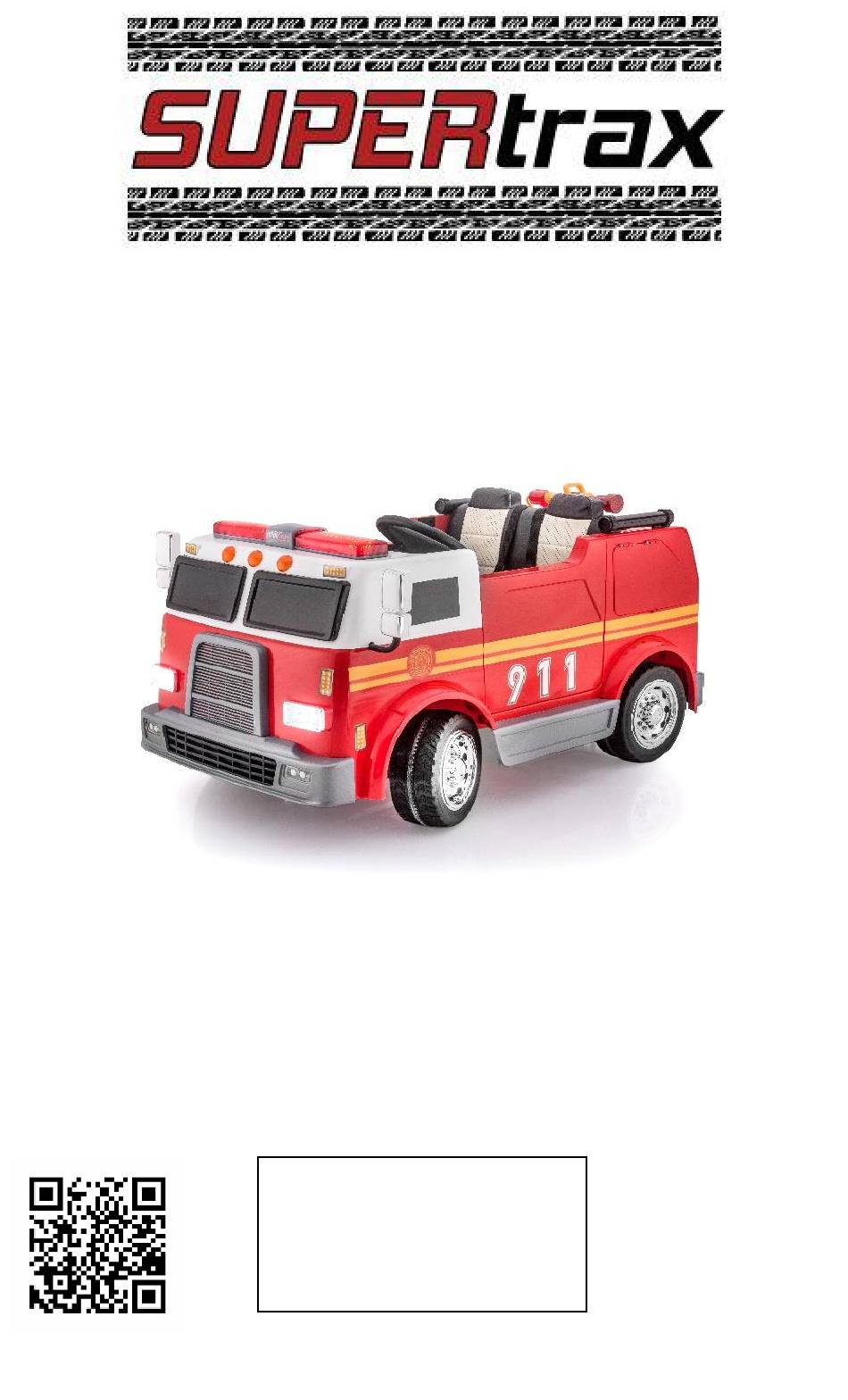

Kids Ride On Big Rig Rescue
Assembly and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all the steps during assembly to ensure proper operation and
safety of the child. Please keep this manual for future reference.
Scan this QR
Code to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kids Ride On Big Rig Rescue and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supertrax Kids Ride On Big Rig Rescue

Summary of Contents for Supertrax Kids Ride On Big Rig Rescue

  • Page 1 Kids Ride On Big Rig Rescue Assembly and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.
  • Page 2 WARNING · Assembly of car and charging · WARNING!! NOT TO BE USED ON of battery is only to be done by an STREETS OR IN TRAFFIC. adult. · Never modify or tamper with · Please check the vehicle regularly for any part of the electric circuit any loose parts or wires to ensure safety system.

  • Page 3: Specifications

    SPECIFICATIONS: Battery Type: 2 - 12V7AH Avg. Speed: Approx. : 2 – 5 MPH Age Range: 3 – 7 Years Charging 8-12 hrs-MAXIMUM time: Min. 1 Charge/month Max. Weight: 75 lbs Avg. Use 60-180 Minutes Time: (depending on use) IMPORTANT! If the charger is plugged into the charging port the car will not power on, regardless if the charger is plugged into the wall outlet or not.

  • Page 4: Parts List

    PARTS LIST Name Name Tires (4) Body (1) Seat (1) Mirror (2) Gear Box (4) Hubcap (4) *2 are pre-installed on front axle Steering Wheel (1) Charger (1) Screws/washer package (1) Remote Control (1) Instruction Manual (1) Fire Water Gun (1) Safety Bar Rails (2) Intercom (1) Sticker (1 set)
  • Page 5 For ease of applying stickers, please install stickers on vehicle and parts prior to assembly as per diagram included below.
  • Page 6 Assembly of Front Wheels 1. Slide front wheels onto front axle, ensure bushing is in place and place washer and lug nut on axle. Tighten down but DO NOT over tighten to prevent pre-mature motor failure. After lug nut is tightened, place hubcaps on with the tabs aligned and snap into place.
  • Page 7 Install the Seat 3. Slide the seat into place and install with 2 – 4x10mm screws on front of the seat. Steering Wheel Column 4. Connect the steering wheel plug to the corresponding plug from the steering wheel and push all the wires down. Align steering wheel with the steer mount and push down until it locks into place.
  • Page 8 Emergency Light Bar 5. Snap the emergency lights into place on the top of the rig toward the front. Connect wiring and test the lights. Place the emergency light cover over the wiring in the middle of the lights. Side Mirrors 6.
  • Page 9 Microphone 7. Install the microphone. Hang the mic on the dashboard and push the connector into the slot. (This step may already be completed) 8. Install safety bar rails. Insert directly on both sides of seat 9. Install fire hose water tank. Hang the tank on the back of the vehicle using provided hooks and then insert water gun into the slots provided.
  • Page 10 Remote Control Instructions: For the first time use of remote control or after replacing the battery, you need to sync the remote to the car. a) Install the remote-control batteries (AAA not included). b) Hold down forward and reverse buttons 2-4 seconds. The Low speed LED light should be flashing.

  • Page 11: Charging The Battery

    CHARGING THE BATTERY: The charging port is located under the hood of the vehicle. Slide the hood forward to expose charging port. Plug the charger into the charging port first, and then plug the charger into a wall outlet. Please Note: As a safety precaution and to avoid damage to the charger, the car will not power up while charger port is plugged into the car.
  • Page 12 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 13: General Maintenance

    GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug, Also check that all screws are tightened throughout the car.

  • Page 14: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or Re-connect the battery wires are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
  • Page 15 approximately one minute If you are unable to solve a problem, please feel free to contact us. Phone: 402-477-0541 or Email: customerservice@rollinghillstrading.com...
