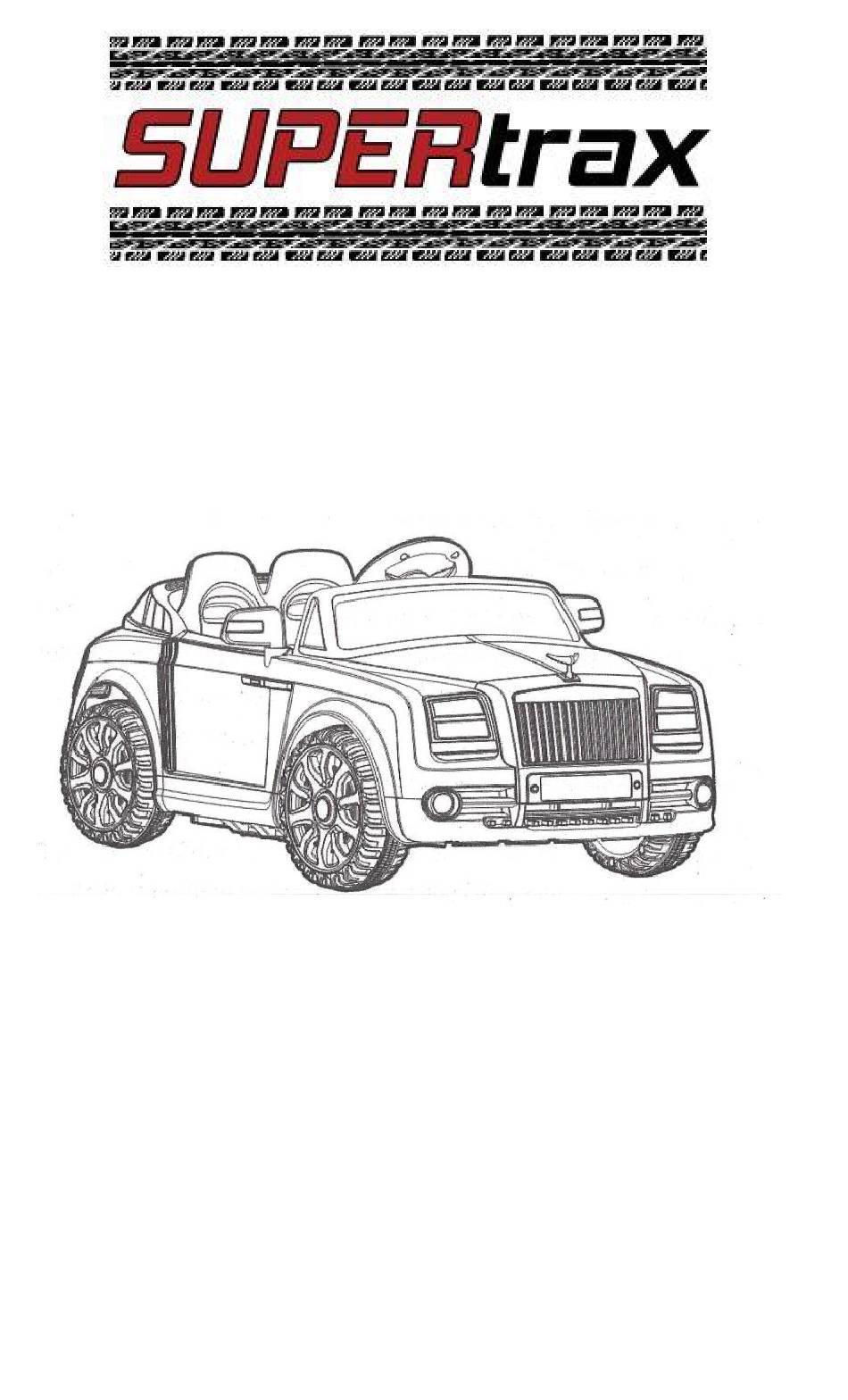

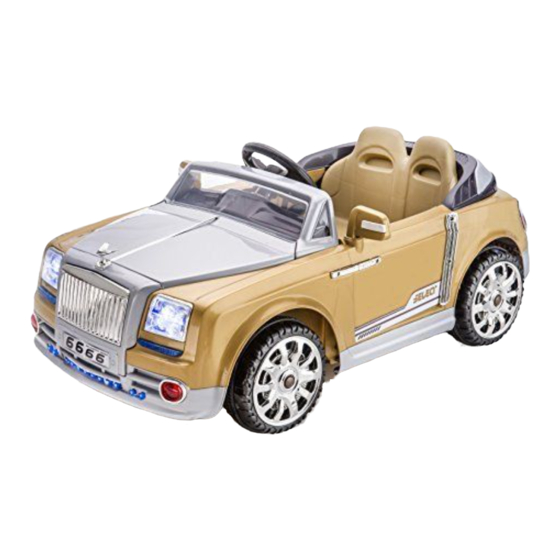

- Page 1 Rolls Royce Style Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all of the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.
- Page 2 Scan this QR Code to view the Rolls Royce Assembly Video...
-
Page 3: Specifications
SPECIFICATIONS: Car Type: Rolls Royce Style Battery Type: 6V7AH Electric Motor: 12V30W(Drive) 12V8W(Steering) Age Range: 2 – 5 Years Max. Weight: 65 lbs Product Size: 50”L x 34”W x 25”H Avg. Speed: 2 – 3 MPH Charging time: 8-12 hrs Avg. - Page 4 Car Body Tail Pipe Steering Bolt Washer Rear Spoiler Rearview Mirrors Bushing Seat Front Windshield Wheel Seat Screw Hood Ornament Seat Steering Wheel Tire Quick Connect Steering Screw ASSEMBLY INSTRUCTIONS: Installing the Front Wheels: Prior to installing the front wheels, locate the brown wheel cap found on both ends of the front axle, press down on the button located within the center of the wheel cap and hold to remove the wheel cap from axle.
- Page 5 Installing Steering Wheel: Locate the music/horn wire at the end of the steering wheel, and connect it to the power wire located on the steering rod. Once wires are connected, remove screw and nut located on the steering wheel column. Once screw and nut are removed, align hole on steering column with the hole located on the steering rod.
- Page 6 Installing Rearview Mirrors: Fit the tabs on the bottom of the Rearview Mirrors into the slots on the side of the vehicle body towards the front of the door. Push down until you hear a click. Installing the Rear Spoiler: Locate the wire at the bottom of the rear spoiler. Feed the wire through the open slot at the top of the rear of the car and connect the wire to any of the 4 white slots located on the white power board.
- Page 7 Hood Ornament: Insert the tabs located at the bottom of the hood ornament into the slots located at the front of the vehicle hood. Charging the battery: The charging port is located on the dash to the right of the steering wheel.
-
Page 8: Troubleshooting Guide
no sound is heard, turn up the volume) To allow child to operate the car, remote control/manual switch has to be set to the manual position. To move the car forward, forward/reverse switch has to be set to the forward position and to move the car backward, the switch will need to be set to the reverse position. -
Page 9: Important Reminders
IMPORTANT REMINDERS: • Prior to first use of this electrical vehicle, please charge the battery for a minimum of 12 hours. Failure to complete this step will cause permanent damage to the battery. • Do not operate on streets, roads, steep slopes, through ditches or in any dangerous areas.
