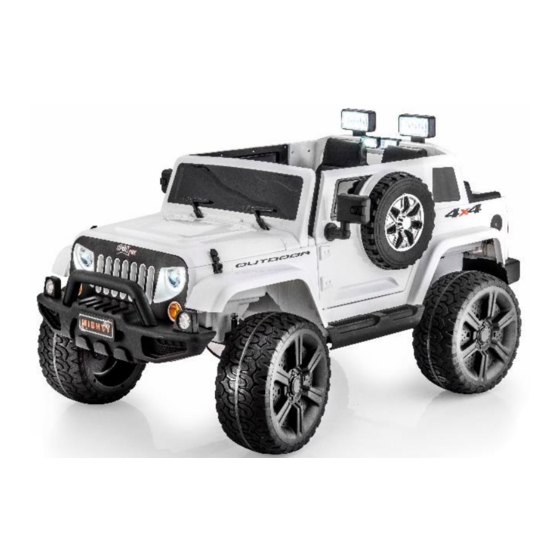

Thar
Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to
read and follow all the steps during assembly to ensure proper
operation and safety of the child. Please keep this manual for
future reference.
Scan this QR Code
to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thar and is the answer not in the manual?

Questions and answers

Related Manuals for Supertrax Thar

Summary of Contents for Supertrax Thar

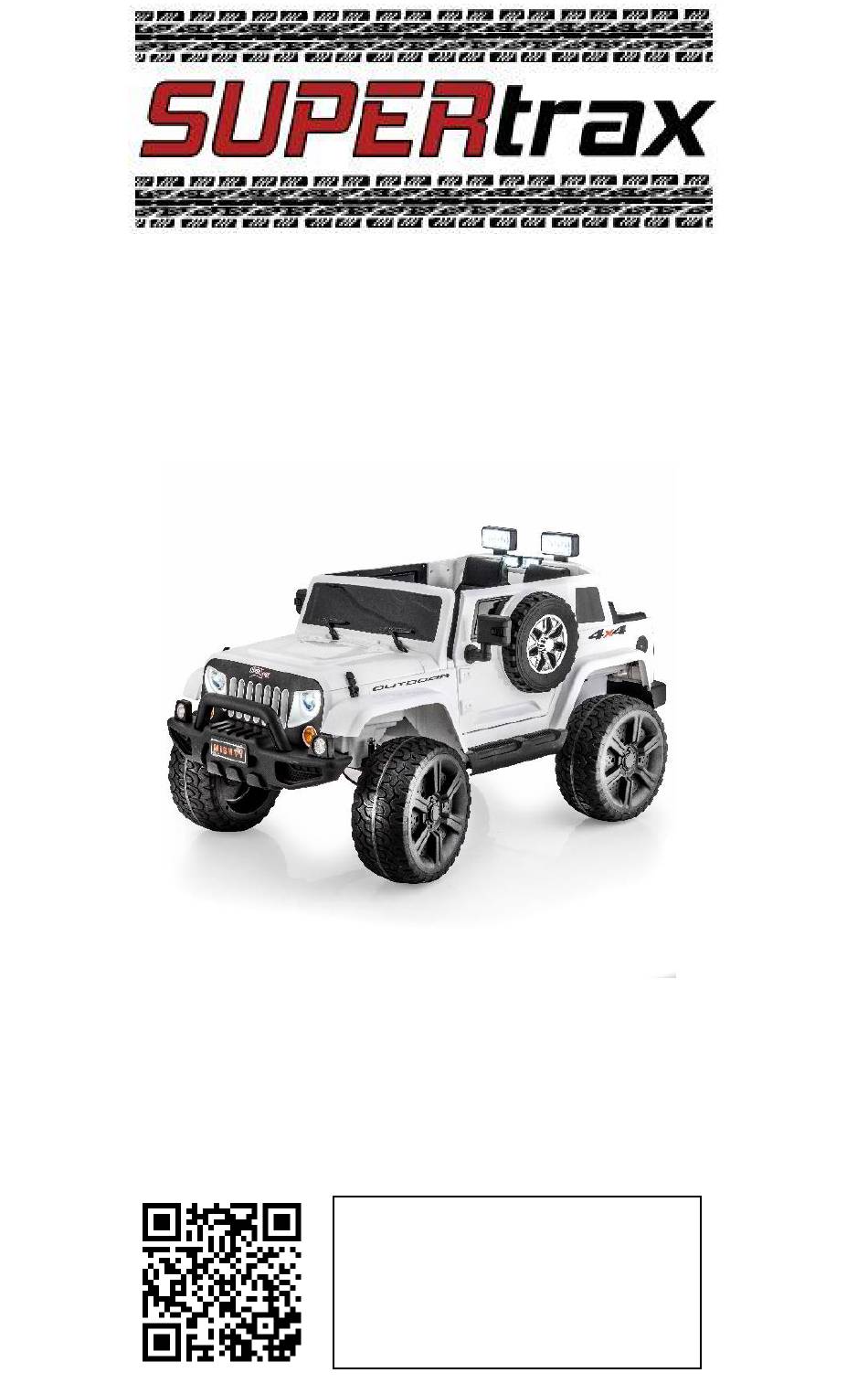

  • Page 1 Thar Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.

  • Page 2: Specifications

    SPECIFICATIONS: Battery Type: 1 - 12V7AH Avg. Speed: Approx.: 2 – 5 MPH Age Range: 2 – 6 Years Charging time: 8-12 hrs -MAXIMUM Minimum 1 Charge per month Max. Weight: 70 lbs. Avg. Use Time: 48-90 Minutes (depending on use) Product Size: 51”L x 30”W x 25”H Remote Battery:...

  • Page 3: Parts List

    PARTS LIST Name Name Seat Jeep Doors Steering Wheel Windshield Wheels Charger Axle Blocks Wheel Nut Wrench Light Bar Bag of Hardware Remote Side Mirrors Hand Rails All assembly videos can be found on YouTube under “SPORTrax” 1: Install rear axle assembly: Disconnect the 2 rear wheel motors from the vehicle.
  • Page 4 2: Installation of the wheels: Locate the 4 hub adaptors and screw adaptors into back of each tire with supplied screws. (you will need 4 screws per tire, total 16 screws) Once hub adaptors are installed, slide tires onto axle, and align with gear box.
  • Page 5 4: Installation of the seat: Locate the seat of the vehicle. Make sure the seat belt is not covered by the seat. Install seat by sliding tabs into the body of the vehicle, and secure with 2 screws. 5. Installation of doors and windshield: Slide doors into place, and secure them to body of the vehicle with 2 screws.
  • Page 6 6. Installation of light Bar, mirrors, and handrails: Install 4 AA batteries into the light bar. Check to make sure it is operating correctly before installing it. Snap into place on the body of vehicle. Locate 2 rear black trim pieces (these are the hand rails), and snap into place behind the light bar.
  • Page 7 8. Functions on the vehicle: A) On/off button located to the left of the steering wheel – round red button. B) Forward/reverse switch to the right of steering wheel – black flip switch (if switch is in the middle position, the car is in neutral and will not move) C) Sound control: 1.

  • Page 8: Charging The Battery

    Charging the battery: The charging port is located under the seat of the vehicle. Plug the charger into the charging port first, then plug the charger into a wall outlet. Please Note: As a safety precaution and to avoid damage to the charger, the car will not power up while charger is plugged into the charging port of the car.

  • Page 9: Remote Control Function

    Remote Control Function Remote Control Instructions: It is necessary for the remote to sync to the car prior to first use and after batteries are replaced. Follow steps below to sync the remote control to your car. A) Install the batteries into the remote control (AA not included).
  • Page 10 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 11: General Maintenance

    GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug,. Also check that all screws are tightened throughout the car. In the event of such damage, the toy must not be used until that damage is repaired or replaced.

  • Page 12: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or wires Re-connect the battery are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
