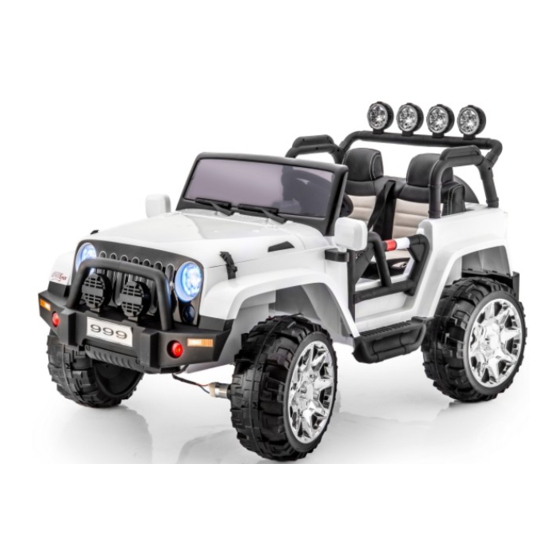

Thar XL
Kids Ride on Car

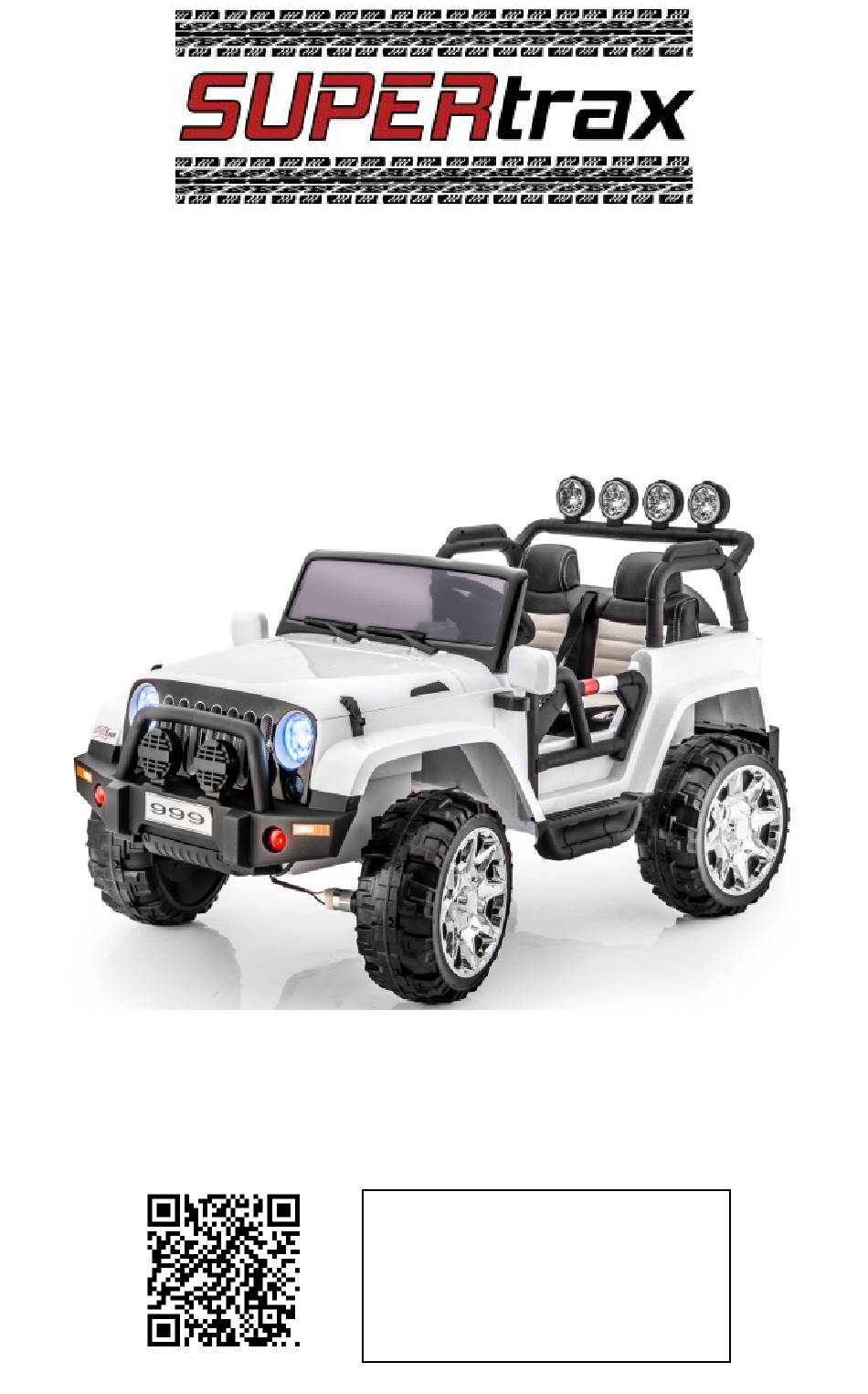

Assembly and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all the steps during assembly to ensure proper operation and safety of
the child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thar XL and is the answer not in the manual?

Questions and answers

Related Manuals for Supertrax Thar XL

Summary of Contents for Supertrax Thar XL

  • Page 1 Thar XL Kids Ride on Car Assembly and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.

  • Page 2: Specifications

    SPECIFICATIONS: Battery 2 - 12V10AH Avg. Speed: Approx. : 2 – 5 MPH Type: Age Range: 2 – 7 Years Charging time: 8-12 hrs – MAXIMUM Minimum 1 Charge per month Max. 80 lbs Avg. Use Time: 48-90 Minutes Weight: (depending on use) Fuse Interior 3AMP...

  • Page 3: Parts List

    Hub Adapter Light Bar Brackets Wheel Bushing Light Bar Connectors Wheel Light Bar Washer Screw Rear Axle Nut Seat Wheel Rims Faux Spare Tire Steering Wheel Front Axle Steering Wheel Bolt All assembly videos can be found on YouTube under SUPERtrax...
  • Page 4 ASSEMBLY INSTRUCTIONS: 1: Rear Tire Assembly: On the inside and at the rear of the vehicle you will find two motors. First, unplug and remove the driver’s side rear motor. NOTE: If the motors happen to get reversed in the assembly process, this will make the vehicle drive opposite of what is intended.
  • Page 5 2: Front Tire Assembly: Get one of the remaining 2 wheels. Add a wheel bushing to the inside of the wheel and screw hub adaptor to the inside of the wheel with 4 screws. Slide the wheel onto the driver’s side of the front axle and align the hub adaptor with the motor grooves.
  • Page 6 3: Installation of Steering Wheel: Locate the steering wheel & remove the nut and bolt from the base. Connect the steering wheel wires to wires coming out of the steering column on the vehicle. Slide the steering wheel into the steering column and align the wheel so that the bolt will go back through.
  • Page 7 6. Installation of Rear Light Bar Assembly: Get part #15 (rear light bar brackets) & and press down into body of vehicle. NOTE: The side of the brackets with multiple screws face the inside of the vehicle. Attach part #16 (light bar connectors) to the rear brackets. Slide the light bar into the light bar connectors and slide into place.

  • Page 8: Charging The Battery

    CHARGING THE BATTERY: The charging port is located under the gear selector lever and 6 inches to the right of the gas pedal. Plug the charger into the charging port first, and then plug the charger into a wall outlet. *******!!!!DO NOT LEAVE THE CAR ATTACHED TO THE CHARGER ANY LONGER THAN 12 HOURS TO AVOID DAMAGE!!!!!!******** Please Note: As a safety precaution and to avoid damage to the charger, the car will...
  • Page 9 Main Functions Music Button: Press these buttons to start the pre-installed music. Power Button: Turns vehicle on and off. Back Button: Press to go back to previous song, hold button to increase volume. Forward Button: Press to go to next song, hold button to decrease volume. Pause Button: Press button to pause music, press button again to restart music.
  • Page 10 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 11: General Maintenance

    GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug,. Also check that all screws are tightened throughout the car.

  • Page 12: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or wires Re-connect the battery are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
