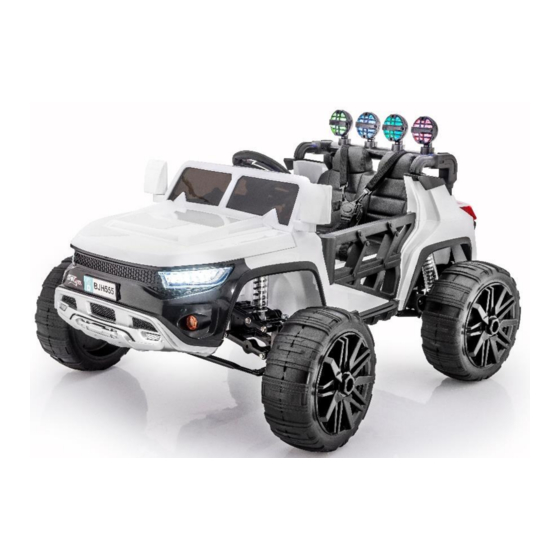

WideTrack
Kids Ride on Car
Assembly and Operation Instructions
Please read this instruction manual carefully. It is important to
read and follow all the steps during assembly to ensure proper
operation and safety of the child. Please keep this manual for
future reference.
Scan this QR Code
to view the
Assembly Video

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WideTrack and is the answer not in the manual?

Questions and answers

Related Manuals for Supertrax WideTrack

Summary of Contents for Supertrax WideTrack

  • Page 1 WideTrack Kids Ride on Car Assembly and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference.

  • Page 2: Specifications

    SPECIFICATIONS: Battery Type: 2 - 12V7AH Avg. Speed: Approx. : 2 – 5 MPH Age Range: 2 – 7 Years Charging time: 8-12 hrs – Minimum 1 Charge per month Max. Weight: 70 lbs Avg. Use Time: 48-90 Minutes (depending on use) IMPORTANT! •...

  • Page 3: Parts List

    PARTS LIST Name Name Tires Steering Wheel Front Axle Windshield Back Axle Light Bar Brackets Seat Light Bar All assembly videos can be found on YouTube under SPORTrax...
  • Page 4 ASSEMBLY INSTRUCTIONS: 1: Front Axle & Tire Assembly: Follow diagram 1 by sliding front steering rack/axle into place & securing it from the top using a washer & lock nut. Once the steering rack/axle is in place, install a washer onto left and right front axles.
  • Page 5 2: Back Axle & Tire Assembly: Disconnect & remove the rear motors from the vehicle. Slide rear axle into place. Slide the rear motors onto axle with the motor and connected wires are toward the inside of the car. Need to slide the motor and wires through the round opening in the motor support bracket mounted on the axle.
  • Page 6 3: Installation of Seat: Install seat in seat location. Secure with 2 screws (provided) to secure the seat in place. 4: Installation of Steering Wheel: Remove the nut & bolt from the steering wheel column. Connect steering wheel wires according to diagram. Slide the steering wheel onto the steering shaft &...
  • Page 7 5. Installation of Windshield: Align the windshield with the vehicle & push into place. 6. Installation of Rear Light Bar Assembly: Attach the 2 light bar corners to the light bar. Locate the light bar corner with the power wire & hook it to the corresponding power connector coming out of the car body.
  • Page 8 SYNCING THE REMOTE CONTROL: Remote Control Instructions: For the first time use of remote control or after replacing the battery, you need to sync the remote to the car. a) Install the remote-control batteries (AAA not included). b) Hold down forward and reverse buttons 2-4 seconds. The Low speed LED light should be flashing.

  • Page 9: Charging The Battery

    CHARGING THE BATTERY: The charging port is located under the hood of the vehicle. Slide the hood forward to expose charging port. Plug the charger into the charging port first, and then plug the charger into a wall outlet. Please Note: As a safety precaution and to avoid damage to the charger, the car will not power up while charger port is plugged into the car.
  • Page 10 WARNING: - Use only the rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or charger with another brand. Using another battery or charger may cause damage. - NEVER modify the electric circuit system. Tampering with the electric system may cause permanent damage to the system.

  • Page 11: General Maintenance

    GENERAL MAINTENANCE: It is the parent’s responsibility to check main parts of the toy before using. Regularly examine the car for potential hazard, such as damage to the battery, charger, cable or cord, and plug,. Also check that all screws are tightened throughout the car. In the event of such damage, the toy must not be used until that damage is repaired or replaced.

  • Page 12: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE: Problem Possible Cause Possible Solutions Car will not move Battery voltage is low. Charge the battery Battery connector or wires Re-connect the battery are loose. connector to the car Battery is damaged or Replace battery dead. Electrical box or motor is Replace motor damaged The battery will not...
