PROLiNK MASTER II Series User Manual page 14

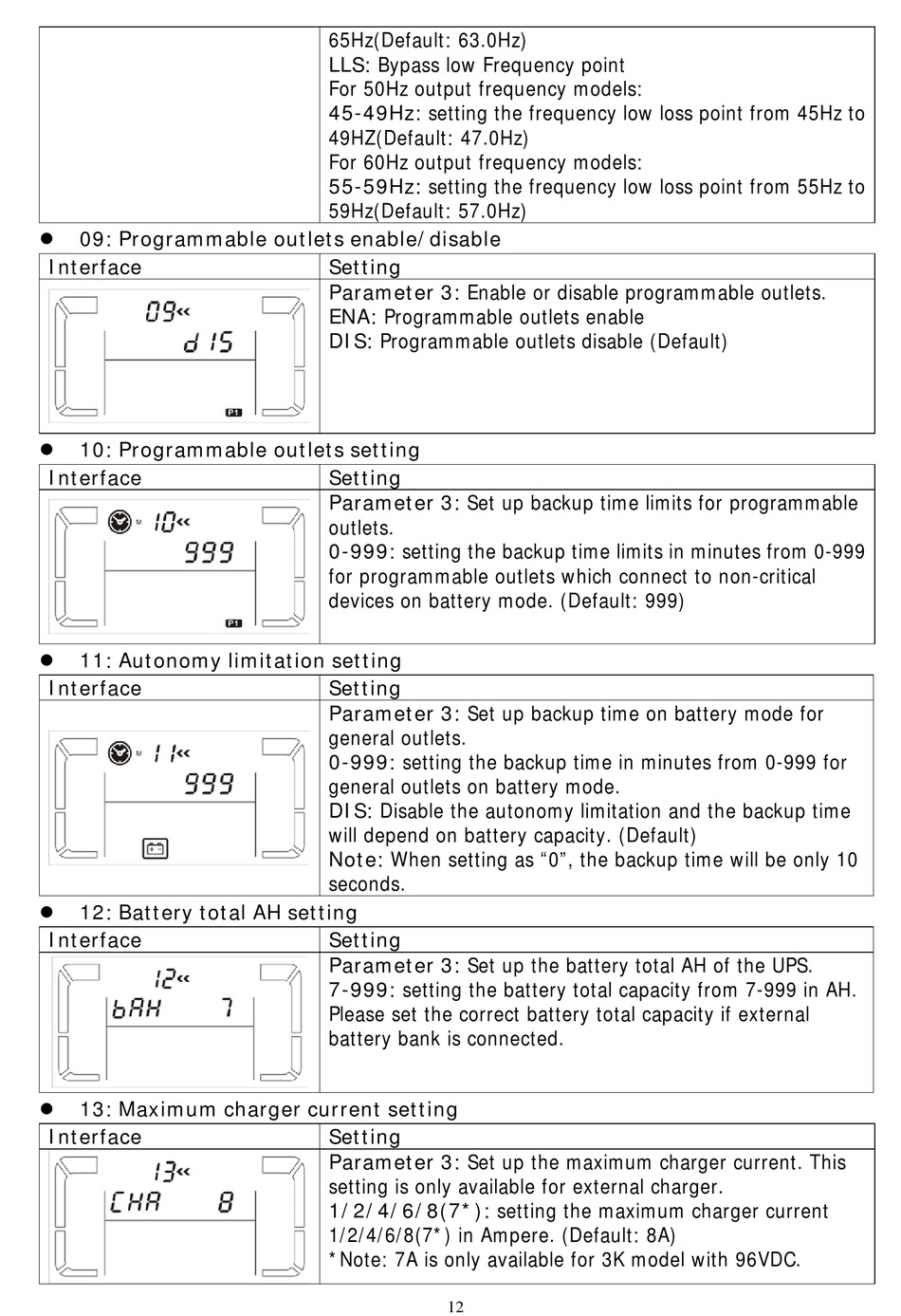

09: Programmable outlets enable/disable

Interface
10: Programmable outlets setting

Interface
11: Autonomy limitation setting

Interface
12: Battery total AH setting

Interface
13: Maximum charger current setting

Interface
65Hz(Default: 63.0Hz)
LLS: Bypass low Frequency point
For 50Hz output frequency models:
45-49Hz: setting the frequency low loss point from 45Hz to
49HZ(Default: 47.0Hz)
For 60Hz output frequency models:
55-59Hz: setting the frequency low loss point from 55Hz to
59Hz(Default: 57.0Hz)
Setting
Parameter 3: Enable or disable programmable outlets.
ENA: Programmable outlets enable
DIS: Programmable outlets disable (Default)
Setting
Parameter 3: Set up backup time limits for programmable
outlets.
0-999: setting the backup time limits in minutes from 0-999
for programmable outlets which connect to non-critical
devices on battery mode. (Default: 999)
Setting
Parameter 3: Set up backup time on battery mode for
general outlets.
0-999: setting the backup time in minutes from 0-999 for
general outlets on battery mode.
DIS: Disable the autonomy limitation and the backup time
will depend on battery capacity. (Default)
Note: When setting as "0", the backup time will be only 10
seconds.
Setting
Parameter 3: Set up the battery total AH of the UPS.
7-999: setting the battery total capacity from 7-999 in AH.
Please set the correct battery total capacity if external
battery bank is connected.
Setting
Parameter 3: Set up the maximum charger current. This
setting is only available for external charger.
1/2/4/6/8(7*): setting the maximum charger current
1/2/4/6/8(7*) in Ampere. (Default: 8A)
*Note: 7A is only available for 3K model with 96VDC.
12
