Device description

12.4 Display resolution

The resolution is set upon delivery. It depends on the device and is not to be
changed by the user.

12.5 VEP 30.6DPN IP 54 device

The VEP 30.6DPN device has the degree of protection IP 54. Additionally, the de-
vice is provided with three keys and one E-STOP button, which are not connec-
ted electrically to the device.

12.5.1 Housing and housing cover

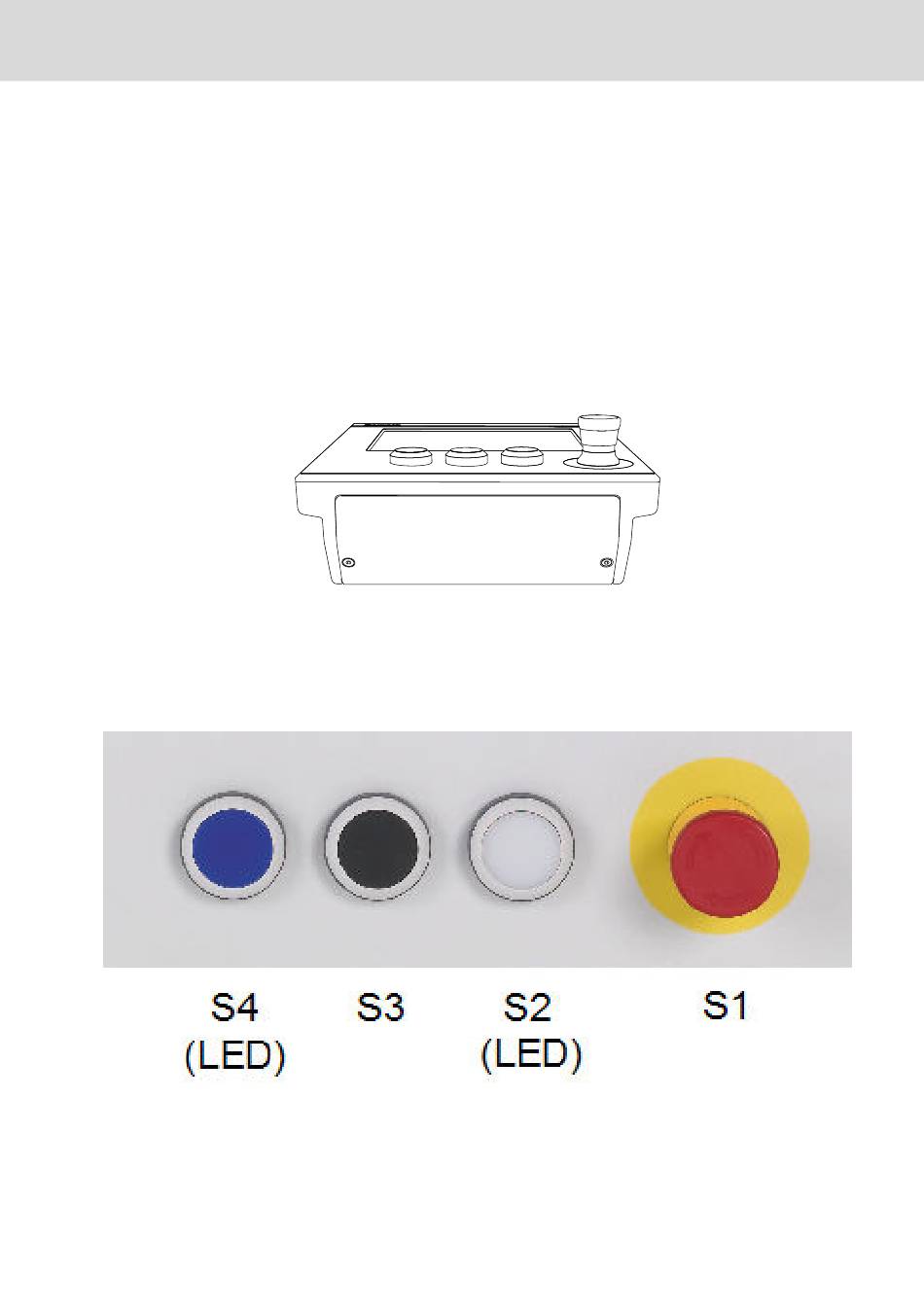

Fig. 12-3: Housing and housing cover

12.5.2 Keypad

The VEP 30.6 DPN is provided with a start, a stop and an E-STOP button.
Fig. 12-4: Keypad
