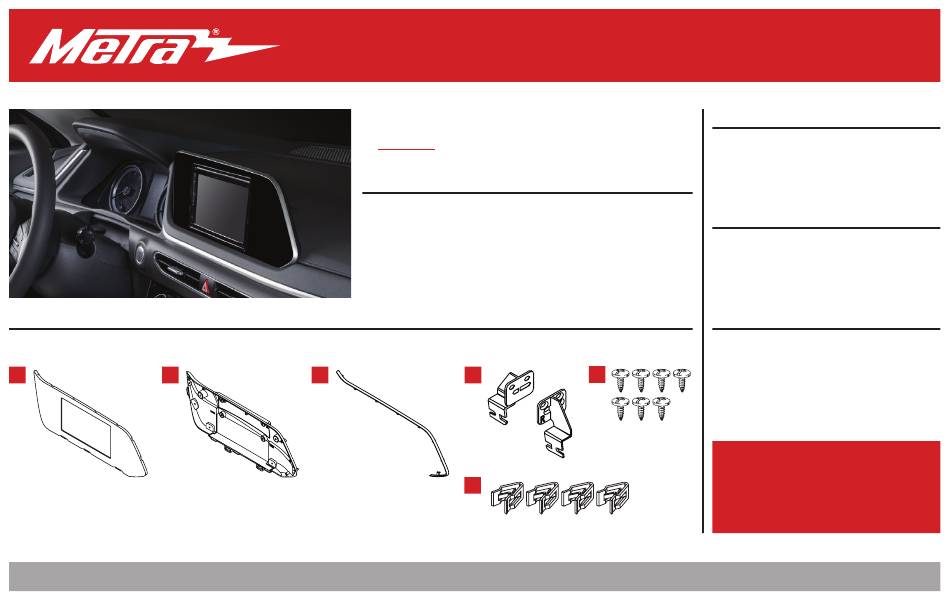

KIT COMPONENTS

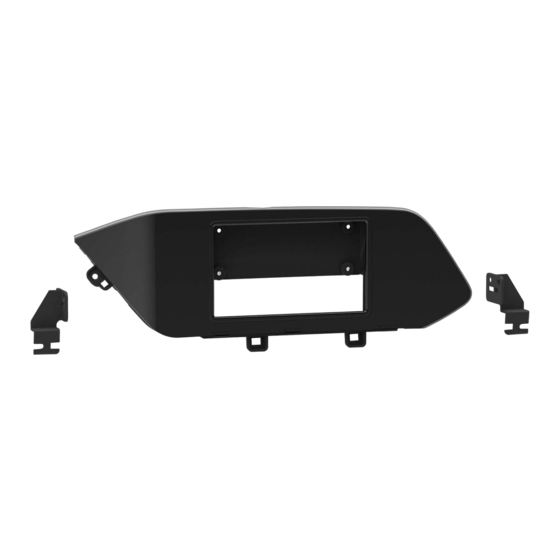

• A) Front panel • B) Back panel • C) Brackets • D) Silver trim • E) #8 x 3/8" Phillips screws (7) • F) Panel clips (4)
A
B
Metra. The World's Best Kits.
®
Hyundai Sonata
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for Pioneer modular 6.8" radios like the
DMH-C2550NEX and DMH-C2500NEX.
†† Refer to the radio manufacturer for current models
• Painted to match factory with a gloss black face, bright silver trim,
and matte black back plate.
Note – Pioneer extension cable required for installation. Sold separately.
C
MetraOnline.com
2020-Up
E
D
F
© COPYRIGHT 2021 METRA ELECTRONICS CORPORATION
107-HY1
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: 40-KI10
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
Attention!
With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
REV. 9/16/21 INST107-HY1
Advertisement
Related Manuals for Metra Electronics 107-HY1
Summary of Contents for Metra Electronics 107-HY1
- Page 1 Ensure that all installation connections are secure before cycling the ignition to test this product. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 9/16/21 INST107-HY1...
- Page 2 DASH DISASSEMBLY 1. Unclip the trim behind the radio and 4. Remove (2) Phillips screws securing the remove (2) Phillips screws exposed. a/c vent panel, then unclip, unplug, and (Figures A,B) remove. (Figure E) 5. Remove (3) screws securing the radio. 2.
- Page 3 KIT ASSEMBLY Pioneer Modular DDIN radio provision 5. Attach the (4) panel clips to the back panel (Figure B) Note: For steps 1 and 2, reference the installation manual provided with the radio 6. Secure the radio screen display to the back panel using (4) of the screws for which hardware to use.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 9/16/21 INST107-HY1...
