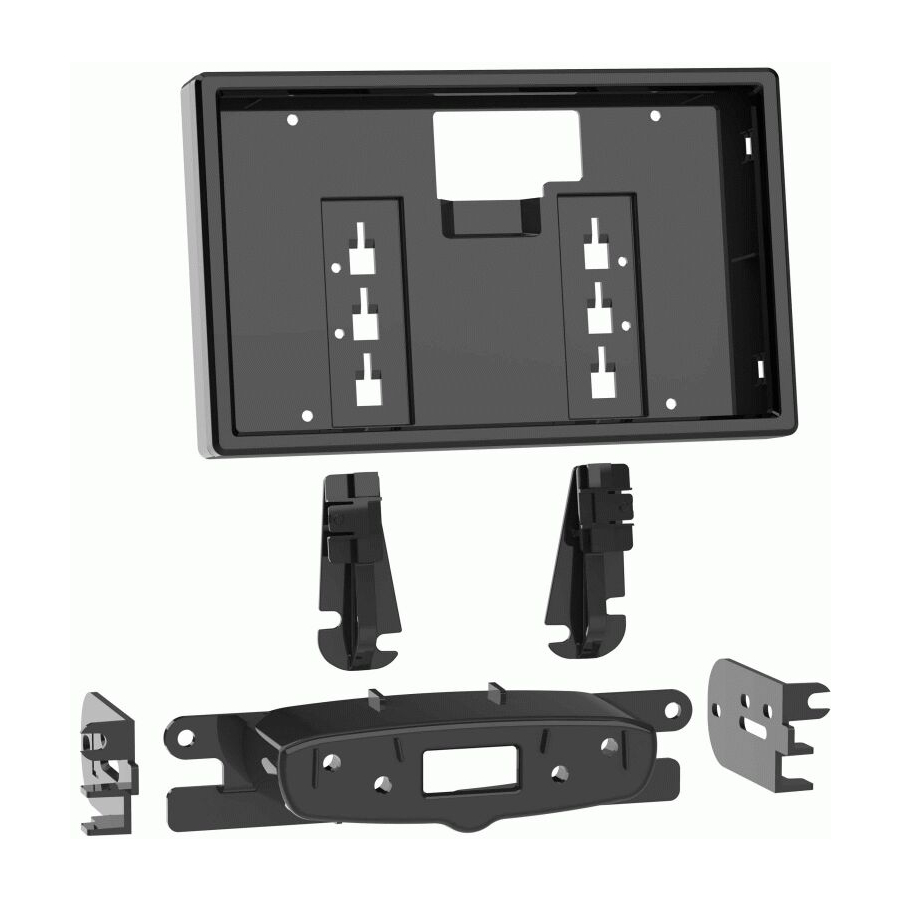

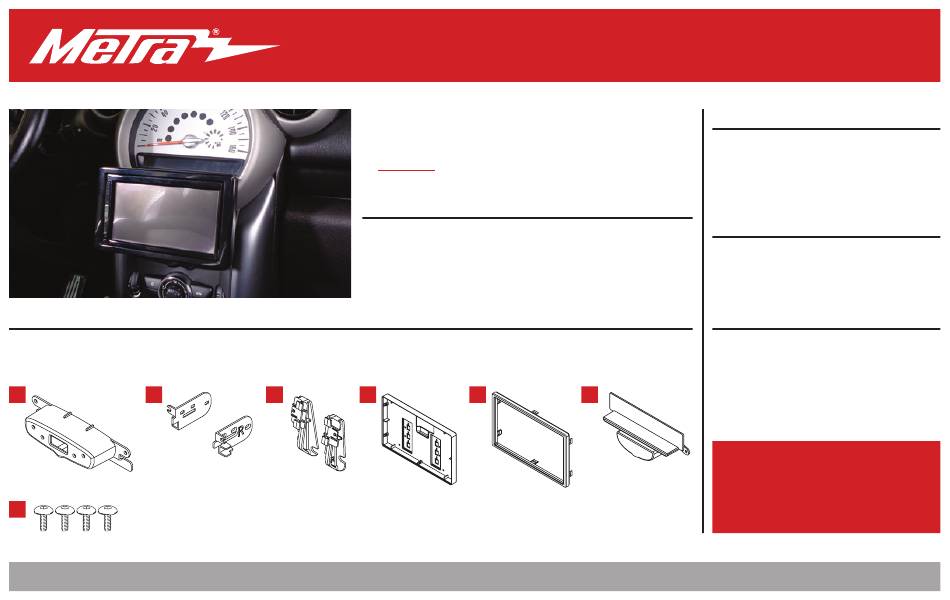

KIT COMPONENTS
• A) Assembly mount • B) Radio chassis brackets • C) Display brackets • D) Display housing • E) Display Trim ring • F) Block out panel
• G) 4mm Allen head Screws (4)
A
B
G
Metra. The World's Best Kits.
®
Mini Countryman & Paceman
(without factory NAV)
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for the Pioneer 8" modular radio DMH-C5500NEX.
(Refer to the radio manufacturer for current models)
• Blank-out included for factory radio controls removed from upper panel
C
D
MetraOnline.com
2011-2016
E
F
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
108-MI1
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-6
Kit Preparation .......................................................6
Kit Assembly ..........................................................7
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: LC-BMRC-01
Antenna Adapter: 40-EU10
TOOLS REQUIRED
• 10mm socket set • Lots of different Torx
• Allen head driver • Cutting tool
• Panel removal tool • Phillips screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 12/8/20 INST108-MI1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 108-MI1
Summary of Contents for Metra Electronics 108-MI1
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/8/20 INST108-MI1...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the trim panel to the right of the glove box above the kick panel. (Figure A) 2. Unclip and remove the passenger side kick panel. (Figure B) 3. Remove (2) Torx screws (facing up) from the panel below the glove box then unclip the front edge of the panel and let hang.
- Page 3 DASH DISASSEMBLY (CONT.) 4. Remove (7) Torx screws (2 on bottom, 5. Unclip and remove the panel to the left 3 on top edge with door open, and 2 of the driver’s side knee bolster panel. from right side) securing the glove box (Figure F) then unclip and remove the glove box 6.
- Page 4 DASH DISASSEMBLY (CONT.) 7. Pull the rubber cover in the center 9. Remove (1) Torx screw from the trim console back to reveal (1) Torx screw on panel in front of the shifter trim panel shifter trim panel. (Figure H) then unclip and remove the panel.
- Page 5 DASH DISASSEMBLY (CONT.) 11. Unclip and remove the trim panel 13. Remove (7) Torx screws securing surrounding the speedometer and the sub trim panel surrounding the a/c vents. (Figure L) speedometer and a/c vents then unclip and remove the panel. (Figure N) 12.
- Page 6 DASH DISASSEMBLY KIT PREPARATION (CONT.) 15. Push the two clips in on the back of the 16. Remove (4) Torx screws securing the speedometer and lift up carefully to radio controls, then remove the entire separate the chassis and speedometer, assembly from the speedometer.
- Page 7 KIT ASSEMBLY Note: For steps 2 and 5, reference the 4. Route the RGB display cable from the installation manual provided with the radio radio chassis, through the opening in the assembly mount. for which hardware to use. The display screen and radio chassis use two different 5.
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/8/20 INST108-MI1...
