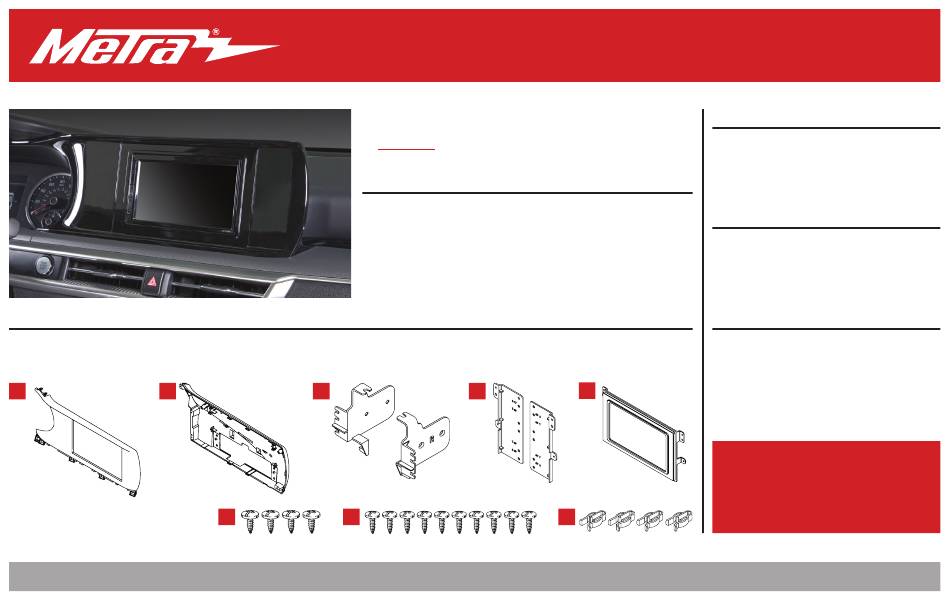

KIT COMPONENTS
• A) Front panel • B) Back panel • C) Radio chassis brackets • D) Radio display brackets • E) Display trim panel • F) #8 x 3/8" Phillips screws (4)
• G) #4 x 3/8" Phillips screws (10) • H) Panel clips (4)
A
B
Metra. The World's Best Kits.
®
Kia K5
Visit
MetraOnline.com
specific applications
KIT FEATURES
• Designed specifically for Pioneer modular 6.8" radios like the
DMH-C2550NEX and DMH-C2500NEX. †
† Refer to the radio manufacturer for current models
• Both textured and painted gloss black to match the factory finish.
C
F
G
MetraOnline.com
2021-Up
for more detailed information about the product and up-to-date vehicle
D
E
H
© COPYRIGHT 2022 METRA ELECTRONICS CORPORATION
107-KI2HG
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-4
Kit Preparation .......................................................5
Kit Assembly ...................................................... 6-7
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: Not required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
Attention!
With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
REV. 2/15/22 INST107-KI2HG
Advertisement
Related Manuals for Metra Electronics 107-KI2HG
Summary of Contents for Metra Electronics 107-KI2HG
- Page 1 Ensure that all installation connections are secure before cycling the ignition to test this product. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 2/15/22 INST107-KI2HG...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the trim panel from 3. Unclip the trim panel above the glove the passenger side of the dash. box and let hang. Note: You do not need (Figure A) to remove the entire panel. (Figure C) 2.
- Page 3 DASH DISASSEMBLY (CONT.) 6. Unclip and remove the trim panel below the radio. (Figure E) 7. Unclip and remove the small trim panel behind the radio screen then remove the (2) Phillips screws exposed. (Figure F, G) Continued on the next page (Figure E) (Figure F) (Figure G) REV.
- Page 4 DASH DISASSEMBLY (CONT.) 8. Remove (2) Phillips screws below the radio screen. (Figure H) 9. Unclip and remove the radio screen and chassis. (Figure I) Continue to Kit Preparation (Figure H) (Figure I) 386.257.1187 MetraOnline.com...
- Page 5 KIT PREPARATION 1. Secure the (4) included panel clips to the back panel. (Figure A) Continue to Kit Assembly (Figure A) REV. 2/15/2022 INST107-KI2HG...
- Page 6 KIT ASSEMBLY Pioneer Modular DDIN radio provision 3. Remove the alignment tabs on the radio display brackets marked 8. Secure Note: Reference the installation manual the radio display to the radio display provided with the radio for which hardware brackets using (6) screws supplied with to use.
- Page 7 KIT ASSEMBLY (CONT.) 4. Connect the cable to the radio display, place the display trim panel over the display, and secure to the back panel with (4) #4 x 3/8” screws provided. (Figure G) 5. Secure the front panel to the radio/ back panel assembly using (6) #4 x 3/8”...
