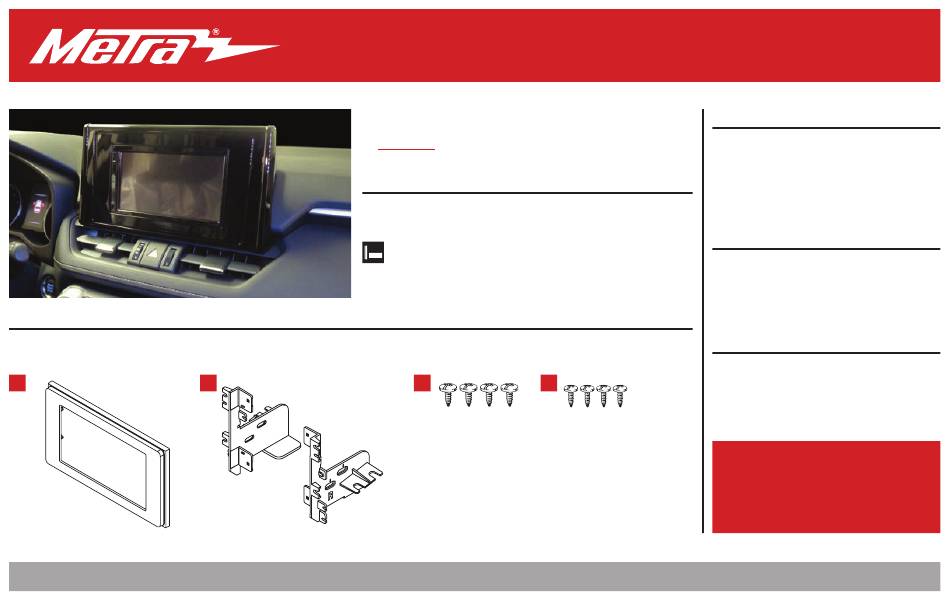

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) #8 x 3/8" Phillips screws (4) • D) #4 x 3/8" Phillips screws (4)
A
Metra. The World's Best Kits.
®
Toyota RAV4
Visit
MetraOnline.com
specific applications
KIT FEATURES
• ISO DDIN radio provision*
• Painted gloss black
B
MetraOnline.com
2019-Up
for more detailed information about the product and up-to-date vehicle
* Designed for ISO DDIN radios which have an "L" shaped chassis design with the
radio chassis at the bottom of the screen. Compatible with Pioneer modular radios
† Refer to the radio manufacturer for current models
C
D
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
107-TO1HG
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–Shallow DDIN radio provision .............................3
–Pioneer modular DDIN radio provision .............4
WIRING & ANTENNA CONNECTIONS (sold separately)
Visit axxessinterfaces.com or metraonline.com
for harness and interface options
Antenna Adapter: 40-LX11
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench • Cutting tool
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 8/18/20 INST107-TO1HG
Advertisement
Related Manuals for Metra Electronics 107-TO1HG
Summary of Contents for Metra Electronics 107-TO1HG
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 8/18/20 INST107-TO1HG...
- Page 2 DASH DISASSEMBLY 1. Remove the trim panel behind the radio. (Figure A) 2. Remove (4) 10mm screws securing the radio. Unclip and slide out the radio, then unplug and remove. (Figure B) 3. Remove the (6) screws on radio back and separate panels from around the factory radio face.
- Page 3 KIT ASSEMBLY Bottom chassis DDIN radio provision 5. Locate the factory wiring harness and antenna connector in the dash and 1. Using pliers or cutting tool, remove the complete all necessary connections to shown inside mounting tabs from the the radio. Metra recommends using radio brackets.
- Page 4 KIT ASSEMBLY Pioneer Modular DDIN radio provision 5. Assemble the radio assembly into the factory radio panels using the outside Note: For steps 1 and 2, reference the (4) factory screws (screws are also installation manual provided with the radio provided if needed).
- Page 5 REV. 8/18/2020 INST107-TO1HG...
- Page 6 1.800.221.0932 MetraOnline.com...
- Page 7 REV. 8/18/2020 INST107-TO1HG...
- Page 8 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 8/18/20 INST107-TO1HG...
