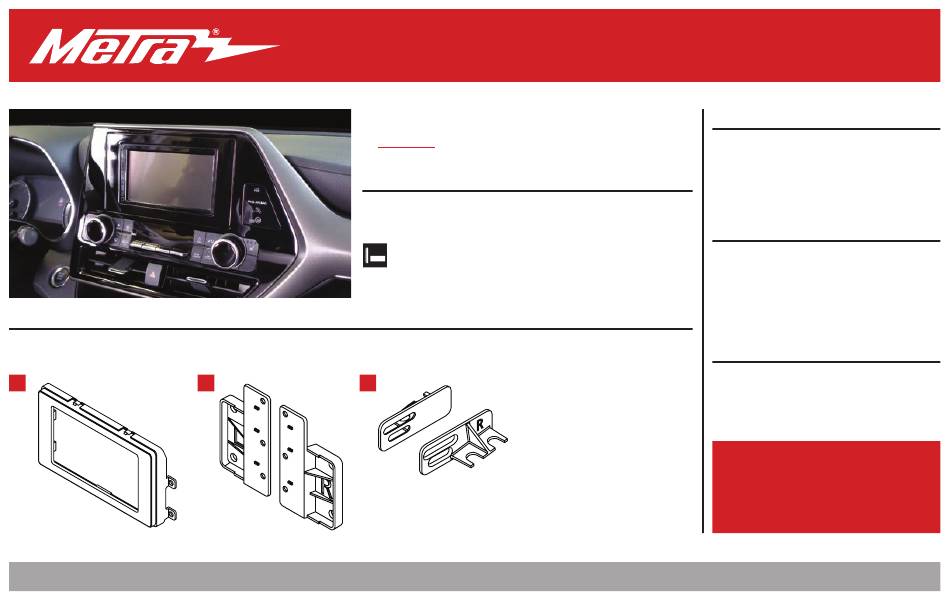

KIT COMPONENTS
• A) Radio trim panel • B) Screen brackets • C) Radio chassis brackets
A
Metra. The World's Best Kits.
®
Toyota Highlander
Visit
MetraOnline.com
specific applications
KIT FEATURES
• ISO DDIN radio provision*
• Painted gloss black
† Refer to the radio manufacturer for current models
B
C
MetraOnline.com
(Without factory 12.3 inch screen)
for more detailed information about the product and up-to-date vehicle
* This kit is designed for an ISO DDIN radio which have an "L" shaped chassis
design, with the radio chassis at the bottom of the screen,
or Pioneer modular 6.8" radios.
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
107-TO7HG
I N S TA L L AT I O N I N S T R U C T I O N S
2020
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DDIN radio provision .....................................2
–Pioneer Modular radio provision .......................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1765 non-amplified
See metra-online.com or axxessinterfaces.com
for audio and SWC interface options
Antenna Adapter: 40-LX11
TOOLS REQUIRED
• Panel removal tool • 10mm socket
• Phillips screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 10/21/20 INST107-TO7HG
Patent Pending
Advertisement
Related Manuals for Metra Electronics 107-TO7HG
Summary of Contents for Metra Electronics 107-TO7HG
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 10/21/20 INST107-TO7HG...
- Page 2 DASH DISASSEMBLY KIT ASSEMBLY 1. Unclip and remove the trim behind Bottom chassis radio provision the radio. Remove (4) 10mm screws 1. Secure the radio brackets to the radio exposed. (Figure A) using screws supplied with the radio. 2. Unclip, unplug, and remove the radio (Figure A) and panel.
- Page 3 KIT ASSEMBLY (CONT.) Pioneer Modular DDIN radio provision 5. Locate the factory wiring harness and antenna connector in the dash and Note: For steps 1 and 2, reference the complete all necessary connections to installation manual provided with the radio the radio.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 10/21/20 INST107-TO7HG...
