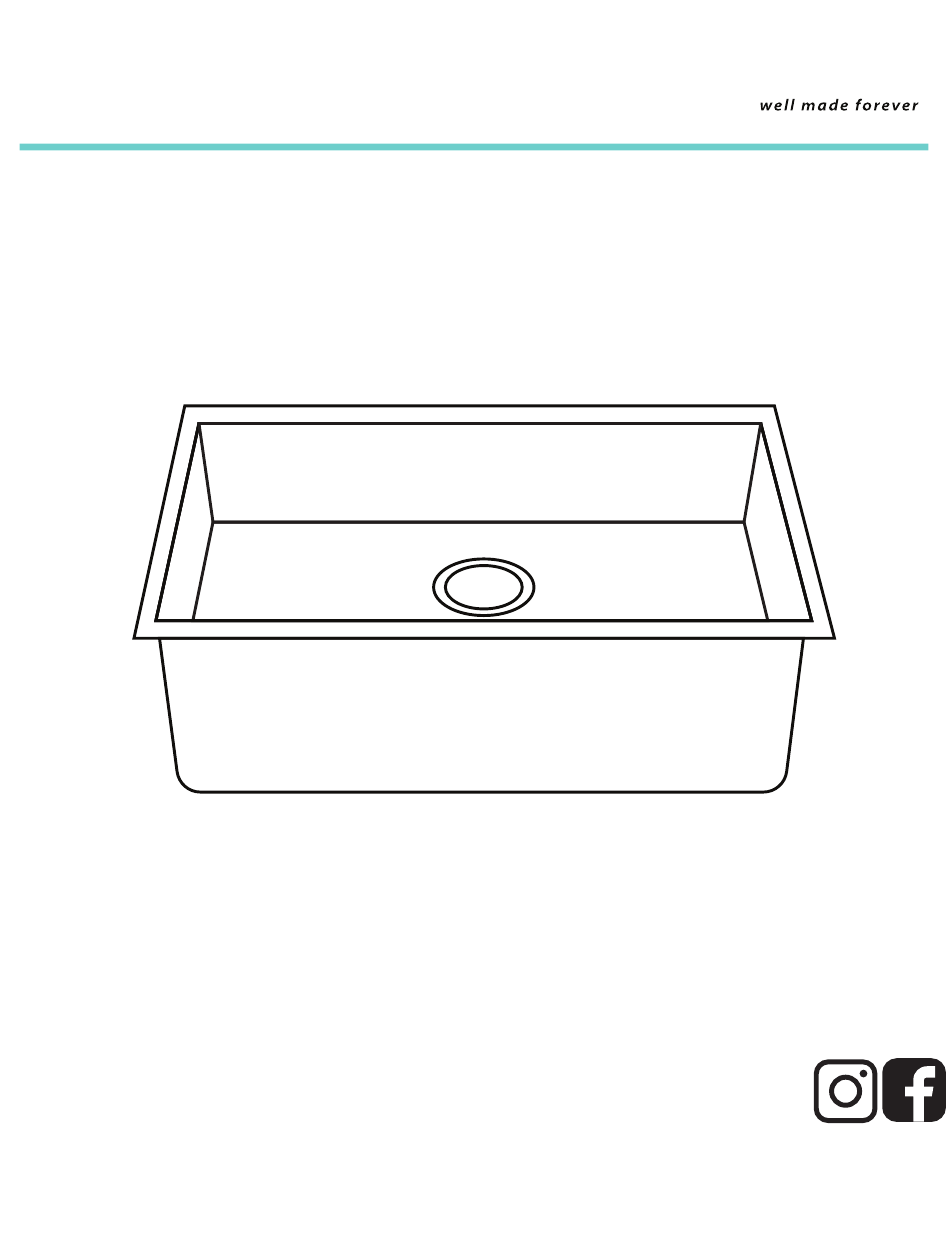

- Page 1 INSTALLATION ® wiss adison INSTRUCTIONS ® Stainless Steel Undermount Kitchen Sink Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Prior To Installation
Prior to Installation: Inspect sink to ensure no damages have occurred while in shipping. Use the cutout template provided by Swiss Madison. Observe all plumbing and building codes in accordance with your state and local requirements. Additional floor and wall preparations may be necessary to avoid damage to the product. - Page 3 Thank you for your purchase! Thank you for purchasing a Swiss Madison Kitchen Sink. We appreciate your business and know you will enjoy your sink for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
- Page 4 14 ¹⁄2” 14 ¹⁄2” 14 5⁄8” 14 5⁄8” Toulouse Toulouse SM-KU630 - Stainless Steel SM-KU631 - Stainless Steel 32 ³⁄8” x 18 ¹⁄8” x 9” 32 ¹⁄4” x 18 7⁄8” x 8 5⁄8” *Roll-Up Grid: SM-KG700 *Roll-Up Grid: SM-KG700 *Roll-Up Grid: SM-KG701 31 ¹⁄2”...
- Page 5 UNDERMOUNT SINK MODELS 12 5⁄8” 27 ¹⁄8” 10 ³⁄4” 25 ¹⁄8” 7” 9” Ø 4 ³⁄4” Ø 4 ³⁄4” 17 7⁄8” 16” 15” 13 ¹⁄8” R3 ¹⁄2 R3 ¹⁄2 Toulouse Toulouse SM-KU634 - Stainless Steel SM-KU635 - Stainless Steel 27 ¹⁄8” x 17 7⁄8” x 9” 12 5⁄8”...
- Page 6 UNDERMOUNT SINK MODELS 32” 30” 30” 28” 10” 10” 5” 4 ¹⁄2” 4 ¹⁄2” 5” 16” 18” 19” 17” 1” 1” Rivage Rivage SM-KU700 - Stainless Steel SM-KU701 - Stainless Steel 30” x 18” x 10” 32” x 19” x 10” *Matching Grid: SM-KU700-G *Matching Grid: SM-KU701-G *Roll-Up Grid: SM-KG700...
- Page 7 UNDERMOUNT SINK MODELS 23 5⁄8” 31 ³⁄4” 21 ¹⁄2” 17 ¹⁄4” 11 ³⁄8” 1” 9” 8” 9” 4 ³⁄4” 20 7⁄8” 18 7⁄8” 16 ¹⁄4” 18 ¹⁄4” 4 ³⁄4” 21” 18 7⁄8” R3¹⁄2 1 ¹⁄16” R3 7⁄8 Toulouse Toulouse SM-KU704 - Stainless Steel SM-KU705 - Stainless Steel 31 ³⁄4”...
- Page 8 UNDERMOUNT SINK MODELS 27” 26” 25 ¹⁄16” 24” 10” 8” 4 ¹⁄2” 4 ¹⁄2” 4 ³⁄4” 5” 16” 18” 19” 17 ¹⁄16” 1” 1” Tourner Tourner SM-KU708 - Stainless Steel SM-KU709 - Stainless Steel 26” x 18” x 8” SM-KU709G - Gold 27”...
- Page 9 UNDERMOUNT SINK MODELS 27” 25 ¹⁄16” 10” 4 ¹⁄2” 4 ³⁄4” 19” 17 ¹⁄16” 1” Tourner SM-KU798G - Gold SM-KU798B - Black 27” x 19” x 10” *Matching Grid: SM-KU709-G SM-KU798RG - Rose Gold *Roll-Up Grid: SM-KG700 *Matching grids, roll-up grids and drains are not included, color options available, please contact us if you wish to purchase one. —...
-
Page 10: Installation Instructions
Tape Measure Scissors Adhesive (included) PARTS LIST Swiss Madison Sink Cutout Template Mounting Hardware NOTE: Specialized tools may be necessary to install Swiss Madison Stainless Steel Undermount Sinks with countertop materials other than wood, marble, or granite. — 8 —... - Page 11 UNDERMOUNT SINK INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Sink. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 12 2. Position and Trace Template Check the cutout template against the actual sink to ensure a proper sized cutout. Place the cutout template in the desired location on the countertop. Trace the template onto the countertop. NOTE: Make sure clearance is suitable for back splash, faucet, and plumbing for the sink. 3.
-
Page 13: Install Mounting Brackets
4. Install Mounting Brackets Turn countertop over and align sink with countertop. Decide location for mounting brackets. Mounting holes should be drilled 1/2” from the edge of the sink. Install anchors into drilled holes and lightly tap with a hammer until flush with countertop. It is recommended to install faucet according to the manufacturers installation instructions at this point. -
Page 14: Attach Mounting Hardware
5. Secure Sink to Countertop Clean underside of the countertop and around cutout area making sure area is smooth and free of defects. Apply a bead of sealant to the rim of the sink near the inside edge. Be careful not to miss or skip any area. - Page 15 Test run water into sink and check for leaks. Lifelong Care: Swiss Madison Stainless Steel Sinks are easy to maintain with minimal care. For best results, always rinse with mild soap and wipe after each use. Rub lightly with soft cloth in the direction of the drain on a regular basis. To avoid damage and discoloration to the sink surface never use steel wool, scouring pad or abrasive cleaners.
- Page 16 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
