ASSEMBLING AND
DISASSEMBLING THE BAR AND
CHAIN
WARNING:
power plug before assembling the saw or
performing maintenance on the product.
WARNING:
the chain while the motor is running.
The saw chain is very sharp; always
wear protective gloves when performing
maintenance to the chain.
1. Ensure the kickback brake paddle is
set to position.
2. Wear protective gloves, unscrew the
bar nut by combi-wrench (provided),
then take off the side cover

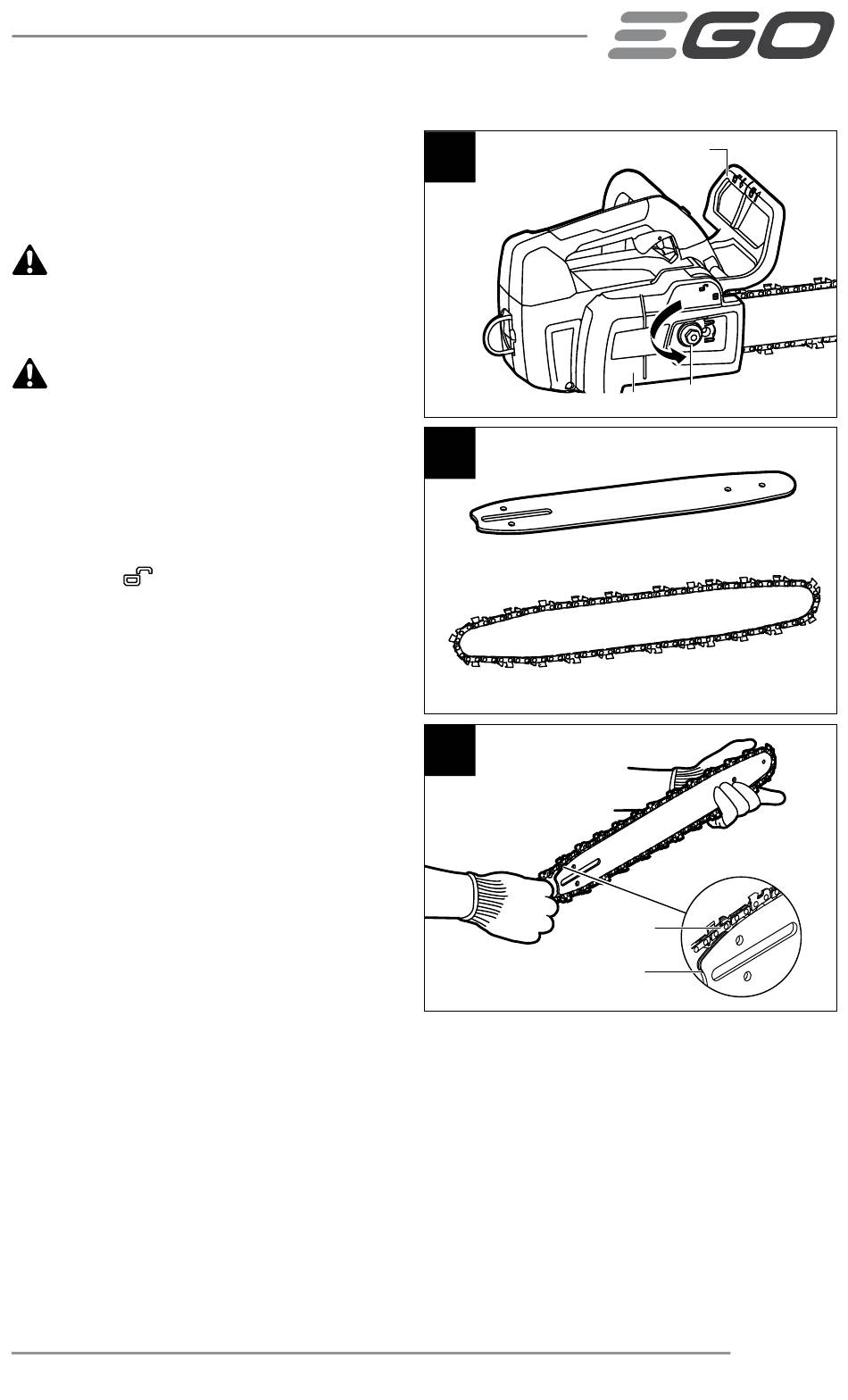

assembly. (Fig. 9).
3. Lay the saw chain in a loop on a flat
surface and straighten any kinks
(Fig. 10).
4. Place the chain drive links into the
guide bar groove and make the
chain a loop at the back of the guide
bar (Fig. 11).
5. Hold the chain in place on the guide
bar and place the loop around the sprocket of the power head and check the
following items (Fig.12):
a) Chain drive links are seated in the teeth of chain sprocket.
b) Head of locking screw and guide bolt locate in the slot of guide bar.
c) Tensioning pin is engaged in the hole of guide bar.
56V LITHIUM-ION CORDLESS CHAIN SAW — CSX3000/CSX3000-FC
Always disconnect the
Never touch or adjust
9
Kickback Brake Paddle
Side Cover Assembly
10
11
Chain Drive
Links
Guide Bar Groove
Bar Nut
