BE4114

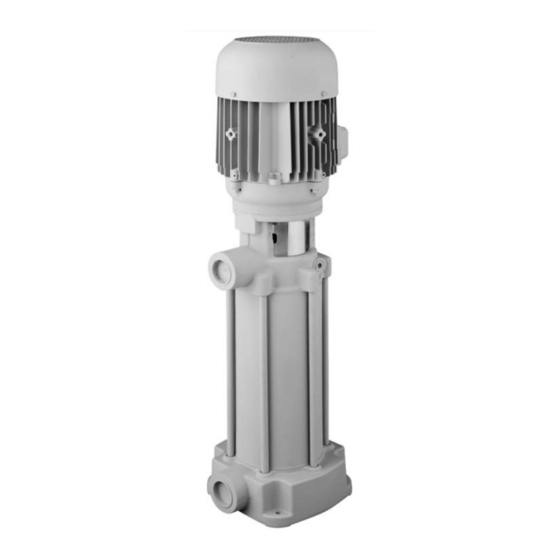

BRINKMANN pressure boosting pumps
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2
D-58791 Werdohl
Tel.: +49-2392 / 5006-0
Fax.: +49-2392 / 5006-180
Subject to change without prior notice.
Brinkmann Pumpen
Operating Instructions
(Translation of original)
09/2017
Edition
FH11...FH17
www.brinkmannpumps.de
sales@brinkmannpumps.de
Order - No.: BE4114 ENGLISH
1
16
Page
of
Advertisement
Table of Contents
Related Manuals for BRINKMANN PUMPS FH Series
Summary of Contents for BRINKMANN PUMPS FH Series

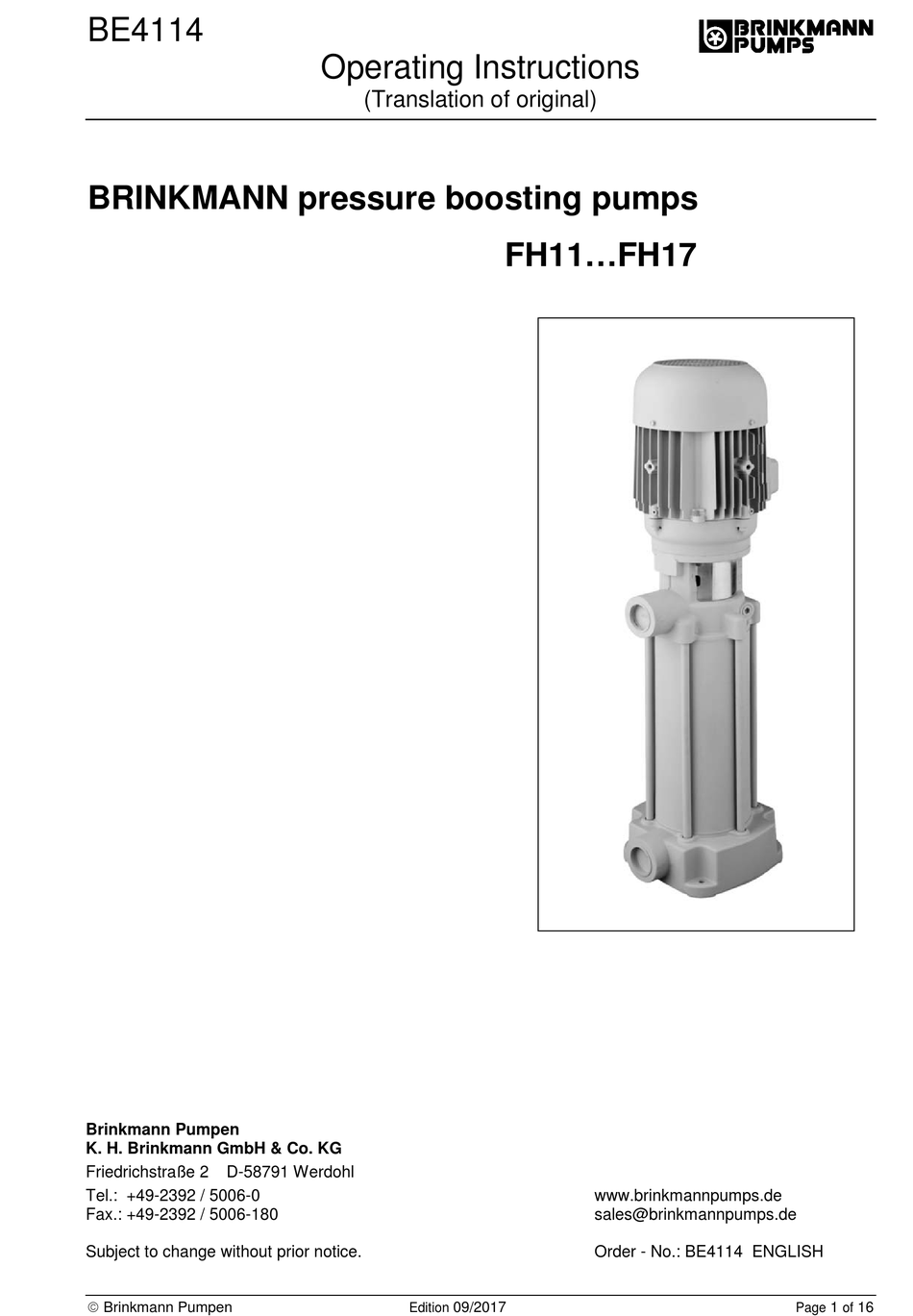

- Page 1 BE4114 Operating Instructions (Translation of original) BRINKMANN pressure boosting pumps FH11…FH17 Brinkmann Pumpen K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2 D-58791 Werdohl Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de Fax.: +49-2392 / 5006-180 sales@brinkmannpumps.de Subject to change without prior notice. Order - No.: BE4114 ENGLISH ...
-
Page 2: Table Of Contents
Brinkmann pressure boosting pumps series FH11 ... FH17 Contents 9 Trouble shooter’s guide ........12 Indication to the manual ........2 Description of product ........2-8 10 Spare part ..........13-15 Safety instructions ..........9 11 Repair ............. 15 Transport and storage ........9 12 Disposal ............ - Page 3 Technical data 50 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / H mm l mm Type spec. weight 1 l/min FH1102A18 FH1103A18 FH1104A28 FH1105A28 FH1106A28 FH1107A31 FH1108A38 FH1109A38 10.7 FH1110A47 11.9 1028 FH1111A47 13.0 1058 FH1112A47...
- Page 4 50 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / H mm l mm Type spec. weight 1 l/min FH1402A18 FH1403A28 FH1404A28 FH1405A38 FH1406A38 FH1407A47 10.0 1058 FH1408A47 11.8 1136 FH1409A57 12.1 1232 FH1410A57 14.3 1232 FH1411A66...
- Page 5 50 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / H mm l mm Type spec. weight 1 l/min FH1702A18 FH1703A28 FH1704A28 FH1705A38 FH1706A38 1040 FH1707A47 10.4 1136 FH1708A47 12.0 1136 FH1709A57 13.7 1240 11.0 15.0 FH1710A57...
- Page 6 60 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / Type spec. weight 1 l/min H mm l mm FH1102B18 1,49 FH1103B18 2,18 FH1104B28 2,94 FH1105B28 FH1106B28 10,1 4,55 FH1107B31 11,9 5,75 FH1108B38 13,8 FH1109B38 15,6 FH1110B47...
- Page 7 60 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / Type spec. weight 1 l/min H mm l mm FH1402B18 2.94 FH1403B28 4.55 FH1404B28 FH1405B38 10.2 1040 FH1406B38 12.2 FH1407B47 14.4 1136 10.3 FH1408B47 16.4 1144 12.6...
- Page 8 60 Hz Max. del. Max. del. Height Length Weight Power Noise pressure volume level bar / Type spec. weight 1 l/min H mm l mm FH1702B18 FH1703B28 5.75 FH1704B28 FH1705B38 10.8 1040 10.3 FH1706B38 13.1 1048 12.6 FH1707B47 15.2 1144 15.0 FH1708B47 17.4...
-
Page 9: Safety Instructions
3 Safety instructions Safety instructions relevant for opera- When operating the pump, the safety instructions tion contained in this manual, the relevant national If hot or cold machine components involve accident prevention regulations and any other hazards, they must be guarded against acci- service and safety instructions issued by the plant dental contact. -
Page 10: Installation And Connection
5 Installation and Connection Electric wiring Mechanical installation During any assembly or disassembly process the pumps must be secured against tipping trough ropes for example at all times. All service work must be carried out by quali- Pumps must be mounted securely. Piping, tank and fied service personnel. -
Page 11: Start Up / Shut Down
6 Start up / Shut down Start up ATTENTION If the pump should lock up and cease, shut Switch off at the mains. pump down (see 6.2) and disconnect from After connection the electrical wires, close the power supply. Pump must be uninstalled and terminal box. -
Page 12: Trouble Shooter's Guide
9 Trouble shooter’s guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming One of the supply leads has failed See above noise... -
Page 13: Spare Part
10 Spare part 10.1 Spare part list for pressure boosting pumps series FH11 FH1702A18...FH1710A57 FH1402A18...FH1413A76 FH1702B18...FH1706B38 FH1402B18...FH1408B47 Item Description Stator with terminal board Motor flange End shield Motor shaft with rotor Terminal box up to 5.5 kW Terminal box frame from 7.5 kW and over Terminal box cover from 7.5 kW and over Fan cover 10 Gasket... - Page 14 10.2 Spare part list for the pressure boosting pumps series FH1711A66...FH1717A90 FH1414A76...FH1417A90 FH1707B47...FH1711B66 FH1409B57...FH1412B66 Item Description Motor Bearing housing Bearing shaft Woodruff key DIN 6888 Ball bearing DIN 628 Distance plate Ball bearing DIN 628 Coupling Socket head cap screw DIN 912 10 Threaded pin DIN 705...
-
Page 15: Repair
10.3 Indications to the spare part order 9) Lubricate the O-ring seal (72) Put on the spiral-backup ring (63), the O-ring Spare parts are available from the supplier. seal (72), the connection cover (51) and the Standard commercially available parts are to be pump casing (67) and screw evenly the stud bolt purchased in accordance with the model type. -
Page 16: Ec Declaration Of Conformity
13 EC declaration of conformity DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL EG-Konformitätserklärung EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE Hersteller / Manufacturer / Constructeur / Fabricante Brinkmann Pumpen. K. H. Brinkmann GmbH & Co. KG Friedrichstraße 2.
