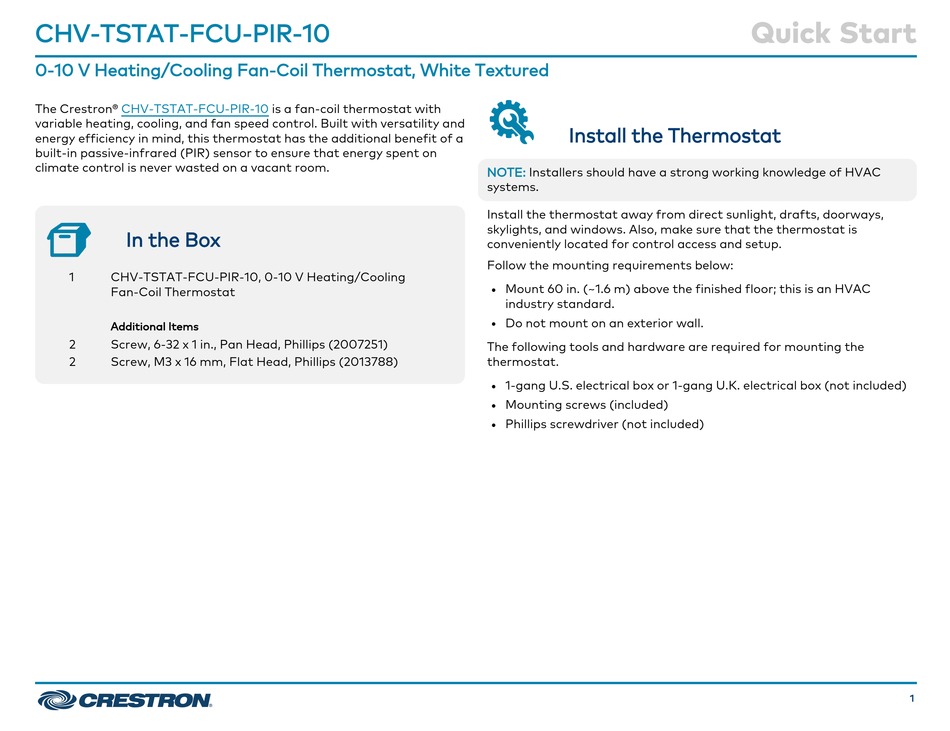

Crestron CHV-TSTAT-FCU-PIR-10 Quick Start

CHV-TSTAT-FCU-PIR-10
0-10 V Heating/Cooling Fan-Coil Thermostat, White Textured
The Crestron® CHV-TSTAT-FCU-PIR-10
variable heating, cooling, and fan speed control. Built with versatility and
energy efficiency in mind, this thermostat has the additional benefit of a
built-in passive-infrared (PIR) sensor to ensure that energy spent on
climate control is never wasted on a vacant room.
In the Box
1 CHV-TSTAT-FCU-PIR-10, 0-10 V Heating/Cooling
Fan-Coil Thermostat
Additional Items
2 Screw, 6-32 x 1 in., Pan Head, Phillips (2007251)
2 Screw, M3 x 16 mm, Flat Head, Phillips (2013788)
is a fan-coil thermostat with
Install the Thermostat
NOTE: Installers should have a strong working knowledge of HVAC
systems.
Install the thermostat away from direct sunlight, drafts, doorways,
skylights, and windows. Also, make sure that the thermostat is
conveniently located for control access and setup.
Follow the mounting requirements below:
Mount 60 in. (~1.6 m) above the finished floor; this is an HVAC
l
industry standard.
Do not mount on an exterior wall.
l
The following tools and hardware are required for mounting the
thermostat.
1-gang U.S. electrical box or 1-gang U.K. electrical box (not included)
l
Mounting screws (included)
l
Phillips screwdriver (not included)
l
