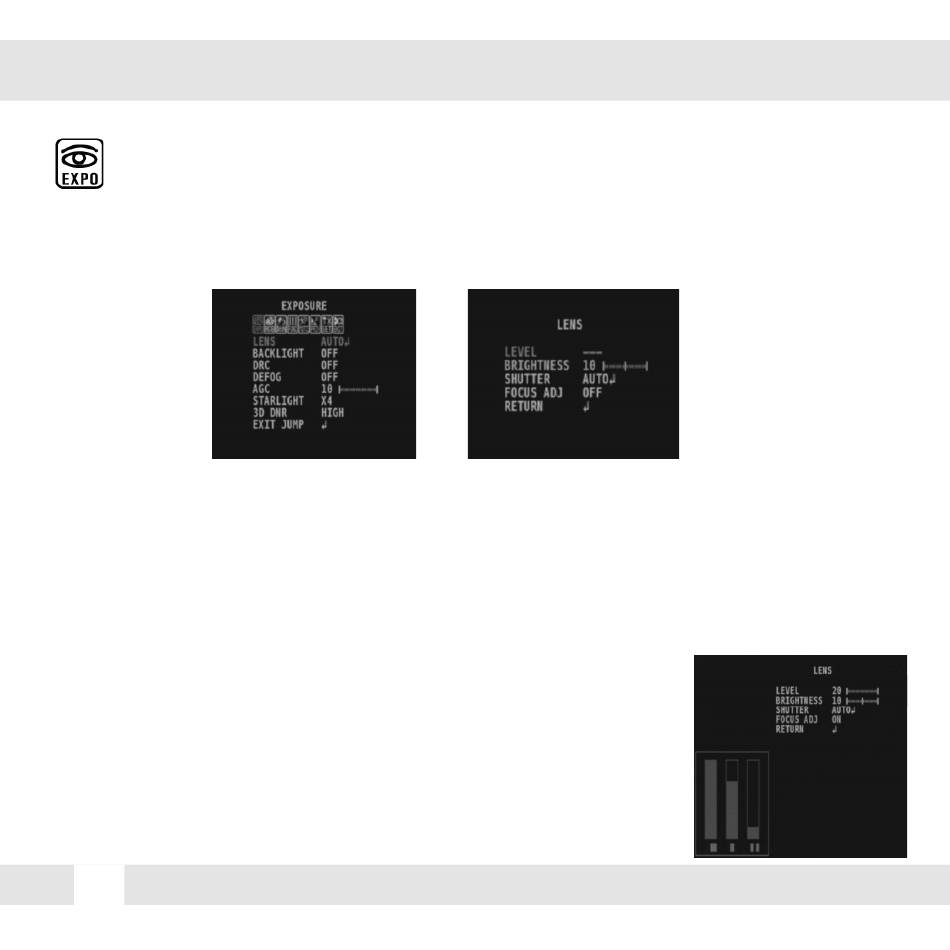

EXPOSURE
LENS
Manual mode supports the fixed board lens or the manual iris lens.
MANUAL/
AUTO mode sets the camera's iris automatically.
AUTO
- Level: Change the camera's iris value manually. If AUTO is selected, this option is disabled.
- Brightness: Adjust the camera's brightness from 0~20. The higher the number, the brighter the
image will appear.
- Shutter: Set the shutter speed to AUTO, Manual, or FLC (Flicker-less mode).
- If AUTO is selected, select from the following options:
- NORMAL: Set when the camera is installed in an indoor environment.
- DEBLUR: Set when the camera is installed in an outdoor envirnment.
- Select FLC if the camera is experiencing some flickering in the image.
The shutter speed will be set to 1/100 for NTSC, or 1/120 for PAL.
- If Manual is selected, set the shutter speed from the options: 1/30,
1/60, 1/120 ~ 1/30000.
- Focus Adjustment: When on, the default level is set automatically by
controlling lens focus and based on the installation and environment
circumstances.
