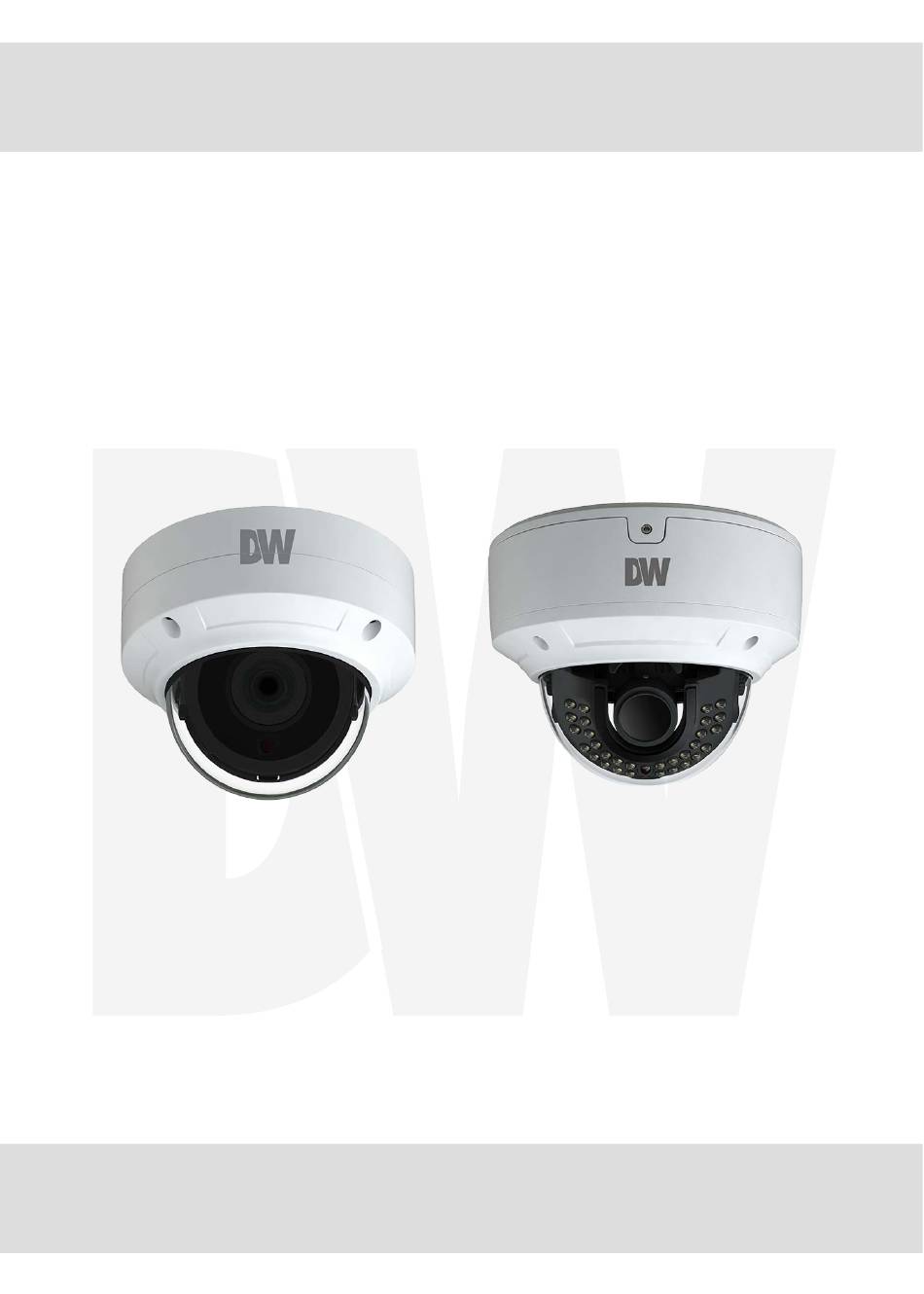

- Page 1 Universal HD over Coax ® 5MP Vandal Dome Camera DWC-V8553TIR/ DWC-V8563TIR User’s Manual Ver. 11/18 Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
-
Page 2: Table Of Contents
DWC-V8553TIR, DWC-V8563TIR Table of Contents FEATURES ............3 DIMENSIONS ............4 2.1 DWC-V8553TIR ..........4 2.2 DWC-V8553TIR ..........5 PRODUCT ACCESSORIES........6 INSTALLATION ............7 CHANGING THE CAMERA’S SIGNAL ..... 8 CONNECTING TO DVR/ENCODER......9 ADJUSTING THE CAMERA ANGLES ....10 OSD MENU TREE .......... -
Page 3: Features
Technology supports HD-Analog, HD-TVI, HD-CVI and all analog to 960H signals § 5MP 1/2.7" image sensor at 20fps / 4MP at real-time 30fps § 2.8mm fixed lens (DWC-V8553TIR model) § 2.8~12mm varifocal lens with motorized zoom and focus (DWC-V8563TIR model) §... -
Page 4: Dimensions
DWC-V8553TIR, DWC-V8563TIR 2 DIMENSIONS 2.1 DWC-V8553TIR... -
Page 5: Dwc-V8553Tir
® Universal HD over Coax 5MP Camera 2.2 DWC-V8553TIR... -
Page 6: Product Accessories
DWC-V8553TIR, DWC-V8563TIR 3 PRODUCT ACCESSORIES Please check if all of the camera parts and accessories are included in the package before proceeding. -
Page 7: Installation
® Universal HD over Coax 5MP Camera 4 INSTALLATION The mounting surface must withstand three times the weight of your camera. Do not let the cables get caught in improper places for the electric line cover can be damaged. This may cause a short or fire. For the installation process, remove the camera’s dome cover by loosening the screws at the base of the dome. -
Page 8: Changing The Camera's Signal
DWC-V8553TIR, DWC-V8563TIR 5 CHANGING THE CAMERA’S SIGNAL The camera supports three analog signals: HD-Analog, HD-TVI, HD-CVI and analog signal up to 960H. In order to switch the camera’s signal between the available options, locate the button switch on the signal cable. The video outputs will recycle by holding and pressing the button in the video switch cable for 5 seconds. -
Page 9: Connecting To Dvr/Encoder
® Universal HD over Coax 5MP Camera 6 CONNECTING TO DVR/ENCODER Use the diagram below to connect to a Universal DVR or CRT Monitor properly. Use the diagram below to connect the camera to a proper power supply. Power requirements: DC12V Power consumption: IR LEDs on: <... -
Page 10: Adjusting The Camera Angles
DWC-V8553TIR, DWC-V8563TIR 7 ADJUSTING THE CAMERA ANGLES Adjust the camera to obtain an optimum angle by using the camera’s bracket. The camera’s max angles are: § Pan: 0° ~ 355° § Tilt: 0° ~ 67° § Rotation: 0° ~ 355°... -
Page 11: Osd Menu Tree
® Universal HD over Coax 5MP Camera 8 OSD MENU TREE This camera supports Up the Coax communications (UTC). This means that all control over the camera’s OSD menu and settings can be done directly from the DVR itself. Please note that the DVR must also support UTC in order to control and setup the camera remotely. -
Page 12: White Balance
DWC-V8553TIR, DWC-V8563TIR 8.3 WHITE BALANCE The camera’s white balance can be set to AWT or AWC. ATW: The camera will constantly adjust the white balance automatically, compensating for temperature changes between 2200~10500K. AWC→SET: Fix the white balance values according to the current color temperature settings in the camera’s view. -
Page 13: Adjust
® Universal HD over Coax 5MP Camera 8.5 ADJUST NR (Noise Reduction): You can adjust the camera’s digital noise reduction settings to 2DNR and 3DNR. Digital noise reduction helps decrease digital noise in low lightning and make the image more thorough. Increasing the value of the digital noise reduction will make improve the digital noise reduction effect but it may also reduce the image resolution. -
Page 14: Auto-Focus
DWC-V8553TIR, DWC-V8563TIR 8.6 AUTO-FOCUS For motorized zoom cameras (DWC-V8563TIR models), auto focus function can be adjusted. For DWC-V8553TIR models, please skip this section. AF Mode: Select from: SEMI, AUTO or MANUAL. ONE SHOT AF: Select this option to focus the camera instantly based on the current settings and view. -
Page 15: Troubleshooting
® Universal HD over Coax 5MP Camera 9 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the power supply and make sure the camera has the proper voltage and current. FOR OUT-OF-FOCUS VIDEO Check the Front case cover and the lens for dirt or fingerprints. -
Page 16: Specifications
DWC-V8553TIR, DWC-V8563TIR 10 SPECIFICATIONS 10.1 DWC-V8553TIR... -
Page 17: Dwc-V8563Tir
® Universal HD over Coax 5MP Camera 10.2 DWC-V8563TIR... -
Page 18: Limits & Exclusions
DWC-V8553TIR, DWC-V8563TIR 11 LIMITS & EXCLUSIONS There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. -
Page 19: Warranty Information
5MP Camera 12 WARRANTY INFORMATION Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 20 DWC-V8553TIR, DWC-V8563TIR...
