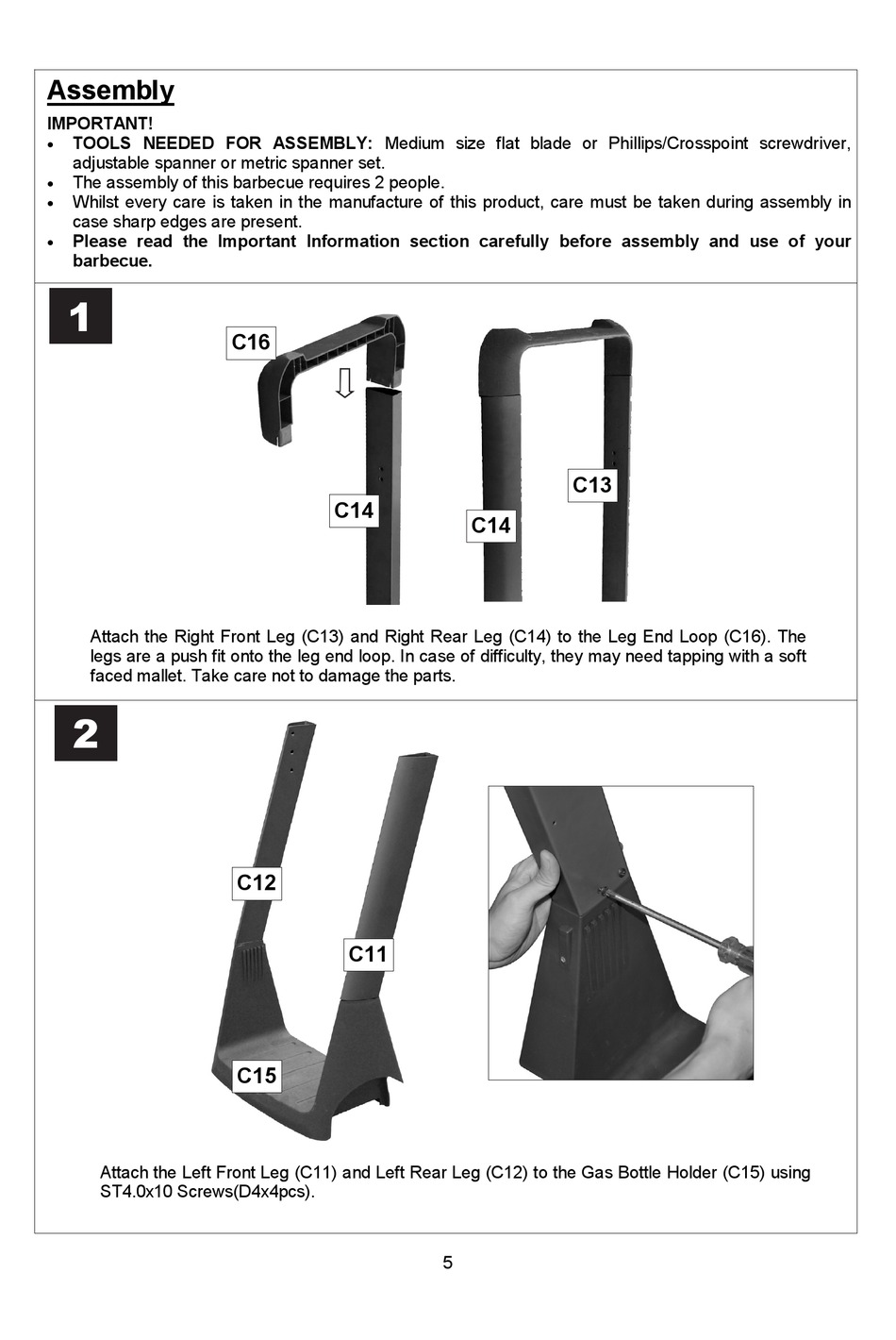

Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.

Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your

barbecue.
1
Attach the Right Front Leg (C13) and Right Rear Leg (C14) to the Leg End Loop (C16). The
legs are a push fit onto the leg end loop. In case of difficulty, they may need tapping with a soft
faced mallet. Take care not to damage the parts.
2
Attach the Left Front Leg (C11) and Left Rear Leg (C12) to the Gas Bottle Holder (C15) using
ST4.0x10 Screws(D4x4pcs).
C16
C14
C12
C11
C15
C13
C14
5
