Assembly and Operating Instructions for
Photographs are not to scale.
Specifications subject to change
without prior notice.






WARNING





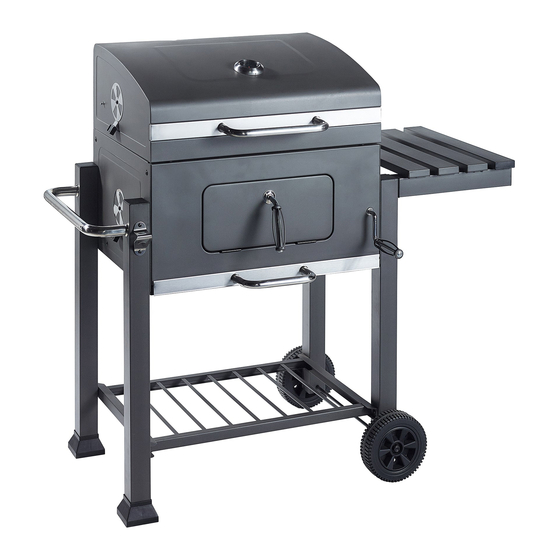

Outback® Orion Charcoal BBQ
For outdoor use only - do not use indoors! Not for commercial use.
Read instructions before using the appliance. Failure to follow
instructions could result in death, serious bodily injury, and/or
property loss.
WARNING! Accessible parts may be very hot. Keep children and
pets away!
WARNING! Do not use spirit or petrol for lighting or re-lighting! Use
only firelighters complying to EN1860-3!
WARNING! This barbecue becomes very hot. Do not move it during
operation!
Install this barbecue on a safe and even surface.
Any modification of the appliance, misuse, or failure to follow the
instructions may be dangerous and will invalidate your warranty.
This does not affect your statutory rights.
Retain these instructions for future reference.
Do not use the barbecue in a confined and/or habitable space e.g.
houses, tents, caravans, motor homes, boats. Danger of carbon
monoxide poisoning fatality.
Do not cook before the fuel has a coating of ash.
TRC100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outback Orion

Summary of Contents for Outback Orion

  • Page 1 Assembly and Operating Instructions for Outback® Orion Charcoal BBQ TRC100 Photographs are not to scale. Specifications subject to change without prior notice.  For outdoor use only - do not use indoors! Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. CODE PART OUTBACK® ORION CHARCOAL BBQ Hood  Outback® Logo Badge  Heat Indicator ...

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. CODE PART PICTURE M6x10 Bolt M6x35 Bolt M6x45 Bolt M6x70 Bolt M5x16 Bolt M5x28 Bolt M6 Half Screw Thread Bolt M6 Nut M10 Nut Hinge Pin Cotter Pin D6 Washer D6 Spring Washer M5x28 Half Screw Thread Bolt...
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the Leg End Cap(C5) to the Left Back Leg (C1) and Left Front Leg（C2) as shown. Attach the Legs (C1,C2,C3,C4) to the Fix Box Assembly using M6x10 Bolts (Ax8pcs) as shown.
  • Page 7 Attach the Bottom Shelf (C6) to the Legs using M6x10 Bolts (Ax4pcs) as shown. Slide the Wheel Axle (C11) through the corresponding holes in the right legs. Slide the Wheels (C12x2pcs) over each end of the axle. Secure the wheels into place with the M10 Nut (Ix2pcs).
  • Page 8 Place the Wheel Hubcap (C13x2pcs) onto the outsides of the wheels. Fix the support of Adjustable Charcoal Pan to the Fix Box Left Panel and Right Panel (B3,B4) using M6x10 Bolts (Ax4pc) as shown.

  • Page 9: Rear View

    REAR VIEW LEFT VIEW Carefully place the Adjustable Charcoal Pan (B6) into the fix box assembly, and fix using Cotter Pin (Kx1pc) and M6x10 Bolt (Ax1pcs）as shown. Attach the Charcoal Pan Handle (B14) to the adjusting lever of Charcoal Pan (B6) using M5x28 Half Screw Thread Bolt (Nx1pcs) as shown.
  • Page 10 Attach the Charcoal Door Handle (B11) ,Charcoal Door Handle Base (B12) and Charcoal Door Locking Lever (B13) to the Charcoal Door using M6 Nut (Hx1pcs), D6 Washer (DLx1pc) and D6 Spring Washer (Mx1pc) as shown. Attach the Air Vent (B8x2pcs) to the Fix Box Left Panel (B3) and Right Panel (B4) using M6x10 Bolts (Ax2pcs), M6 Nut (Hx2pcs), D6 Washer (Lx2pc) and D6 Spring Washer (Mx2pc) as shown.
  • Page 11 Attach the Lower Hinges (B5x2pcs) to the Fix Box Back Panel (B2) using M6x45 Bolts (Cx4pcs), D6 Spring Washer (Mx4pc) and D6 Washer (Lx4pc) as shown. Attach the Cart Handle (C7) and Cart Handle Base (C8) to the Left Legs (C1,C2) using M6x70 Bolts (Dx2pcs) as shown.
  • Page 12 Attach the Air Vents (B8x2pcs) to the Hood (A1) using M6x10 Bolts (Ax2pcs), M6 Nut (Hx2pcs), D6 Washer (Lx2pc) and D6 Spring Washer (Mx2pc) as shown. Attach the Upper Hinges (A6x2pcs) to the Hood (A1) using M6x35 Bolts (Bx4pcs), M6 Nuts (Hx4pcs), D6 Spring Washer (Mx4pc) and D6 Washer (Lx4pc) as shown.
  • Page 13 Insert the Hinge Pin (Jx2pcs) to the hole of Hinge, and fix using the Cotter Pin (Kx2pcs) Step2 Step1 Step3 Attach the Right Side Table with Hooks (C10) to the Right Legs (C3,C4) using M6 Half Screw Thread Bolts (Gx4pcs) as shown.
  • Page 14 Attach the Bottle Opener (C9) to the Left Front Leg (C2) using the M5x16 Bolt (Ex2pcs) as shown. Note: If the holes in the bottle opener do not match up to the holes in the leg of the BBQ, merely place the top screw in first and do not tighten, then place the bottom screw. Tighten both screws.
  • Page 15 Attach the Ash Pan Handle (B10) and Ash Pan Handle Base (A5) to the Ash Pan (B9) using M5x16 Bolts (Ex2pcs) as shown. Insert the Ash Pan (B9) by sliding it underneath the barbecue body.
  • Page 16 Attach the Warming Rack (A7) to the Hood and Fix Box Assembly as shown. Lay the Cooking Grid (B7) into place. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE.

  • Page 17: Installation

    not the ash tray. Important Information  Ensure the ash tray is in place before use. Please read these instructions carefully  Do not move the cooking grill and charcoal before assembly and use of your barbecue. grill until after the appliance has completely cooled down.
  • Page 18 used at any one time is 2.0kg. Heat Control  When placing charcoal, never allow charcoal The adjustable vents in the hood and ash tray can be used to control the burning of the to be closer than 5cm to the surrounding charcoal.

  • Page 19: Care And Maintenance

    directly onto the charcoal. Always protect your storage. Ensure barbecue hands when handling anything near the cooking components sufficiently cool before surface of the barbecue and take care to protect cleaning. Do not leave the barbecue exposed yourself from the flames. to outside weather conditions or stored in damp, moist areas.
  • Page 20 can result in a fat fire. This can be hazardous Notes: and severely damage the barbecue. This is not a fault in the barbecue and is therefore not covered by the terms of the warranty. If required, the tray can be washed in hot soapy water.
  • Page 21 OUTBACK® WARRANTY OUTBACK® barbecues are warranted to the original purchaser against defects in materials and workmanship. OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
