Outback

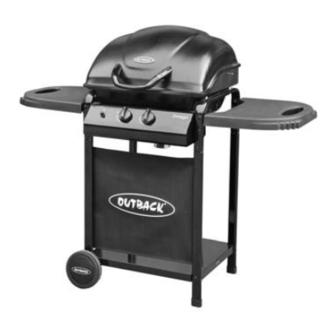

OM200H
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
Assembly and Operating Instructions for
®
Omega 200, and Omega 250 Gas Barbecues
For outdoor use only.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
the hose connections are tight and leak test each time you reconnect the gas
bottle.
OM250H
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359
2575

Advertisement

Table of Contents
loading

Summary of Contents for Outback Omega 200

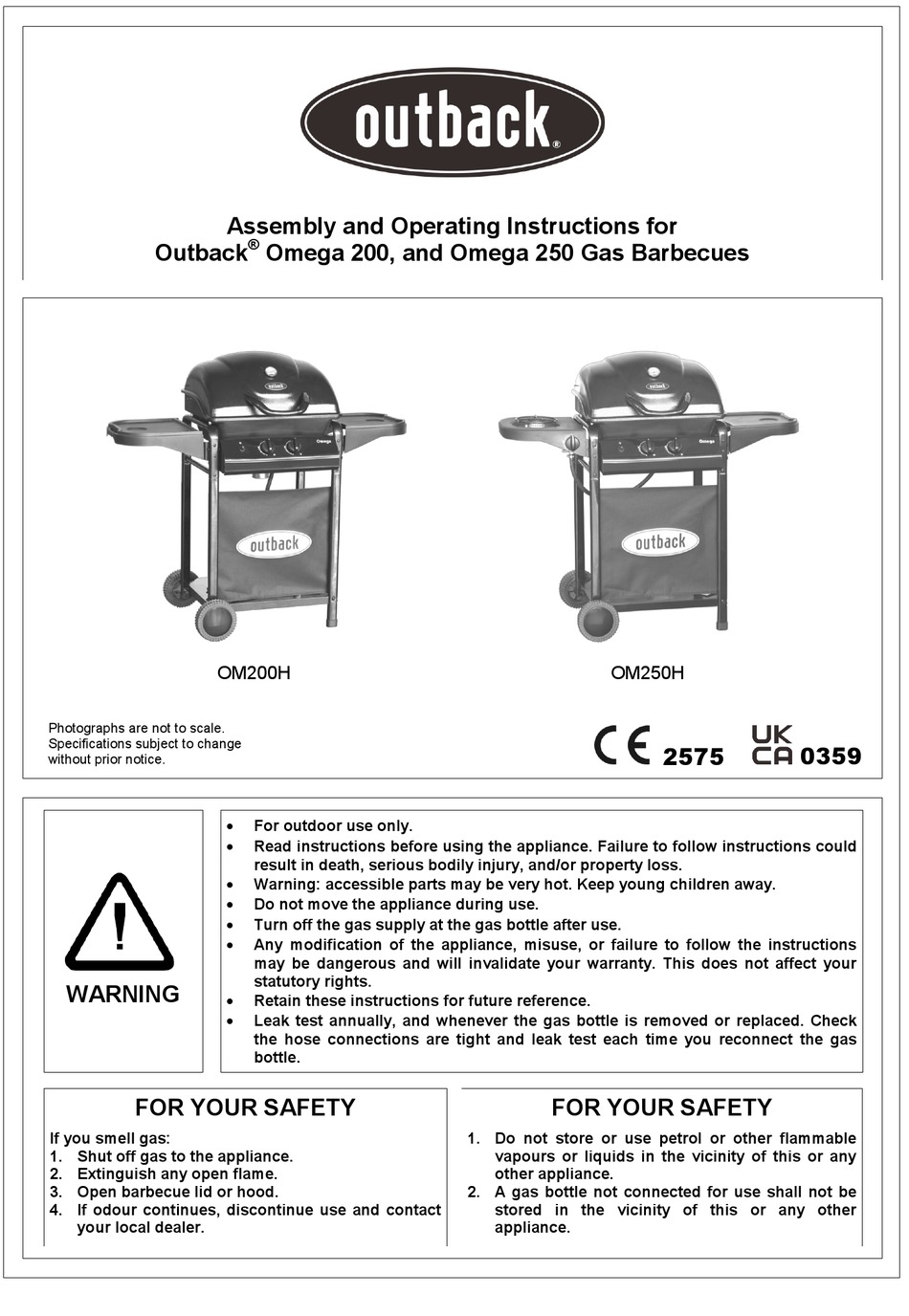

  • Page 1 Assembly and Operating Instructions for ® Outback Omega 200, and Omega 250 Gas Barbecues OM200H OM250H Photographs are not to scale. Specifications subject to change 0359 2575 without prior notice.  For outdoor use only.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
  • Page 2: Parts List

    Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model. CODE PART OMEGA 200 OMEGA 250 Flame Tamer 3 3 Burner 3...
  • Page 3 Parts Diagram: Omega 200 Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram: Omega 200. Pre-assembled body unit includes the following individual parts: A10 A11 B13 B14...
  • Page 4 Parts Diagram: Omega 250 Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‗Hardware Reference Diagram: Omega 250.‘ Pre-assembled body unit includes the following individual parts: A10 A11 B14 B15 B16 B17 B18...
  • Page 5 Hardware Reference Diagram: Omega 200 and Omega 250 Specifications subject to change without prior notice. Short Axle (2pcs) Axle Clip (2pcs) D3, D7 M6x30 Bolts (4pcs) M6x30 Bolt (4pcs) , M6 Nut (4pcs) D5, D7 M6x50 Bolt (4pcs) , M6 Nut (4pcs)
  • Page 6 Please read the Important Information section carefully before assembly and use of your  barbecue.  Omega 200 Omega 250  Omega 200 Omega 250 Warning: Care must be taken to ensure hood does not fall open unexpectedly.
  • Page 7  Omega 200 Omega 250  Omega 200 Omega 250...
  • Page 8  Omega 200 Omega 250  Omega 200 Omega 250...
  • Page 9 Note: Please remove the mounting screws from one plastic side shelf, then fix side shelf bracket A (B19) and shelf bracket B (B20) onto the plastic side shelf with those screws. Omega 200: Repeat above process for the other plastic side shelf.  Omega 200 Omega 250...
  • Page 10  Omega 200 Omega 250  Omega 200 users skip this step and proceed directly to Step 15.  Omega 200 Omega 250    Remove the screws from Side Burner Valve / Hose Assembly (B12) and secure side burner valve onto side burner shelf with those two screws.
  • Page 11  Omega 200 Omega 250  Omega 200 Omega 250 Step1 Step2 Step3 Step4    Remove the wing nut from Side Burner (B10). Place the Side Burner Electrode (B9) onto the side burner shelf as shown. Then place the side burner in position as above shown.
  • Page 12 NOTE: Make sure the base of cooking utensil to put on the side burner is larger than 150mm and smaller than 220mm.
  • Page 13  Omega 200 Omega 250  Insert grease cup into wire cup holder.  Omega 200 Omega 250...
  • Page 14  Omega 200 Omega 250  Omega 200 Omega 250...
  • Page 15  Omega 200 Omega 250 Step 1 Step 2 Step 3 Step 4  Omega 200 Omega 250...
  • Page 16: Leak Testing

    1. Maximum diameter or breadth is 315mm. 2. Maximum height (regulator included) is 580mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 17: Gas, Regulator And Hose

    Important Information  Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly.
  • Page 18: Installation

    OPERATE SAFELY AND EFFICIENTLY. USE INFORMATION section of this manual. INCORRECT FAULTY  Your barbecue is not designed to be used REGULATOR BOTTLE with more than 50% of the cooking area as a DANGEROUS AND WILL INVALIDATE ANY solid plate — this includes baking dishes. WARRANTY.
  • Page 19 Flare-Up Control *Very Important Notice* barbecue body and place near rightmost burner porthole. Flare-ups occur when meat is barbecued, and  Push and turn the rightmost control knob its fat and juices fall upon the hot flame tamer. Smoke of course helps give food its barbecued anti-clockwise to the high position, taking flavour, but it is best to avoid excessive flare-up care to protect yourself from the flames.
  • Page 20: Care And Maintenance

    burners on the ―low‖ position and burn for 5 Do not use scouring pads or powders as they minutes. This procedure will burn off cooking can permanently damage the finish. Rinse well residue, thus making cleaning easier. Make and dry thoroughly. Due to the weight of the sure the hood or lid is open during this process.
  • Page 21 Flame Tamer in a dry, well-ventilated area, away from any Remove any food residue from the flame tamer sources of heat or ignition. Do not let children surface with a plastic or wooden scraper or tamper with the bottle. brass wire brush. Do not use a steel scraper or wire brush.
  • Page 22: Technical Specifications

    Technical Specifications NOTES: Heat Injector Burners Input Size Consumption ® Outback Butane:480g/hr Omega 200 6.6kW 0.89mm Propane:472g/hr Gas Barbecue ® Outback Butane:480g/hr Omega 250 6.6kW 0.89mm Propane:472g/hr Gas Barbecue Butane:167g/hr Side Burner 2.3kW 0.74mm Propane:165g/hr CE Approval Pin Number: 2575DM30423...
  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 24 The product has not sustained damage through foreign objects, substances or accidents.  The care and maintenance instructions given in your Outback manual have been followed.  If the product includes one or a number of parts or accessories, only the defective accessory or part will be replaced i.e.
