Omega 100, Omega 200, and Omega 300 Gas Barbecues

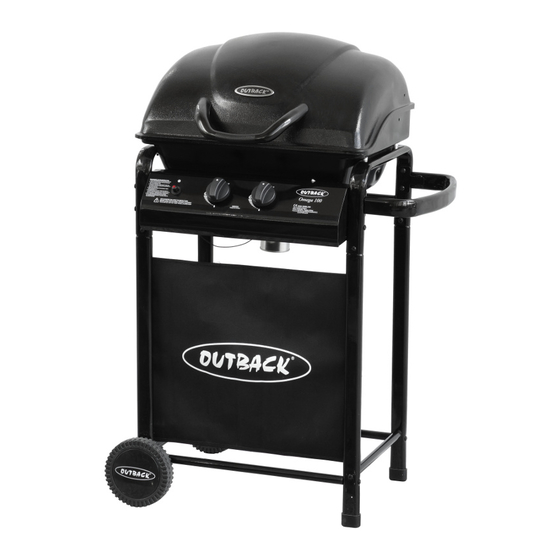

Omega 100
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
•
•
•
•
•
WARNING
•
•

FOR YOUR SAFETY

If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Gas Barbecues
Assembly and Operating Instructions for
Omega 200
For outdoor use only.
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the
instructions may be dangerous and will invalidate your warranty. This does
not affect your statutory rights.
Retain these instructions for future reference.
Leak test your barbecue annually. Check the hose connections are tight and
leak test each time you reconnect the gas bottle.
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or
any other appliance.
2.
A gas bottle not connected for use shall not
be stored in the vicinity of this or any other
appliance.
Omega 300
0359
