Outback® Omega 150 and Omega 250 Gas Barbecues
Omega 150
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Assembly and Operating Instructions for
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the gas
bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.

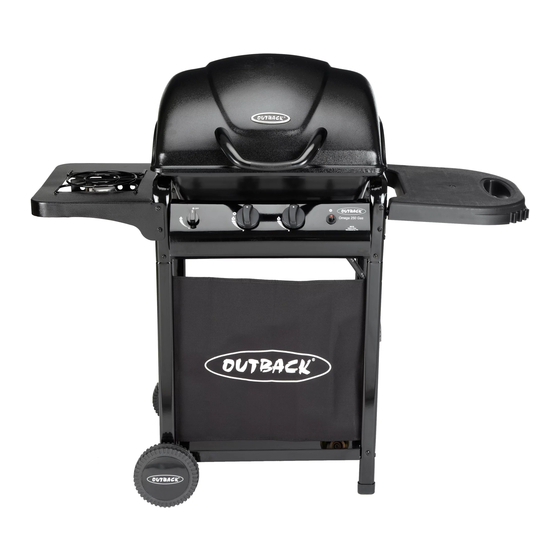

Omega 250
FOR YOUR SAFETY
1.
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
EN (Europe)
0359

Advertisement

Table of Contents
loading

Related Manuals for Outback omega 150

Summary of Contents for Outback omega 150

  • Page 1 Assembly and Operating Instructions for Outback® Omega 150 and Omega 250 Gas Barbecues EN (Europe) Omega 150 Omega 250 Photographs are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use.

  • Page 2: Parts List

    Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. OUTBACK® OUTBACK® CODE PART OMEGA 150 OMEGA 250 Hood (Pre-Assembled to Body)   Hood Hood Handle ...
  • Page 3 2.1. Parts Diagram: Omega 150 Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Pre-assembled body unit includes the following individual parts: B1 B2...
  • Page 4 2.2. Hardware Reference Diagram: Omega 150 Specifications subject to change without prior notice. D3, D8 D5, D8, D9, D10...
  • Page 5 3.1. Parts Diagram: Omega 250 Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Pre-assembled body unit includes the following individual parts: B1 B2 B7 B8 B9...
  • Page 6 3.2. Hardware Reference Diagram: Omega 250 Specifications subject to change without prior notice. D3, D8 D4, D8 D5, D8, D9, D10 D6, D8...
  • Page 7 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp edges are present. Please read the Important Information section carefully before assembly and use of your barbecue.  Omega 150  Omega 250  Omega 150  Omega 250 CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpect- edly or becomes damaged when it is set on the ground.
  • Page 8  Omega 150  Omega 250 Ensure that the legs with the Velcro attached to them are at the front of the barbecue, facing inwards.  Omega 150  Omega 250...
  • Page 9  Omega 150 Omega 250   Omega 250 users skip this step and proceed directly to Step 7.  Omega 150 Omega 250 ...
  • Page 10 Omega 150  Omega 250   Omega 150 users skip this step and proceed directly to Step 8.  Omega 150  Omega 250...
  • Page 11 Omega 150  Omega 250   Omega 150 users skip this step and proceed directly to Step 12. D5 D9 D10 D8  Fit the side burner venturi tube over the gas valve outlet. This is a loose fit and not a gas tight seal.
  • Page 12 Omega 150  Omega 250   Omega 150  Omega 250  Insert grease cup into wire cup holder.
  • Page 13  Omega 150  Omega 250  Omega 150  Omega 250...
  • Page 14 Retighten all joints Repeat test If bubbles form again do not use the barbecue and contact your local Outback distribu- tor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints and...

  • Page 15: Gas, Regulator And Hose

    5. Important Information  Do not use aerosols near this barbecue.  Failure to follow the manual’s instructions Please read these instructions carefully before could result in serious injury or damage. assembly and use of your barbecue.  Modification barbecue dangerous, is not permitted and will nullify any warranty.

  • Page 16: Operation

    (cigarettes, open flames, spark etc.). Keep this high position. Press the ignition button rapidly barbecue away from any flammable materials! several times until left portion of the burner is lit. 7.2. Precautions If burner fails to ignite after following above Do not obstruct any ventilation openings in the procedure, turn all the knobs to the off position.
  • Page 17 -burner grid. flare-up to prevent food being burned. To control flare-ups, it is ABSOLUTELY ESSENTIAL to trim away excess fat from meat and poultry before 8.6. Grill Cooking grilling, use cooking sauces and marinades The burners heat up the flame tamer / lava rock sparingly and try to avoid very cheap cuts of meat underneath the grill, which in turn heats the food or meat products as these tend to have a high fat...

  • Page 18: Care And Maintenance

    When heavy build up is found. outside for any length of time, especially during the winter months. Heavy-duty Outback® barbecue Provided that they are operating correctly, in covers and other accessories are available from normal usage, burning off the residue after your local Outback®...

  • Page 19: Technical Specifications

    30 mbar LPG mixture Regularly remove excess grease or fat from the Gas Consumption: barbecue body using a cloth wrung out in hot Omega 150: 446g/hr Omega 250: 446g/hr soapy water and dry thoroughly. Excess fat and Side Burner: 165g/hr food debris can be removed from inside the body using a soft plastic or wooden scraper.

  • Page 20: Troubleshooting

    11. Troubleshooting Problem Possible Cause Solution Burner will not light using the LP gas bottle is empty Replace with full bottle ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is Reconnect wire...
