Item
transmission distance
Table9-7 Allowed maximum tensile force and crush load
Period of force
Short period
Long term
Fiber connectors are indispensable passive components in an optical fiber communication system.
They allow the removable connection between optical channels, which makes the optical system
debugging and maintenance more convenient. There are multiple types of fiber connectors.

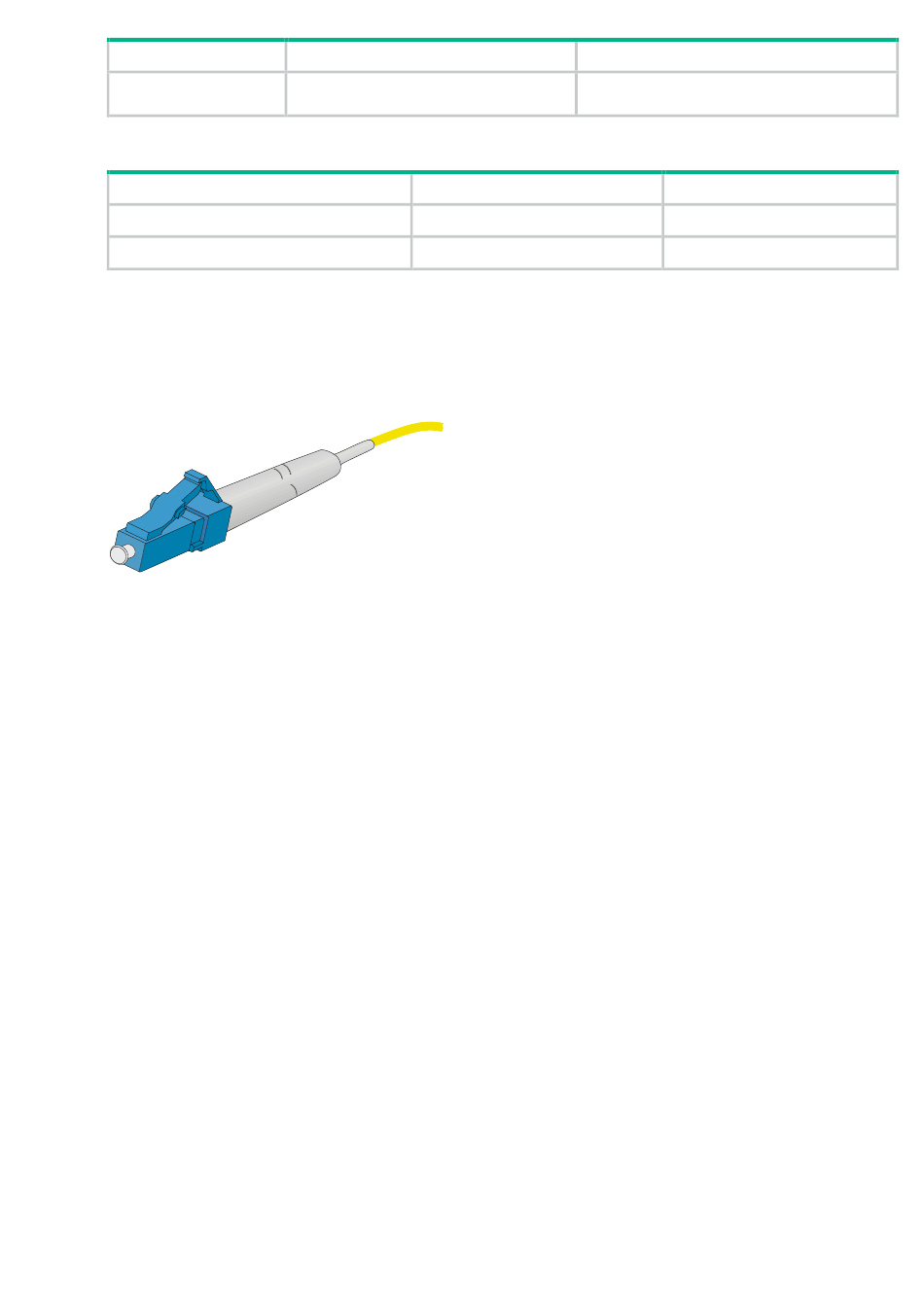

Figure9-6 shows an LC connector.
Figure9-6 Appearance of an LC connector
Follow these guidelines when you connect an optical fiber:
•
Before connecting an optical fiber, make sure the connector and cable type match the interface
module.
•
The fiber Ethernet port of the firewall supports only the LC connector.
•
Fiber connectors are fitted with dust caps. Keep the dust caps secure when the fiber connectors
are in use. Install dust caps when the fiber connectors are not in use to avoid damage to their
end face. Replace the dust cap if it is loose or polluted.
•
Before connecting an optical fiber, use dust free paper and absolute alcohol to clean the end
face of the two fiber connectors. You can brush the end faces only in one direction.
•
Never bend or curve a fiber when connecting it.
•
If the fiber has to pass through a metallic board hole, when passing through a metallic board
hole or bending along the acute side of mechanical parts, the fiber must wear jackets or
cushions.
Single mode fiber
within campus backbones for distance
of several thousand meters
Tensile load (N)
150
80
9-6
Multi-mode fiber
LANs or distances of a couple hundred
meters within a campus network
Crush load (N/mm)
500
100
