Appendix A Chassis views and
technical specifications

Chassis views

F1000-AI-10
The F1000-AI-10 firewall provides the following ports on the front panel:
•
Eighteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Two 10GBASE-R fiber ports.
•
Two management Ethernet ports.
•
Four bypass ports.
•
Eight combo interfaces.
•
One console port.
•
Two USB ports.
•
One reset button.
•
Two drive slots.

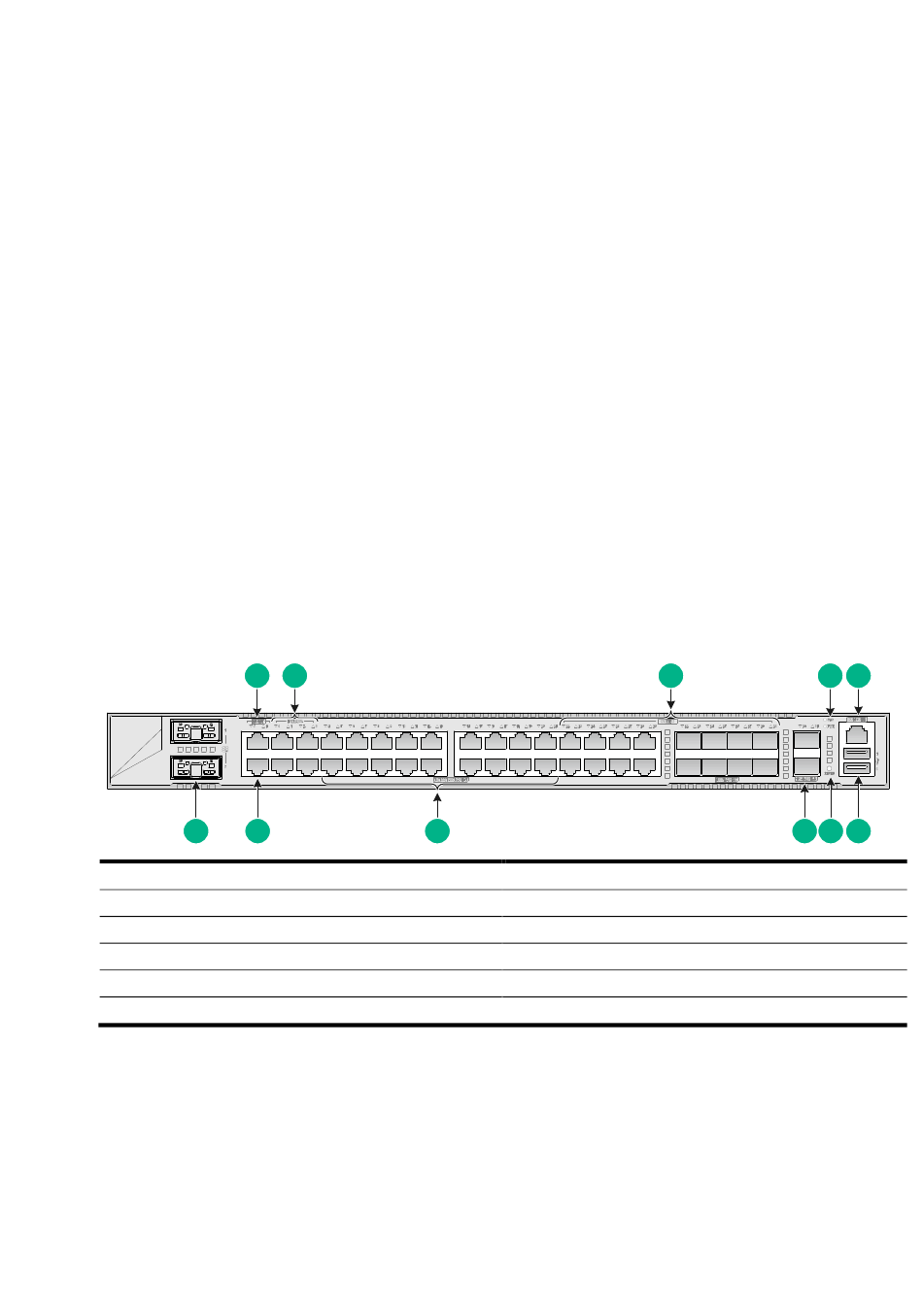

Figure7-1 Front panel
11
(1) Management Ethernet port (0/MGMT)
(3) Combo interfaces
(5) Console port
(7) Reset button
(9) 10/100/1000BASE-T copper ports
(11) Hard disk slots
1 2
10 9
(2) Bypass ports
(4) LEDs
(6) USB ports
(8) 10GBASE-R fiber ports
(10) Management Ethernet port (1/MGMT)
1
3 4
8 7
5
6
