The firewall comes with the PWR1 slot empty and the PWR0 slot installed with a filler panel.

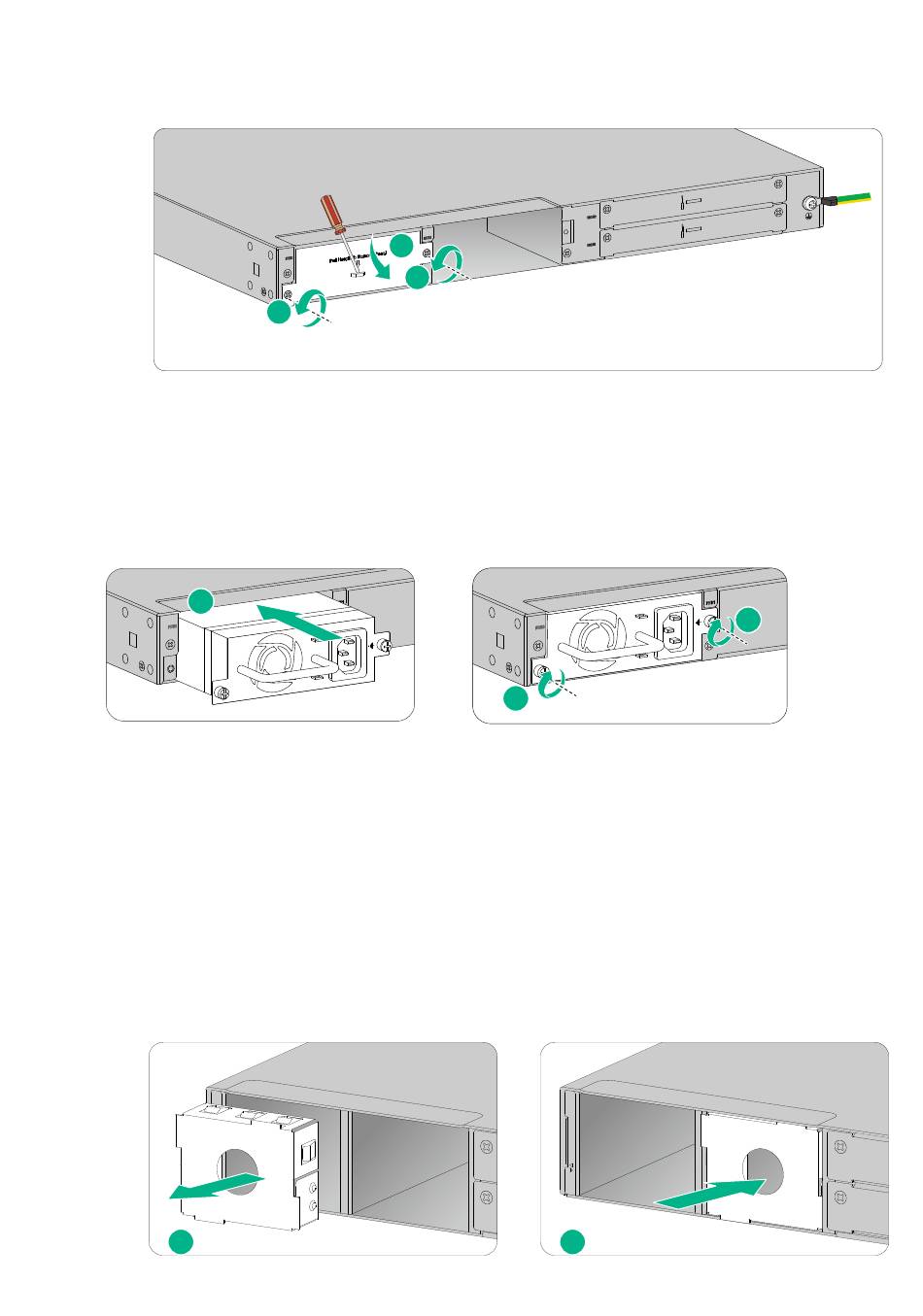

Figure2-14 Removing the filler panel from an F1000-AI-20, F1000-AI-30, or F1000-AI-50
firewall
3. Orient the power supply with its handle at the left. Holding the handle of the module with one
hand and supporting the module bottom with the other, slide the power supply slowly into the
slot along the guide rails.
4. Use a Phillips screwdriver to fasten the captive screws on the power supply to secure the power
supply in place.
Figure2-15 Installing a power supply for an F1000-AI-20, F1000-AI-30, or F1000-AI-50 firewall
Installing a power supply for an F1000-AI-60, F1000-AI-70,
F1000-AI-80, or F1000-AI-90 firewall
1. Face the rear panel of the firewall.
2. Remove the filler panel (if any) from the target power supply slot.
The firewall comes with the PWR1 slot empty and the PWR0 slot installed with a filler panel.
Figure2-16 Removing the filler panel from an F1000-AI-60, F1000-AI-70, F1000-AI-80, or
F1000-AI-90 firewall
