Appendix C Cables

Console cable

RJ-45 to DB9 console cable

An RJ-45 to DB9 console cable is used to connect the console port on the firewall to the serial port on
a configuration terminal (a PC for example):
•
Connect the DB9 female connector of the cable to the 8-core serial port on the configuration
terminal.
•
Connect the RJ-45 connector of the cable to the console port on the firewall.

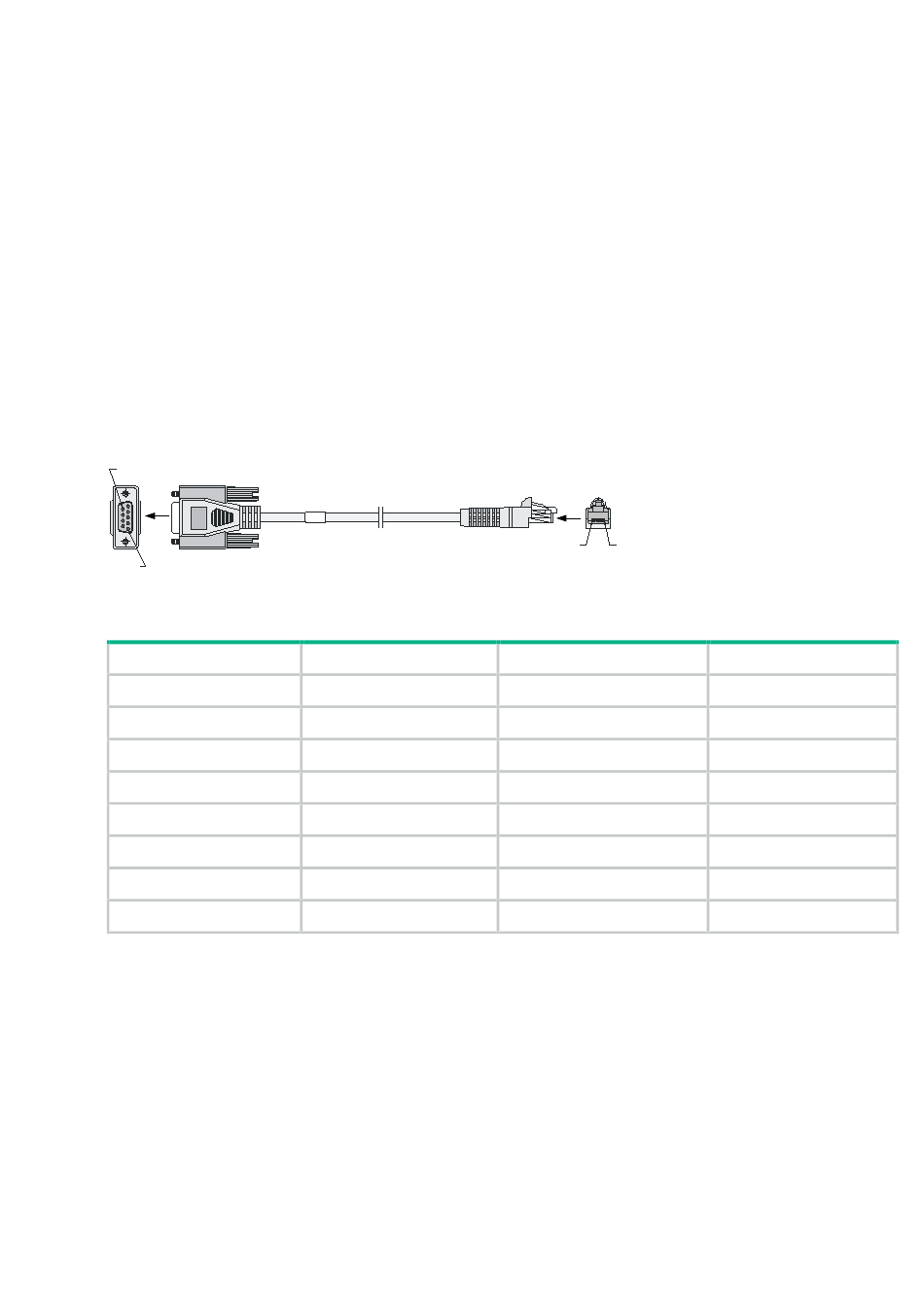

Figure9-1 RJ-45 to DB9 console cable
A
Pos.9
A
Pos.1
Table9-1 RJ-45 to DB9 console cable pinouts
RJ-45
1
2
3
4
5
6
7
8

Micro USB console cable

A micro USB console cable is used to connect the micro USB console port on the firewall to the USB
port on a configuration terminal (a PC for example):
•
Connect the USB Type A connector of the cable to the USB port on the configuration terminal.
•
Connect the USB Type mini-A/B connector to the micro USB console port on the firewall.
W
Signal
RTS
DTR
TXD
CD
GND
RXD
DSR
CTS
9-1
B
B
Pos.1 Pos.8
Direction
←
←
←
→
-
→
→
→
DB-9
7
4
3
1
5
2
6
8
