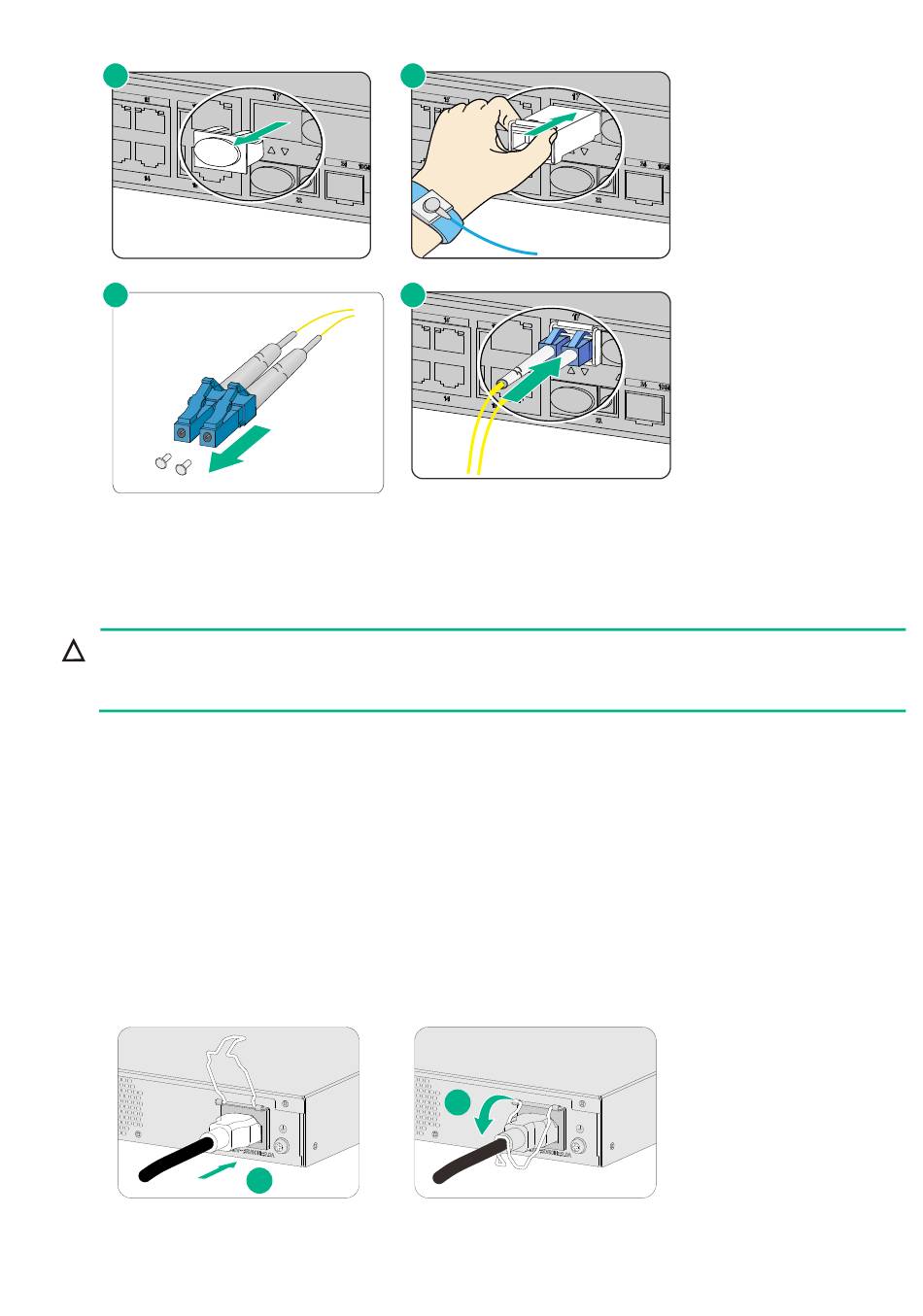

Figure2-24 Installing and connecting an optical fiber
1
3
Connecting power cords
CAUTION:
Make sure the grounding cable of the firewall is correctly connected and the power source is
powered off before connecting the power cord.
Connecting an AC power cord
Connecting an AC power cord for an F1000-AI-10 firewall
1.
Attach the hooks of the power cord retainer clip into the holes on the top of the AC-input power
receptacle, and pull the power cord retainer clip upwards.
2.
Connect one end of the AC power cord to the AC-input power receptacle on the firewall.
3.
Pull the power cord retainer clip downwards and secure the connector to the power receptacle.
4.
Connect the other end of the power cord to an AC power source.
Figure2-25 Connecting an AC power cord for an F1000-AI-10 firewall
2
4
1
2
22
