10.6

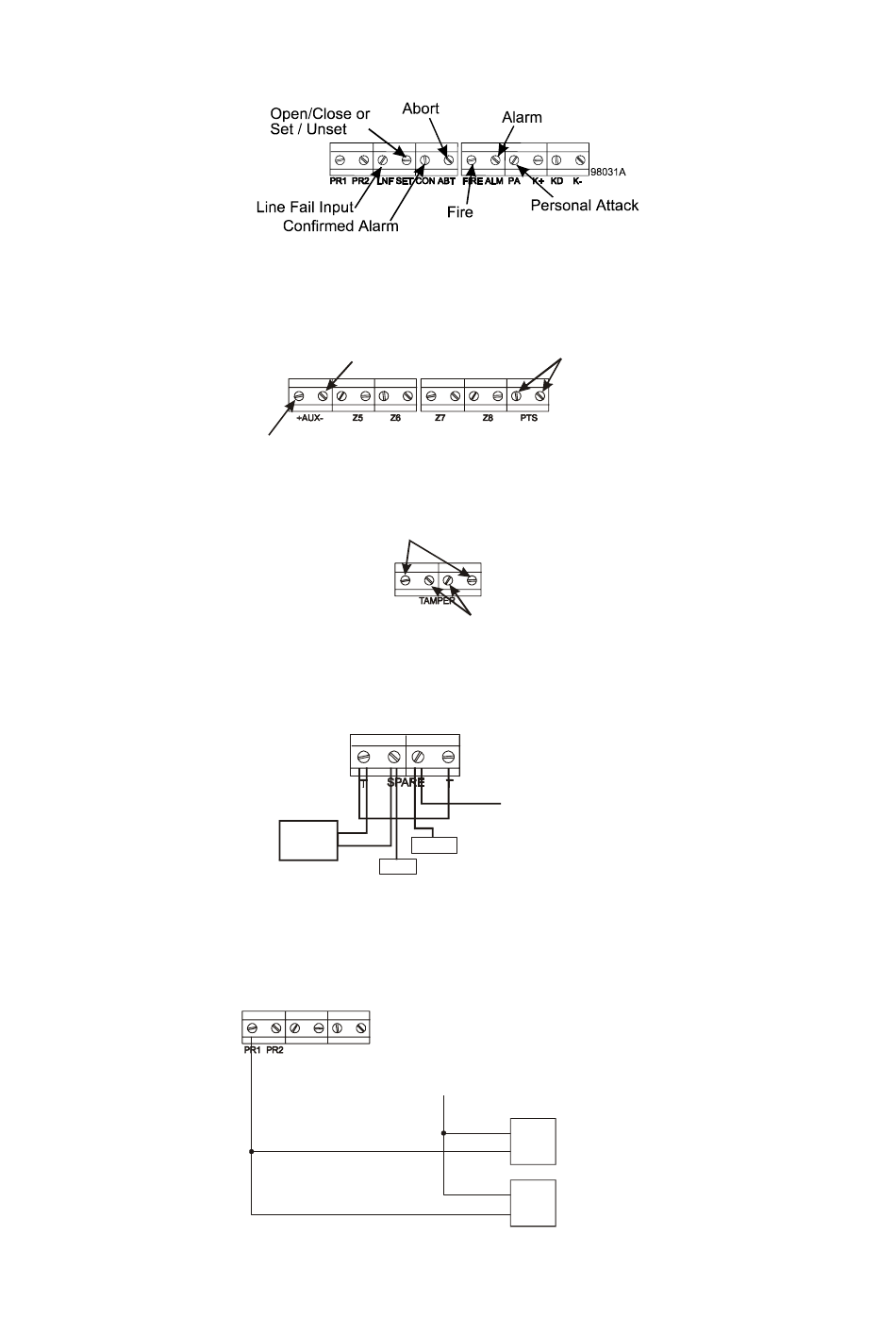

Digital Communicators

The Digital communicators may be programmed to switch between 0 to 12 volts or 12 to 0 volts depending upon how the
system options are programmed.
10.7

Auxiliary and Push To Set

The Push To Set or door bell switch must be a normally open contact switch.
10.8

Tamper

The Atlas has a dedicated tamper connection. The two outer connections should be used for tamper feed and return and
the middle connections used for tamper loop.
10.9

Tamper Connection for Bell Box's with Negative Removed Tamper

If the panel is to be connected to a bell box with negative (-) removed tamper, the above connections must be made.
Note: Select Global Tamper Negative Return in System Option 21 when wired this way.
10.10

Shock Sensors

Wiring for shock sensor re-set.
Up to 20 shock sensors wired in parallel, may be used with the Atlas panel (on output 1 only).
Page 24
Auxiliary Negative (-)
Auxiliary Positive (+)
Tamper 1
Panel
Tamper
KT
Push To Set
Spare
Bell Box
Negative Tamper
KTR
Aux +
+
Shock Sensor
-
+
Shock Sensor
-
