- Page 1 INSTRUCTION MANUAL PELLET HEATING STOVES AND PELLET STOVES HYDRO KANTINA 20/24 KW HYDRO CURVED FRONT 20/24 KW HYDRO STRAIGHT FRONT 20/24 KW HYDRO 13/17.5 KW EV 14 EV 20 EV 24 EV 34 EV 50...
- Page 2 IMPORTANT: PLEASE READ Eva Stampaggi S.r.l. assumes no responsibility for damage to persons and/or property or for the malfunction of the stove resulting from non-compliance with the provisions of this Instruction Manual The guarantee will remain valid for 1 year for professional operators and 2 years for consumers.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PRODUCT SAFETY…………………………………………………………………………………………………...…………….. p. 3 GENERAL SAFETY REGULATIONS…………………………………………………………………………………………………… p. 3 PRODUCT DESCRIPTION……………………………………………………………………..……………………………………... p. 5 03.01 CURVED AND STRAIGHT HYDRO FRONT STOVE 20/24 KW……………………………………………………………. p. 5 03.02 KANTINA HYDRO STOVE 20/24 KW…………………………………………………………..……………………....p. 5 03.03 TECHNICAL DATA………………………………………………………………………………………………………………. p. 6 03.04 HYDRO 13 KW……………………………………………………………………………………………………………………... -
Page 4: Product Safety
Read this manual carefully before use or any maintenance operation. Eva Stampaggi aims to provide as much information as possible to ensure safer use and to avoid damage to persons, property or parts of the stove itself. Each stove is subjected to internal testing before shipment and as such residues inside the appliance may be found. - Page 5 Make sure that the stove is transported in compliance with safety regulations. Avoid any improper transfers or knocks that may damage the ceramics or the structure. The metal structure is coated using high temperature paints. When using the appliance for the first few times, unpleasant odours may be given off due to the paint of the metal parts that is drying: this is in no way dangerous and in such case, simply ventilate the premises.
-
Page 6: Product Description

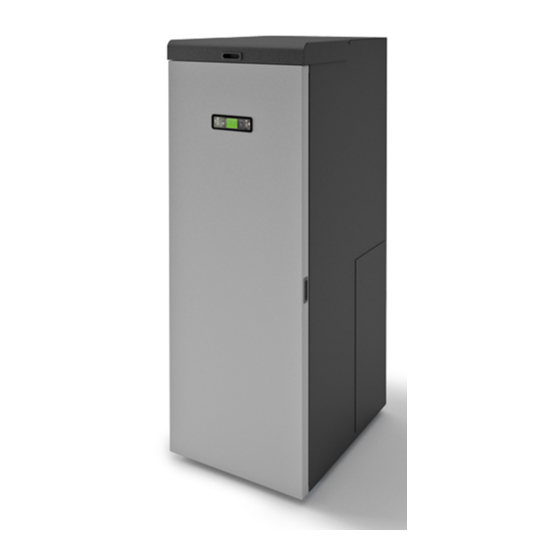

Kantina is available in the 20 kW or 24 kW version, providing ample power to ensure optimal heating of rooms. The discharge can be upwards or to the rear, is fitted with remote control, daily programming and the possibility of operating according to the temperature of the water or the room. HYDRO KANTINA 20/24 KW TECHNICAL DRAWING... -
Page 7: Technical Data
03.3 TECHNICAL DATA Technical data of the CURVED FRONT CURVED FRONT HYDRO KANTINA 20 HYDRO KANTINA appliance: HYDRO 20 HYDRO 24 24 KW Dati tecnici dell’apparecchio: KW/STRAIGHT KW/STRAIGHT FRONT HYDRO 20 FRONT HYDRO 24 Designation: Nominal Reduced Nominal Reduced Nominal... -
Page 8: Hydro 13 Kw
03.4 HYDRO 13 KW Refined and efficient. It is a 13 kW heating stove which, with its refined line and its compact dimensions, becomes a discreet piece of furniture. The small fan on board allows very rapid heating of the environment in which it is installed. TECHNICAL DRAWING 03.5 HYDRO 17.5 KW TECHNICAL DRAWING... -
Page 9: Technical Data
03.6 TECHNICAL DATA Technical data of the appliance: SPH13 SPH17 Dati tecnici dell’apparecchio: Designation: Nominal heat Nominal heat Reduced Reduced output output heat output heat output Designazione: Potenza Potenza Potenza Potenza termica termica termica ridotta termica ridotta nominale nominale Fuel throughput 0.72 Consumo orario (kg/h) Minimum flue draught requirements... -
Page 10: Pellet Stove Ev14 - Ev20 - Ev24
03.8 EV14 - EV20 - EV24 PELLET STOVE It reaches class 5 (EN 303-5:2012) and achieves the highest performance. The most evident characteristics include: very compact, rear or high fume exhaust, self- cleaning burn pot, convenient separate opening of the ash drawer at the bottom, unburned pellets conveyor system to optimise combustion and to reduce emissions, a recirculation pump, expansion vessel and safety valve. -
Page 11: Technical Data
03.9 TECHNICAL DATA Technical data of the appliance: EV 14 EV 20 EV 24 EV 34 EV 50 Dati tecnici dell’apparecchio: Designation: Designazione: Fuel throughput Kg/h 2.95 4.08 1.18 5.08 1.18 7.14 1.97 2.48 Consumo orario Minimum flue draught requirements Requisiti minimi del tiraggio del camino Flue gas temperature °C... -
Page 12: Component Description (Hydro)
03.10 DESCRIPTION OF THE COMPONENTS (HYDRO) HYDRO 20 – 24 KW Electronic pump Pressure transducer 3 bar safety valve Heating delivery Heating return Expansion vessel Fume motor Depressor Manual reset thermostat 10- Automatic vent valve HYDRO 13 – 17.5 KW Electronic pump Pressure transducer 3 bar safety valve... -
Page 13: Minimum Installation Requirements
Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by non-compliance with the requirements for installation of the stove and/or tampering with it. -
Page 14: Flue Pipe
05. FLUE PIPE CHARACTERISTICS OF THE FLUE PIPE (HYDRO) HYDRO 20 KW CURVED AND STRAIGHT HYDRO FRONT. 24 KW HYDRO KANTINA 20 KW FRONT CURVED/STRAIGHT Chimney flue draught 12 Pa Chimney flue draught 13 Pa Chimney flue draught Fume temperature 154 °C... -
Page 15: Chimney
05.1 CHIMNEY COWL A properly installed chimney cowl ensures optimum stove operation. The anti-downdraught chimney cowl consists of a number of components whose outlet section sum always doubles the flue pipe section. Make sure the chimney cowl is at least 150cm above the roof rise so that it is fully exposed to the wind. The chimney cowls must: ... -
Page 16: Installation Warnings
06. INSTALLATION WARNINGS By using coaxial tubes, the air will be pre-warmed contributing to improved combustion and lower emissions into the atmosphere. Before installing, the following indications must be met: Select the position where the stove is to be installed and: ... - Page 17 INSTALLATION EXAMPLES HYDRO EV STOVE coupling EXAMPLES OF INCORRECT INSTALLATION:: Exhaust pipes must never be fitted pointing downwards or horizontally so that fumes are discharged directly through the external wall.
-
Page 18: Hydro Stove System Diagrams/Connections
06.1 HYDRO STOVES CONNECTION/SYSTEM DIAGRAMS. -
Page 20: Ev Stove System Diagrams/Connections
06.2 EV STOVE SYSTEM CONNECTION/DIAGRAMS... - Page 21 SYSTEM TYPE (EV STOVES) Inside the electronic control unit there is the SYSTEM TYPE function (ask the installer technician). This function offers the choice of 2 types of system: The stove works based on the stove temperature, room temperature or thermostat The stove works on the basis of a probe for the PUFFER.
-
Page 22: Hydro Stove Installation
07. HYDRO STOVE INSTALLATION In compliance with the current installation regulations, the pellet heating stove should be installed in a ventilated place with air that is sufficient to ensure correct combustion and therefore good operation. The room must have a volume no less than 20 m . -
Page 23: The Menu
CONSOLE DESCRIPTION BUTTON 1 (P1) - Temperature increase: When in programming mode, use this button to modify/increase the selected menu value. When in working mode/switched off, use instead this button to increase the stove temperature value. BUTTON 2 (P2) - Temperature decrease: When in programming mode, use this button to modify/decrease the selected menu value. -
Page 24: User Functions
Approaching the water set, the stove goes into modulation and when the set is passed, the stove goes into modulation and then stand-by. Below water set the stove comes on again and resumes operation. The stove in no way considers the temperature measured by the ambient sensor of the same stove. Water takes priority. -
Page 25: Hydro Stove Alarms
Cleaning the burn pot When the stove is in the working mode, the “BURN POT CLEANING” mode is activated for the period set by Pr12 parameter at the intervals set by Pr03 parameter. Stove switch off Hold down P4 button for approx. 2 seconds to switch off the stove. The Auger tube stops immediately and the exhaust blower reaches its maximum speed value. The FINAL CLEANING phase is performed. -
Page 26: Hydro Stove Connections
General thermostat alarm In the event that the safety thermostat detects a temperature above the trip threshold, the same intervenes to disconnect the auger (whose power supply is in series) and simultaneously, through terminal AL 1 in CN4, allows the controller to acquire this change of state. -
Page 27: Cleaning And Routine Maintenance
Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by the failure/incorrect cleaning and routine maintenance of the stove. -
Page 28: External Thermostat
12.4 EXTERNAL THERMOSTAT In these stoves it is possible to install an external thermostat. This operation may only be performed by authorised personnel. Use a 2-pole cable with everyday double insulation. Connect the 2 poles to connector 7 of the electronic board. In the event that the thermostat is closed, the stove functions at the power set. If the thermostat opened, the stove would work in MODULATE mode until the thermostat closed. -
Page 29: The Menu
When in programming mode, use this button to modify/increase the selected menu value. When in working mode/switched off, use instead this button to increase the stove temperature value. By keeping button P1 pressed, the pellet loading seconds and the actual stove power will be displayed. BUTTON 2 (P2) - Temperature decrease: When in programming mode, use this button to modify/decrease the selected menu value. -
Page 30: User Functions
Menu 04 – STAND-BY MODE – ACTIVATE MODE 2 If you select the “STAND-BY” mode, the stove switches off after a period of time, set by Pr44, during which the room temperature remains at a value higher than the SET temperature. Only if the following condition occurs it is then possible to switch the stove back on: TSET <... - Page 31 Changing set stove temperature To change the room temperature, simply press the P1 button. The display shows the current SET temperature value. External thermostat/chrono-thermostat use If you want to use an external programmable thermostat, connect it to the TERM clamps (connector CN7 pin 7-8). External thermostat ...
-
Page 32: Ev Stove Alarms
14. EV STOVE ALARMS In the event of a malfunction, the control board indicates the problem and activates various procedures depending on the type of alarm. The possible alarm messages are listed below: Display shows Cause (AL C) WATER SENSOR ALARM Water probe broken or shorted (AL D) HOT WATER ALARM... -
Page 33: Ev Stove Connections
15. EV STOVE CONNECTIONS... - Page 34 LEGEND CODE STOVE ELECTRONICS CONTROL UNIT 951095900 MANAGEMENT EXPANSION BOARD MOD.SAN. (only mod with DHW) 951067700 TURBULATORS CONTACT FIREBOX CLEANER CONTACT 505 PRESSURE TRANSDUCER CABLE AUGER MOTOR ENCODER FUME MOTOR ENCODER STOVE PROBE ROOM PROBE EXTERNAL THERMOSTAT FUME PROBE AUGER MOTOR TURBULATORS MOTOR PUMP/CIRCULATOR DOOR/DEPRESSORS CONTACT...
-
Page 35: Hydro/Ev Ordinary Cleaning And Maintenance
Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by the failure/incorrect cleaning and routine maintenance of the stove. -
Page 36: Anomalies And Possible Hydro Stove Solutions
18. HYDRO STOVE ANOMALIES AND POSSIBLE SOLUTIONS PROBLEM CAUSE SOLUTION IT MAY BE NECESSARY TO REPEAT THE FIRST LOAD PHASE A FEW TIMES TO FACILITATE THE APPLIANCE INITIAL START- FIRST START-UP UP AS THE AUGER TUBE IS COMPLETELY EMPTY AND IT MAY TAKE A SPECIFIC PERIOD OF TIME TO FILL. POWER OUTAGE CHECK PLUG AND POWER SUPPLY. - Page 37 STOVE TEMPERATURE TOO LET STOVE COOL DOWN, MANUALLY RESET THERMOSTAT ON BACK. IF THE HIGH PROBLEM REMAINS UNSOLVED, CONTACT A SPECIALISED TECHNICIAN. TEMPORARY POWER LET STOVE COOL DOWN, MANUALLY RESET THERMOSTAT ON BACK. SWITCH OUTAGE STOVE ON AGAIN. ALARM SIC FIREBOX FAULTY EXCHANGER CALL TECHNICAL SUPPORT.
-
Page 38: Anomalies And Possible Ev Stove Solutions
19. EV STOVES ANOMALIES AND POSSIBLE SOLUTIONS PROBLEM CAUSE SOLUTION IT MAY BE NECESSARY TO REPEAT THE FIRST LOAD PHASE A FEW TIMES TO FACILITATE THE APPLIANCE INITIAL FIRST START-UP START-UP AS THE AUGER TUBE IS COMPLETELY EMPTY AND IT MAY TAKE A SPECIFIC PERIOD OF TIME TO FILL. WATER SENSOR WATER SENSOR FAULT CALL TECHNICAL SUPPORT. - Page 39 SET ROOM TEMPERATURE INCREASE SET ROOM TEMPERATURE SO THAT APPLIANCE GOES BACK TO DISPLAY DOES NOT WORK REACHED "WORKING" MODE. PERIODIC CYCLE OF BURN BURN POT CLEANING CORRECT OPERATION. POT CLEANING EXCESSIVE OR INADEQUATE FLUE PIPE NON-COMPLIANT VENT PIPE. LENGTH CLOGGED OUTLET CLEAN FLUE PIPE/CALL AUTHORISED TECHNICIAN.
-
Page 40: Annual Scheduled Maintenance
20. YEARLY SCHEDULED MAINTENANCE Date 1st maintenance ____________/____________ / (Technical Assistance Centre stamp) Date 2nd maintenance ____________/____________ / (Technical Assistance Centre stamp) Date 3rd maintenance ____________/____________ / (Technical Assistance Centre stamp) 10. CERTIFIES... -
Page 41: Installation And Test Certification
21. CERTIFICATE OF INSTALLATION AND TESTING CERTIFICATE OF INSTALLATION AND TESTING CUSTOMER: _______________________________________ Dealer Stamp: STREET/ROAD: ____________________________________________ CITY: _________________________________________ Installer stamp: POSTAL CODE: ___________________________________________ PROVINCE: _____________________________________ TEL: ____________________________________________ First name: __________________________________________ Delivery date: _________________________________ Last Name: _______________________________________ Delivery date: ____________________________ Address: ______________________Postal Code: _____________ Equipment mod.: _________________________________ Location: _________________________________________... -
Page 42: Warranty
Eva Stampaggi S.r.l. guarantees that the stove is free from defects that make it unsuitable for its intended use or significantly reduce its value. The rules of the Italian Civil Code or applicable national law governing the guarantee in the sales contract, or applicable national law ex D. Int. - Page 43 Tel: +39 0438 740433 Fax: +39 0438 740821 I dati e le caratteristiche indicate non impegnano Eva Stampaggi S.r.l., che si riserva il diritto di apportare le modifiche ritenute opportune senza obbligo di preavviso o di sostituzione. Tutti i diritti riservati. Vietata riproduzione totale o parziale senza espressa autorizzazione di Eva Stampaggi S.r.l.
