Summary of Contents for EVA Stampaggi SILENCE 9

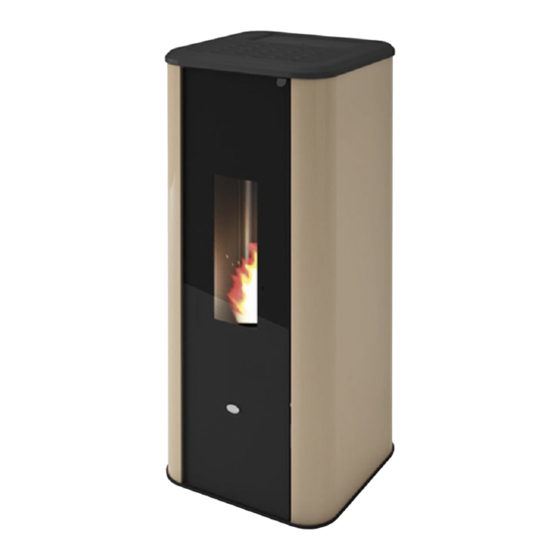

- Page 1 INSTRUCTION MANUAL SILENCE 9 SILENCE 11...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT DESCRIPTION………………………………………………………………………………………………………………. page 3 PRODUCT INSTALLATION..…….……………………………………………………………………………………………………… page 4 USING THE PRODUCT……………………………...………………………………………………………………………………….. page 7 USER FUNCTIONS……………………………...……………………………………………………………………………………….. page 8 ALARMS……………………………...…………………………………………………………………………………………………… page 9 INTRODUCTION………………...……………………………...………………………………………………………………………… page 10 CONNECTIONS………………………………………...………………………………………………………………………………… page 11... -
Page 3: Product Description
01. PRODUCT DESCRIPTION TECHNICAL DRAWING SILENCE 9 / SILENCE 11 TECHNICAL DATA: Technical data of the appliance: SILENCE 9 SILENCE 11 Dati tecnici dell’apparecchio: Nominal heat Reduced heat Nominal heat Reduced heat Name: output output output output Designazione: Potenza termica... -
Page 4: Product Installation
02. INSTALLING THE PRODUCT 02.1 FLUE PIPE FLUE PIPE SPECIFICATIONS STOVE SILENCE 9 KW STOVE SILENCE 11 KW Chimney flue draught 12 Pa Chimney flue draught Fume temperature 147 °C Fume temperature 146 °C Maximum flue gas flow rate 5.9 g/s Maximum flue gas flow rate 6.1 g/s... - Page 5 02.4 EXTERNAL THERMOSTAT In this product it is possible to install an external thermostat. This operation may only be performed by authorised personnel. Use a 2-pole cable with everyday double insulation. Connect the two pins to the connector of the CN7 electronic board pins 7-8. Enabling the external thermostat by bringing to room temperature, T-ON will be present when the thermostat prompts and T-OF when the thermostat is satisfied.
- Page 6 03. PRODUCT USE 03.1 RADIO CONTROL Proper functioning and control adjustment devices Console The remote control displays information regarding the operating status of the stove. A variety of data can be displayed and settings carried out according to the level of access by using the menu. Depending on the selected mode and on their position on the display, the data visualised may acquire different meanings. PANEL DESCRIPTION Button P1 –...
-
Page 7: Using The Product
03.2 EMERGENCY CONSOLE The emergency console is used when the remote control does not work or in case of loss of the latter. Button P1 – ON/OF: Keeping this button pressed, the stove will switch on or off according to the last settings recorded by the remote control. Button P2 –... -
Page 8: User Functions
Sub-menu M3 – 4 – Chrono week-end It is used to enable/disable and to set the chronothermostat functions on weekends (days 6 and 7, i.e. Saturday and Sunday). To enable, press the P1 and P2 buttons. Setting the times Start 1 and Stop 1 sets the operating period for Saturday, while Start 2 and Stop 2 are used to set the stove operation for Sunday. -
Page 9: Alarms
Stand-by When enabled in the menu, the Stand-by function allows the stove to be switched off after complying with the following conditions. It is enabled if, for a certain time, the room temperature is higher than the set temperature (Room set) plus a pre-set temperature delta. “OK STBY” appears on the display. At the end of the set time, the message “COOLING WAIT”... -
Page 10: Introduction
06. INTRODUCTION The stove requires a simple yet constant cleaning to guarantee top efficiency and proper functioning. Constant maintenance by a qualified technician is recommended. The stove should be cleaned before the cold season because it can sometimes get clogged during the summer (by nests for example) preventing exhaust fumes to flow regularly. -
Page 11: Connections
07. CONNECTIONS CODE CIRCUIT BOARD 951095900 BURN POT CLEANER CONTACT 951067700 ROOM PROBE EXTERNAL THERMOSTAT FUME PROBE AUGER MOTOR EXCHANGER DEPRESSOR CONTACT SAFETY THERMOSTAT CONTACT DOOR CONTACT BURN POT CLEANER MOTOR FUME FAN SPARK PLUG 11 - English... - Page 12 Tel: +39 0438 740433 Fax: +39 0438 740821 I dati e le caratteristiche indicate non impegnano Eva Stampaggi S.r.l., che si riserva il diritto di apportare le modifiche ritenute opportune senza obbligo di preavviso o di sostituzione. Tutti i diritti riservati. Vietata riproduzione totale o parziale senza espressa autorizzazione di Eva Stampaggi S.r.l.
