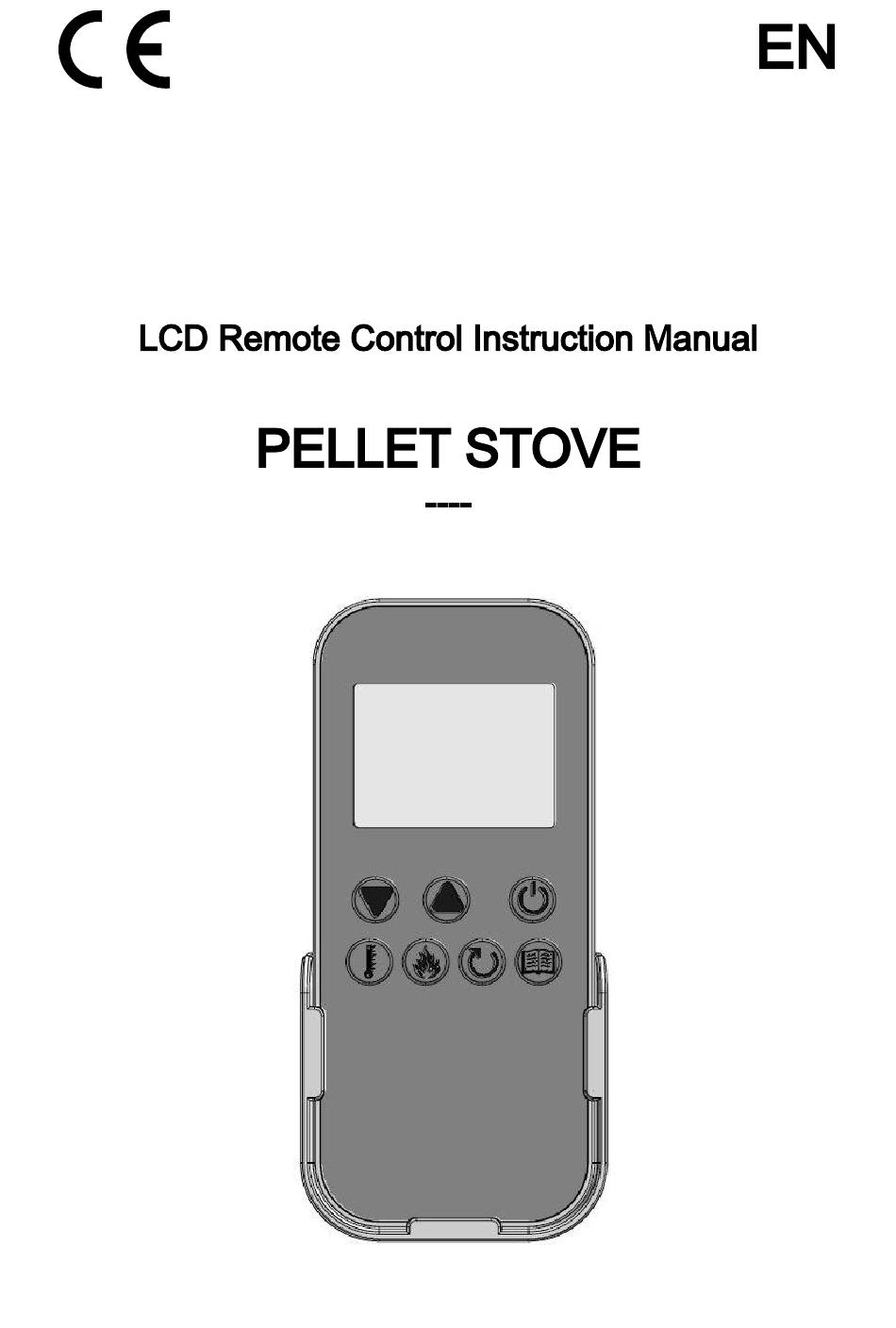

- Page 1 Translation of copy in original language IMPORTANT: MUST BE READ 831085300 rev. 1.0 09/11/2023 LCD Remote Control Instruction Manual PELLET STOVE ----...
- Page 2 LCD Remote Control Instruction Manual ---- - PELLET STOVE TABLE OF CONTENTS 1 PRODUCT DESCRIPTION 1.1 TECHNICAL DATA 1.2 PRODUCT FEATURES 2 USE OF THE PRODUCT 2.1 REMOTE CONTROL 2.2 USER FUNCTIONS 2.3 ALARMS TABLE OF CONTENTS 831085300 - 1.0 - 09/11/2023...
- Page 3 LCD Remote Control Instruction Manual ---- - PELLET STOVE PRODUCT DESCRIPTION TECHNICAL DATA The "TYPE” stove type is indicated on the CE plate, present on the back of the product or inside the openable doors. Stoves Type CORNER INSERT Thermal power (PMAX / PMIN kW) 10.0 / 4.5 Efficiency (PMAX / PMIN %) 88.5 / 93.0...
- Page 4 LCD Remote Control Instruction Manual ---- - PELLET STOVE USE OF THE PRODUCT REMOTE CONTROL The remote control displays information regarding the operating status of the stove. A variety of data can be displayed and settings carried out according to the level of access by using the menu. Depending on the selected mode and on their position on the display, the data visualised may acquire different meanings.
- Page 5 LCD Remote Control Instruction Manual ---- - PELLET STOVE BUTTON (P6) - Return: Used to return to the previous menu. BUTTON (P7) - Set/menu: This button allows access to the user and technical parameters menu. After entering the menu, use this button to access the next sub-menu or set the value and move to the next menu item when in programming mode.
- Page 6 LCD Remote Control Instruction Manual ---- - PELLET STOVE SELECT LANGUAGE menu Use this command to select one of the languages available. SELECT PROBE menu Use this command to select the internal one or that of the remote control FAN MODE menu In this menu it is possible to enable or disable room ventilation at powers P1, P2 and P3 in order to guarantee the greatest possible comfort.
- Page 7 LCD Remote Control Instruction Manual ---- - PELLET STOVE USER FUNCTIONS Standard functioning of a control board properly installed on an air stove is described below with reference to the functions available to users. Stove ignition Hold P3 button down for a few seconds to switch on the stove. The display shows “START or CHECK UP” when the ignition is switched on.
- Page 8 LCD Remote Control Instruction Manual ---- - PELLET STOVE Room temperature reaches the set value (SET temperature) When the set room temperature value is reached, the stove heat output is automatically set to the minimum value. During this phase, the display shows the message “MODULATION”. If room temperature falls below the set value (Set temperature value), the stove will go back to the "Work"...
- Page 9 LCD Remote Control Instruction Manual ---- - PELLET STOVE ALARMS In the event that an operating fault occurs, the board intervenes and signals the occurrence of an irregularity, switching on the alarm LED (alarm LED on) and emitting acoustic signals. The possible alarm messages are listed below: Display shows Cause POWER OUTAGE ALARM...
- Page 10 EVA STAMPAGGI SRL reserves the right to make technical changes to this manual without notice. The data and characteristics indicated do not bind , which reserves the right to make any changes deemed appropriate without obligation of notice or replacement.
