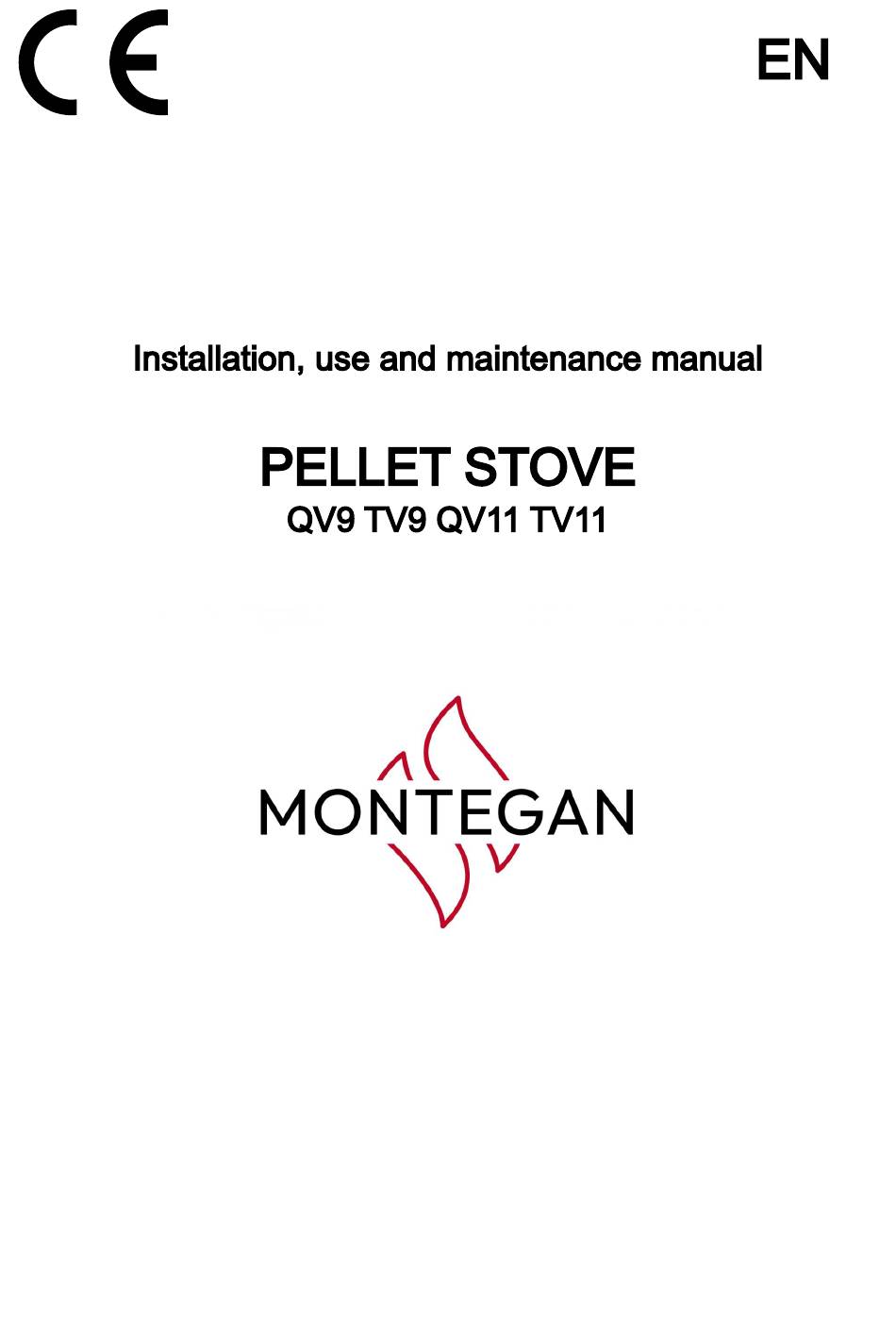

- Page 1 Translation of copy in original language IMPORTANT: MUST BE READ 9510055800 rev. 1.0 12/04/2022 Installation, use and maintenance manual PELLET STOVE QV9 TV9 QV11 TV11...
- Page 2 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE TABLE OF CONTENTS 1 PRODUCT SAFETY 2 HANDLING AND UNPACKING 3 MINIMUM INSTALLATION REQUIREMENTS 4 INSTALLATION 4.1 FLUE PIPE 4.2 CHIMNEY COWL 4.3 DRAUGHT 4.4 STOVE EFFICIENCY 4.5 AIRTIGHT STOVE ONLY 4.6 INSTALLATION PLACE 4.7 CONNECTION TO THE FLUE PIPE 4.8 INSTALLATION EXAMPLES...
- Page 3 Each stove is subjected to internal testing before shipment and as such residues inside the appliance may be found. Eva Stampaggi aims to provide as much information as possible to ensure safer use and to avoid damage to persons, property or parts of the stove itself.
- Page 4 ● Read the manual carefully: ● Eva Stampaggi S.r.l. assumes no responsibility for damage to persons and/or property or for the malfunction of the stove resulting from non-compliance with the provisions of this Instruction Manual ● The guarantee will remain valid for 1 year for professional operators and 2 years for consumers ●...
- Page 5 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE ATTENTION ATTENTION! DO NOT TOUCH the FIRE DOOR, the GLASS, the HANDLE or the FUME OUTLET DURING FUNCTIONING if not wearing adequate protective devices since they become extremely hot! ●...
- Page 6 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE ATTENTION These stoves operate exclusively with pellets and olive pomace if the stove is designed for it; DO NOT USE DIFFERENT COMBUSTIBLES: any other material burned will cause the apparatus to malfunction. ATTENTION Clean the burn pot on a regular basis upon every ignition or pellet refuelling.
- Page 7 INSTALLATION WITH WALL FUME OUTLET IS PROHIBITED. INSTEAD THE FUME OUTLET MUST BE ROOF- TYPE AS PROVIDED FOR BY NATIONAL REGULATIONS. Eva Stampaggi S.r.l. assumes no responsibility for damage to persons and/or property caused by non-compliance with the point highlighted above for products installed in a non-compliant manner.
- Page 8 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE 3 issuing of additional documentation - the installer's responsibility. The release of technical documentation must include: ● use and maintenance manual for the appliance and the components of the system (e.g. smoke channels, chimney flue, etc.);...
- Page 9 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE INSTALLATION FLUE PIPE THE PRODUCTION OF STOVES WITH HIGHER PERFORMANCE IS INCREASINGLY REQUIRED SO IT IS BECOMES ESSENTIAL TO ENSURE THAT INSTALLATIONS COMPLY WITH THE LAW. IF THE VENT PIPE PASSES THROUGH NON-HEATED ENVIRONMENTS, IT MUST BE INSULATED FOR CORRECT COMBUSTION.
- Page 10 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE CHIMNEY COWL A properly installed chimney cowl ensures optimum stove functioning. The anti-downdraught chimney cowl consists of a number of components whose outlet section sum always doubles the flue pipe section. Make sure the chimney cowl is at least 150cm above the roof rise so that it is fully exposed to the wind.
- Page 11 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE DRAUGHT Fumes heat up during combustion, increasing their volume. Their density is therefore lower than the one of the surrounding colder air. This difference between the inside and outside temperatures of the chimney results in a negative pressure which increases proportionally to the vent pipe length and the temperature.
- Page 12 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE ATTENTION Read the manual carefully: Before installing, the following indications must be met: Select the position where the stove is to be installed and: ● Arrange the connection to the vent pipe for fume extraction. ●...
- Page 13 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE INSTALLATION PLACE ATTENTION Read the manual carefully: ● When the stove is on, it can create a depression in the room where it is installed, therefore there must not be any open flame apparatus in the same room, with the exception of type C boilers (airtight).
- Page 14 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE CONNECTION TO THE FLUE PIPE THE LENGTH OF THE FUME DUCT PIPE MUST HAVE A DIAMETER EQUAL TO OR GREATER THAN THAT SPECIFIED FOR EACH APPLIANCE. EVERY 90° ELBOW OR (T) COUPLING IS THE EQUIVALENT OF 1 METRE OF PIPE.
- Page 15 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE INSTALLATION EXAMPLES Key: T - T fitting; Ø ST - Stove diameter T; RAC Ø ST Ø CF - Stove and smoke duct connection; Ø CF - Smoke duct diameter; IS - Insulator;...
- Page 16 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE ELECTRICAL CONNECTION The electrical connection must be performed by qualified personnel who install circuit breakers upstream of the appliance. Special attention should be paid when the operation is a supplementary action and all equipment must operate as planned.
- Page 17 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE PRODUCT DESCRIPTION QV9 QV11 / TV9 TV11 TECHNICAL DATA Smoke exhaust PRIMARY AIR INTAKE Superior smoke exhaust ---- ---- weight Tank capacity Heatable room size QV9 / TV9 Heatable room size QV11 / TV11 Pellet consumption QV9 / TV9 Kg/h...
- Page 18 (Ppilot) Carefully read the installation, use and maintenance instructions. Eva Stampaggi S.r.l. Via Cal Longa Z.I. 31028 Vazzola (TV) ITALY P.IVA: 01183110269 Tel. +39 0438 740433 Fax. +39 0438 740821 e-mail: info@evacalor.it Based on EU regulation 305/2011, the declaration of performance (DoP) is available on the websites: www.evacalor.it...
- Page 19 (Ppilot) Carefully read the instructions for installation, use and maintenance. Eva Stampaggi S.r.l. Via Cal Longa Z.I. 31028 Vazzola (TV) ITALY VAT No.: 01183110269 Tel. +39 0438 740433 Fax. +39 0438 740821 email: info@evacalor.it According to EU Regulation 305/2011, the Declaration of Performance (DoP) is available on the websites: www.evacalor.it...
- Page 20 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE PRODUCT DETAILS ATTENTION THE STOVE DOES NOT WORK IF THE LID OF THE PELLET HOPPER IS OPEN. USE OF THE PRODUCT REMOTE CONTROL The remote control displays information regarding the operating status of the stove. A variety of data can be displayed and settings carried out according to the level of access by using the menu.
- Page 21 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE BUTTON (P6) - Return: Used to return to the previous menu. BUTTON (P7) - Set/menu: This button allows access to the user and technical parameters menu. After entering the menu, use this button to access the next sub-menu or set the value and move to the next menu item when in programming mode.
- Page 22 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE SELECT LANGUAGE menu Use this command to select one of the languages available. SELECT PROBE menu Use this command to select the internal one or that of the remote control FAN MODE menu In this menu it is possible to enable or disable room ventilation at powers P1, P2 and P3 in order to guarantee the greatest possible comfort.
- Page 23 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE USER FUNCTIONS Standard functioning of a control board properly installed on an air stove is described below with reference to the functions available to users. Stove ignition Hold P3 button down for a few seconds to switch on the stove. The display shows “START or CHECK UP” when the ignition is switched on.
- Page 24 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE Room temperature reaches the set value (SET temperature) When the set room temperature value is reached, the stove heat output is automatically set to the minimum value. During this phase, the display shows the message “MODULATION”.
- Page 25 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE ALARMS In the event that an operating fault occurs, the board intervenes and signals the occurrence of an irregularity, switching on the alarm LED (alarm LED on) and emitting acoustic signals. The possible alarm messages are listed below: Display shows Cause POWER OUTAGE ALARM...
- Page 26 ATTENTION Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by the failure/incorrect cleaning and routine maintenance of the stove.
- Page 27 QV9 TV9 QV11 TV11 - PELLET STOVE ATTENTION Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction and those resulting from people or things caused by the failure/incorrect extraordinary maintenance of the stove. It is not uncommon, at the first cold spell and with wind for fires to ignite in the chimney due to the residue build up; some advice in the unfortunate event of this happening is: ●...
- Page 28 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE TROUBLESHOOTING FIRST START-UP FIRST START-UP IT MAY BE NECESSARY TO REPEAT THE FIRST LOAD PHASE A FEW TIMES TO FACILITATE THE APPLIANCE INITIAL START-UP AS THE AUGER TUBE IS COMPLETELY EMPTY AND IT MAY TAKE A SPECIFIC PERIOD OF TIME TO FILL.
- Page 29 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE PROBLEM CAUSE SOLUTION POWER OUTAGE CHECK PLUG AND POWER SUPPLY OR ON/OFF SWITCH CALL TECHNICAL ASSISTANCE. FAULTY ELECTRICAL CABLE CALL TECHNICAL ASSISTANCE. DISPLAY INTERRUPTED FUSE IN CONTROL SWITCHED OFF BOARD CALL TECHNICAL ASSISTANCE.
- Page 30 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE PROBLEM CAUSE SOLUTION STOP FIRE CLN-BURN POT PERIODIC CYCLE OF BURN POT CORRECT OPERATION. CLEANING CLEAN BURN POT CLEAN BURN POT ALAR DEP FAIL FIREPLACE NOT COMPLIANT, MAX 6 METRES OF TUBE ACTIVE ALARM EXCESSIVE OR INADEQUATE VENT WITH Ø...
- Page 31 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE PROBLEM CAUSE SOLUTION (FIELD SEARCH) REMOTE CONTROL HAS LOST THE PRESS THE KEYS 1 AND 2 SIMULTANEOUSLY FOR REMOTE CONTROL UNIT ABOUT 3-4 SECONDS UNTIL THE "CHOOSE UNIT" DOES NOT APPEARS POSSIBLE INTERFERENCE...
- Page 32 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE 10 INSTALLATION AND TEST CERTIFICATE CERTIFICATE OF INSTALLATION AND TESTING CUSTOMER STREET/ROAD: CITY: POSTAL CODE: PROVINCE TEL: Delivery date: Delivery document: Equipment mod.: Serial number: Year: DEALER and INSTALLER DATA First name: Last Name: Address:...
- Page 33 EN 303-5:2012 (pellet boilers) Eva Stampaggi S.r.l. guarantees that the stove is free from defects that make it unsuitable for its intended use or significantly reduce its value. The rules of the Italian Civil Code or applicable national law governing the guarantee in the sales contract, or applicable national law ex D.
- Page 34 AN INSTALLATION ACCORDING TO THE LAW IS MANDATORY, EVA STAMPAGGI STRONGLY RECOMMENDS A FIRST IGNITION OF ITS PRODUCTS WITH A QUALIFIED TECHNICIAN. EVA STAMPAGGI HAS NO LIABILITY OF ONLINE SALES AND RELATED OFFERS, BECAUSE IT DOES NOT MAKE DIRECT SALES TO THE GENERAL PUBLIC.
- Page 35 Installation, use and maintenance manual QV9 TV9 QV11 TV11 - PELLET STOVE 9510055800 - 1.0 - 12/04/2022...
- Page 36 EVA STAMPAGGI SRL reserves the right to make technical changes to this manual without notice. The data and characteristics indicated do not bind , which reserves the right to make any changes deemed appropriate without prior notice or replacement._x000D_ All rights reserved. Total or partial reproduction prohibited without express authorization from .
