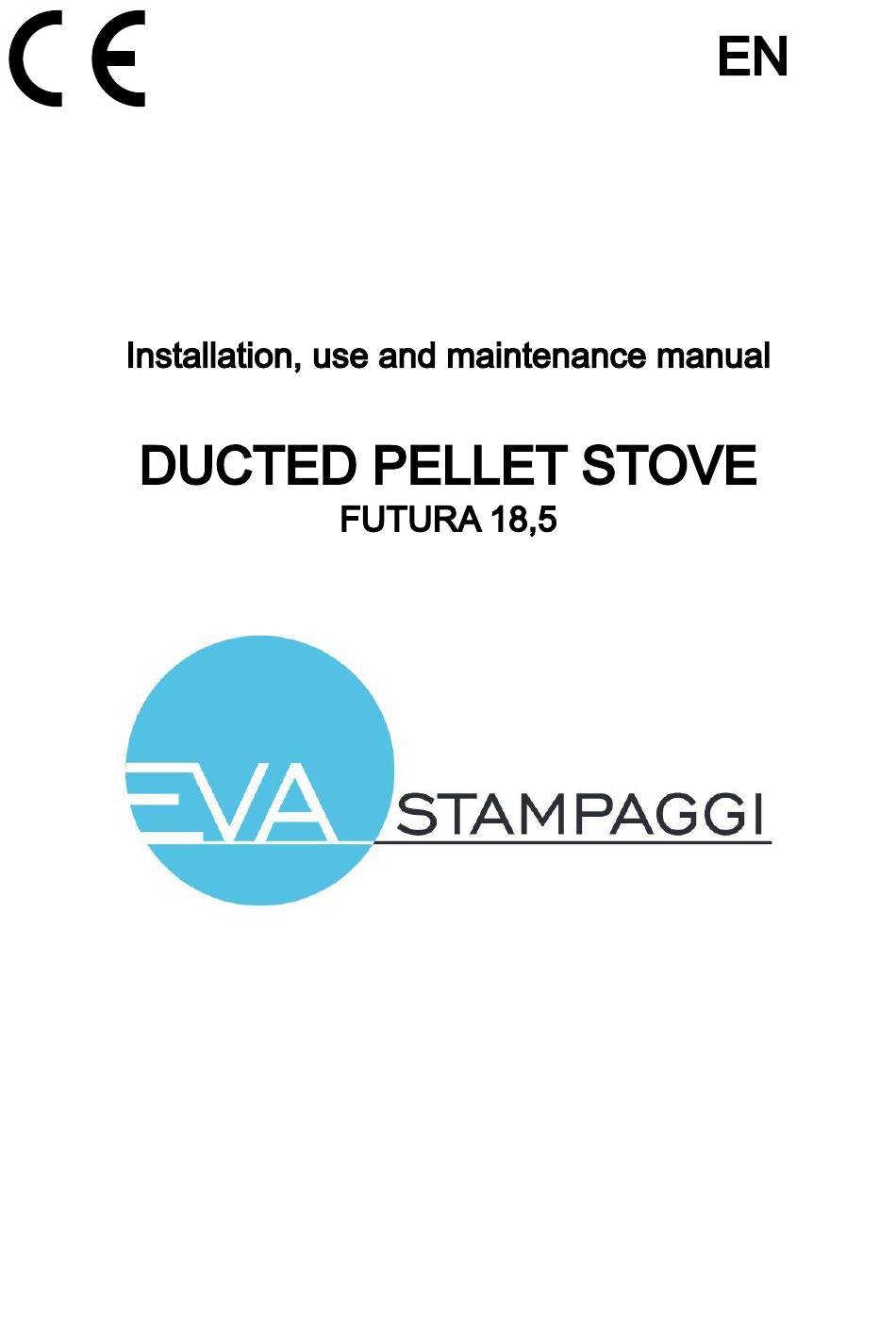

- Page 1 Translation of copy in original language IMPORTANT: MUST BE READ 831087800 rev. 1.0 29/11/2022 Installation, use and maintenance manual DUCTED PELLET STOVE FUTURA 18,5...
- Page 2 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE TABLE OF CONTENTS 1 PRODUCT SAFETY 2 HANDLING AND UNPACKING 3 MINIMUM INSTALLATION REQUIREMENTS 4 INSTALLATION 4.1 FLUE PIPE 4.2 CHIMNEY COWL 4.3 DRAUGHT 4.4 STOVE EFFICIENCY 4.5 AIRTIGHT STOVE ONLY 4.6 INSTALLATION PLACE...
- Page 3 Each stove is subjected to internal testing before shipment and as such residues inside the appliance may be found. Eva Stampaggi aims to provide as much information as possible to ensure safer use and to avoid damage to persons, property or parts of the stove itself.
- Page 4 ● Read the manual carefully: ● Eva Stampaggi S.r.l. assumes no responsibility for damage to persons and/or property or for the malfunction of the stove resulting from non-compliance with the provisions of this Instruction Manual ● The guarantee will remain valid for 1 year for professional operators and 2 years for consumers ●...
- Page 5 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE ATTENTION ATTENTION! DO NOT TOUCH the FIRE DOOR, the GLASS, the HANDLE or the FUME OUTLET DURING FUNCTIONING if not wearing adequate protective devices since they become extremely hot! ●...
- Page 6 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE ATTENTION These stoves operate exclusively with pellets and olive pomace if the stove is designed for it; DO NOT USE DIFFERENT COMBUSTIBLES: any other material burned will cause the apparatus to malfunction.
- Page 7 INSTALLATION WITH WALL FUME OUTLET IS PROHIBITED. INSTEAD THE FUME OUTLET MUST BE ROOF- TYPE AS PROVIDED FOR BY NATIONAL REGULATIONS. Eva Stampaggi S.r.l. assumes no responsibility for damage to persons and/or property caused by non-compliance with the point highlighted above for products installed in a non-compliant manner.
- Page 8 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE 3 issuing of additional documentation - the installer's responsibility. The release of technical documentation must include: ● use and maintenance manual for the appliance and the components of the system (e.g. smoke channels, chimney flue, etc.);...
- Page 9 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE INSTALLATION FLUE PIPE THE PRODUCTION OF STOVES WITH HIGHER PERFORMANCE IS INCREASINGLY REQUIRED SO IT IS BECOMES ESSENTIAL TO ENSURE THAT INSTALLATIONS COMPLY WITH THE LAW. IF THE VENT PIPE PASSES THROUGH NON-HEATED ENVIRONMENTS, IT MUST BE INSULATED FOR CORRECT COMBUSTION.
- Page 10 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE CHIMNEY COWL A properly installed chimney cowl ensures optimum stove functioning. The anti-downdraught chimney cowl consists of a number of components whose outlet section sum always doubles the flue pipe section. Make sure the chimney cowl is at least 150cm above the roof rise so that it is fully exposed to the wind.
- Page 11 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE DRAUGHT Fumes heat up during combustion, increasing their volume. Their density is therefore lower than the one of the surrounding colder air. This difference between the inside and outside temperatures of the chimney results in a negative pressure which increases proportionally to the vent pipe length and the temperature.
- Page 12 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE ATTENTION Read the manual carefully: Before installing, the following indications must be met: Select the position where the stove is to be installed and: ● Arrange the connection to the vent pipe for fume extraction.
- Page 13 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE INSTALLATION PLACE ATTENTION Read the manual carefully: ● When the stove is on, it can create a depression in the room where it is installed, therefore there must not be any open flame apparatus in the same room, with the exception of type C boilers (airtight).
- Page 14 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE CONNECTION TO THE FLUE PIPE THE LENGTH OF THE FUME DUCT PIPE MUST HAVE A DIAMETER EQUAL TO OR GREATER THAN THAT SPECIFIED FOR EACH APPLIANCE. EVERY 90° ELBOW OR (T) COUPLING IS THE EQUIVALENT OF 1 METRE OF PIPE.
- Page 15 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE INSTALLATION EXAMPLES Key: T - T fitting; Ø ST - Stove diameter T; RAC Ø ST Ø CF - Stove and smoke duct connection; Ø CF - Smoke duct diameter;...
- Page 16 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE ELECTRICAL CONNECTION The electrical connection must be performed by qualified personnel who install circuit breakers upstream of the appliance. Special attention should be paid when the operation is a supplementary action and all equipment must operate as planned.
- Page 17 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE PRODUCT DESCRIPTION FUTURA 18,5 TECHNICAL DATA Smoke exhaust PRIMARY AIR INTAKE weight Tank capacity Heating room size Pellet consumption Kg/h smokes temperature °C Gas flow 13,0 minimum draft Tension / frequency...
- Page 18 (Ppilot) Carefully read the installation, use and maintenance instructions. Eva Stampaggi S.r.l. Via Cal Longa Z.I. 31028 Vazzola (TV) ITALY P.IVA: 01183110269 Tel. +39 0438 740433 Fax. +39 0438 740821 e-mail: info@evacalor.it Based on EU regulation 305/2011, the declaration of performance (DoP) is available on the websites: www.evacalor.it...
- Page 19 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE PRODUCT FEATURES INSTALLATION PROCEDURE FOR THE CORRECT INSTALLATION OF THE PRODUCT INTRODUCTION: The minimum monoblock dimensions and openings for correct air circulation must be taken into account when installing to prevent the item from overheating.
- Page 20 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE The picture shows the power trend based on the length of the duct pipe. ATTENTION THE STOVE DOES NOT WORK IF THE LID OF THE PELLET HOPPER IS OPEN.
- Page 21 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE User pairing ● Disconnect and reconnect the main electronic board. ● Once the buzzer sounds, briefly press ON/OFF on the radio terminal. ● The following text will appear: Network Discovery..
- Page 22 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE SETTING Fume exhaustion correction Pellet load correction 10% increase 10% decrease 8% increase 8% decrease 6% increase 6% decrease 4% increase 4% decrease 2% increase 2% decrease no correction...
- Page 23 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE SET CHRONO 1/2/3/4 represent the 4 programs that can be enabled, each with different time slots. A typical use could be: o Set Chrono 1 for daily use during the autumn working period...
- Page 24 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE - Note that the destination, being different from the origin, is not highlighted by the rectangle. - To save, long press the selected destination. After finding the corresponding menu item, use the P4 (SET) key to open the selection menu. Use the P5 and P6 to enable/disable the option.
- Page 25 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE Temperature set Reached The stove will automatically adjust its heat output level so as to keep the set temperature constant, guaranteeing greater benefits to the user; once the SET temperature is reached, the heat output automatically decreases to a minimum.
- Page 26 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE ALARMS To each event corresponds an alarm that is activated after the delay time indicated when the event occurs. If the cause of the alarm is not removed within this period of time, the stove enters the alarm condition, shuts down immediately and enables the fume fan and the exchanger fan at maximum speed.
- Page 27 ATTENTION Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction of the stove and for damage to persons or property caused by the failure/incorrect cleaning and routine maintenance of the stove.
- Page 28 FUTURA 18,5 - DUCTED PELLET STOVE ATTENTION Eva Stampaggi S.r.l. assumes no criminal and/or civil liability, direct and/or indirect for the malfunction and those resulting from people or things caused by the failure/incorrect extraordinary maintenance of the stove. It is not uncommon, at the first cold spell and with wind for fires to ignite in the chimney due to the residue build up; some advice in the unfortunate event of this happening is: ●...
- Page 29 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE TROUBLESHOOTING FIRST START-UP FIRST START-UP IT MAY BE NECESSARY TO REPEAT THE FIRST LOAD PHASE A FEW TIMES TO FACILITATE THE APPLIANCE INITIAL START-UP AS THE AUGER TUBE IS COMPLETELY EMPTY AND IT MAY TAKE A SPECIFIC PERIOD OF TIME TO FILL.
- Page 30 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE PROBLEM CAUSE SOLUTION POWER OUTAGE CHECK PLUG AND POWER SUPPLY OR ON/OFF SWITCH CALL TECHNICAL ASSISTANCE. FAULTY ELECTRICAL CABLE CALL TECHNICAL ASSISTANCE. DISPLAY INTERRUPTED FUSE IN CONTROL SWITCHED OFF BOARD CALL TECHNICAL ASSISTANCE.
- Page 31 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE PROBLEM CAUSE SOLUTION STOP FIRE CLN-BURN POT PERIODIC CYCLE OF BURN POT CORRECT OPERATION. CLEANING CLEAN BURN POT CLEAN BURN POT ALAR DEP FAIL FIREPLACE NOT COMPLIANT, MAX 6 METRES OF TUBE...
- Page 32 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE PROBLEM CAUSE SOLUTION (FIELD SEARCH) REMOTE CONTROL HAS LOST THE PRESS THE KEYS 1 AND 2 SIMULTANEOUSLY FOR REMOTE CONTROL UNIT ABOUT 3-4 SECONDS UNTIL THE "CHOOSE UNIT" DOES NOT...
- Page 33 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE 10 INSTALLATION AND TEST CERTIFICATE CERTIFICATE OF INSTALLATION AND TESTING CUSTOMER STREET/ROAD: CITY: POSTAL CODE: PROVINCE TEL: Delivery date: Delivery document: Equipment mod.: Serial number: Year: DEALER and INSTALLER DATA...
- Page 34 EN 303-5:2012 (pellet boilers) Eva Stampaggi S.r.l. guarantees that the stove is free from defects that make it unsuitable for its intended use or significantly reduce its value. The rules of the Italian Civil Code or applicable national law governing the guarantee in the sales contract, or applicable national law ex D.
- Page 35 AN INSTALLATION ACCORDING TO THE LAW IS MANDATORY, EVA STAMPAGGI STRONGLY RECOMMENDS A FIRST IGNITION OF ITS PRODUCTS WITH A QUALIFIED TECHNICIAN. EVA STAMPAGGI HAS NO LIABILITY OF ONLINE SALES AND RELATED OFFERS, BECAUSE IT DOES NOT MAKE DIRECT SALES TO THE GENERAL PUBLIC.
- Page 36 Installation, use and maintenance manual FUTURA 18,5 - DUCTED PELLET STOVE 831087800 - 1.0 - 29/11/2022...
- Page 37 EVA STAMPAGGI SRL reserves the right to make technical changes to this manual without notice. The data and characteristics indicated do not bind , which reserves the right to make any changes deemed appropriate without obligation of notice or replacement.
