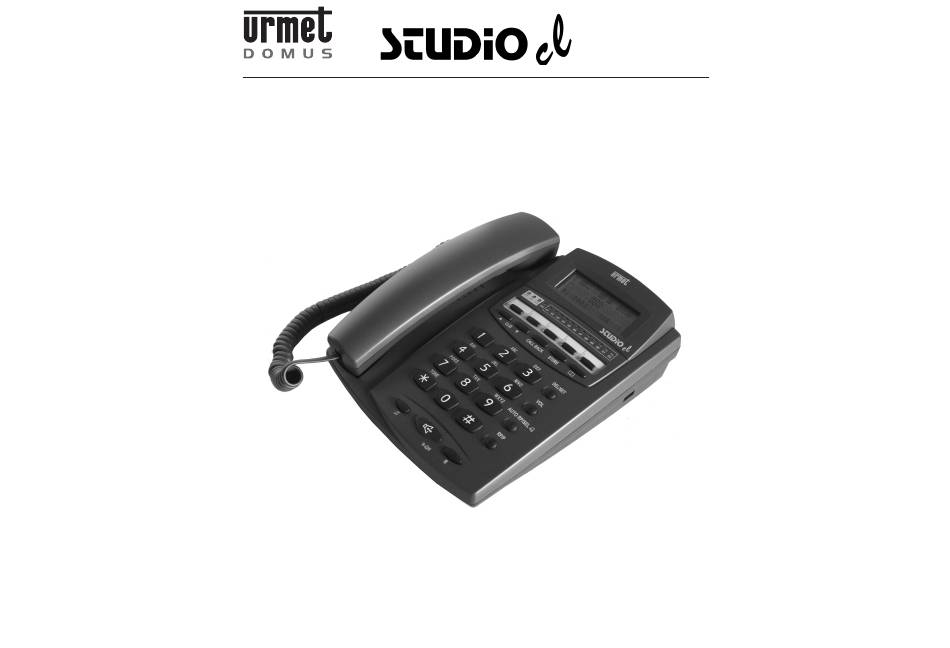

FEATURES TELEPHONE WITH BUSY LAMP FIELD STUDIO CL
Sch./Ref. 4095/14
LIBRETTO ISTRUZIONI
INSTRUCTIONS FOR USE

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4095/14 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 4095/14

  • Page 1 Mod. 4095 DS 4095-0003 LBT 8034 TELEFONO MULTIFUNZIONE CON CAMPO LAMPADE STUDIO CL FEATURES TELEPHONE WITH BUSY LAMP FIELD STUDIO CL Sch./Ref. 4095/14 LIBRETTO ISTRUZIONI INSTRUCTIONS FOR USE...
  • Page 2: Table Of Contents

    Imballo..............................2 Consigli per la collocazione del telefono ....................2 La società Urmet Domus S.p.A. con sede in via Bologna n° 188/C – 10154 Torino (TO) I, dichiara che il presente dispositivo è conforme alle seguenti norme: Installazione ............................. 2 •...
  • Page 3: Caratteristiche

    INFORMAZIONE AGLI UTENTI 1. CARATTERISTICHE 1.1 CARATTERISTICHE GENERALI Il simbolo riportato sull’apparecchiatura indica che il rifi uto deve essere oggetto di “raccolta separata”. Pertanto, l’utente dovrà conferire (o far conferire) il rifi uto ai centri di raccolta differenziata predisposti dalle amministrazioni locali, oppure consegnarlo al rivenditore contro acquisto di una nuova apparecchiatura di tipo equivalente.
  • Page 4: Dimensioni

    PIEDINI 2. INSTALLAZIONE CONNETTORE CAVO LINEA TELEFONICA SUPPORTI PER INSTALLAZIONE A Il telefono Studio CL può essere installato come derivato da centralini PABX della serie Agorà Sch. 1332/5xx PARETE e Agorà 2 Sch. 1372/312, non può essere installato su centralini della serie Agorà 6 Sch. 1362/624. CONNETTORE CAVO MICROTELEFONO VANO BATTERIE 2.1 INSERIMENTO DELLE BATTERIE...
  • Page 5: Collegamento Del Cavo

    PROGRAMMAZIONE DELLE FUNZIONI La funzione di campo lampade non è garantita nel caso in cui il telefono sia collegato a valle di altri 1. Lingua: Premere i tasti per scegliere una delle 10 lingue (italiano, svedese, tedesco, olandese, turco, inglese, francese, spagnolo, portoghese o polacco). dispositivi (es.
  • Page 6: Installazione A Parete

    3.2 RISPONDERE AD UNA CHIAMATA 10. Modalità di selezione: Premere i tasti per scegliere, secondo le vostre esigenze, la modalità desiderata (DTMF= multifrequenza o PULSE= decadica) premere il tasto PROCEDURA DEL/SET per confermare e uscire dalla programmazione delle funzioni. All’attivazione dei dispositivi di segnalazione di chiamata (suoneria e spia), sollevate il microtelefono. In fabbrica il telefono è...
  • Page 7: Uso Delle Memorie

    4.3 PROGRAMMAZIONE DELLE FUNZIONI CITOFONICHE DESCRIZIONE Avendo installato il telefono Studio Cl come derivato da centralino PABX Urmet Domus della Serie Agorà ed in genere su tutti i centralini PABX Urmet Domus ad esclusione degli intercomunicanti, è possibile memorizzare i comandi dei servizi citofonici per un uso semplifi cato.
  • Page 8: Richiamo Delle Memorie

    5. FUNZIONE CALLER ID (IDENTIFICATIVO DEL CHIAMANTE) Tasto Premuto Premuto Premuto Premuto 1 volta 2 volte 3 volte 4 volte Le ricordiamo che per poter usufruire di questa funzione potrebbe essere necessario sottoscrivere Spazio Spazio Spazio Spazio l’abbonamento al servizio con il gestore della rete. Inoltre è...
  • Page 9: Campo Lampade

    Spazio Spazio DECLARATION OF CONFORMITY The manufacturer, Urmet Domus S.p.A. whose legal offi ces are in via Bologna 188/C - 10154 Torino (TO), Italy, hereby declares that this telephone complies with the following standards: • EN55022, EN55024 - Electromagnetic compatibility •...
  • Page 10 TABLE OF CONTENTS INFORMATION FOR USERS The symbol on the equipment indicates that waste must be “collected separately”. INFORMATIVE NOTES ..........................17 CE Declaration of Conformity......................... 17 Therefore, the user must send the waste (or have it sent) to authorized differentiated waste collection centres Intended use of the device ........................
  • Page 11: Features

    1. FEATURES FEET TELEPHONE LINE SOCKET 1.1 GENERAL FEATURES WALL INSTALLATION MOUNTS HANDSET SOCKET BATTERY COMPARTMENT MODEM SOCKET 1.2 DIMENSIONS 172 mm 81 mm HANDSET 11 DEL/SET BUTTON HANDSET HOOK 12 VOL BUTTON LINE HOOK 13 AUTO RP/SEL BUTTON DISPLAY 14 RP/P BUTTON NUMBER CARD 15 R BUTTON...
  • Page 12: Installation

    The Studio CL telephone may be installed as extension of Agorà and Agorà 2 switchboards (PABXs) Ref. 1332/5xx and Ref. 1372/312, it cannot installed as extension of Agorà 6 switchboard Ref. 1362/624. Follow the relevant Urmet Domus PABX installation specifi cations for connecting the telephone to the switchboard.
  • Page 13: Wall Installation

    FUNCTION PROGRAMMING 2.5 WALL INSTALLATION 1. Language: Press to select one of the 10 languages (Italian, Swedish, German, Dutch, The telephone can be installed on the wall using two bolts (not included) in correspondence with the specifi c Turkish, English, French, Spanish, Portuguese or Polish). Press DEL/SET to confi rm slots on the back of the telephone.
  • Page 14: Answering A Call

    Door phone controls for simple use can be programmed if the Studio Cl telephone is installed as a Urmet DESCRIPTION Domus Agorà PABX switchboard extension or other Urmet Domus PABX switchboards, except for intercom The ON-HOLD MUSIC function is used to play a musical melody to the calls and keep the call on hold.
  • Page 15: Number Card

    DOOR PHONE FUNCTION RECALL PROCEDURE Button Pressed Pressed Pressed Pressed 1. Lift the handset. once twice three times four times 2. Press the memory button (1 to 5) corresponding to Blank Blank Blank Blank the door phone function to be used. 3.
  • Page 16: Caller's Id Function

    The day/night (GN) service LED will came on when night mode is active. See your Urmet Domus switchboard instruction manual for additional If the caller’s number is longer than 16 digits, the fi rst 16 digits will appear on the central line for approximately details on operation.
  • Page 17 DS 4095-0003 LBT 8034 FILIALI STABILIMENTO 20151 MILANO - V.Gallarate 218 URMET DOMUS S.p.A. Tel. 02.380.111.75 - Fax 02.380.111.80 10154 TORINO (ITALY) 00043 CIAMPINO (ROMA) V.L. Einaudi 17/19A VIA BOLOGNA 188/C Tel. 06.791.07.30 - Fax 06.791.48.97 Telef. 011.24.00.000 (RIC. AUT.) 80013 CASALNUOVO (NA) V.Nazionale delle Puglie 3...
