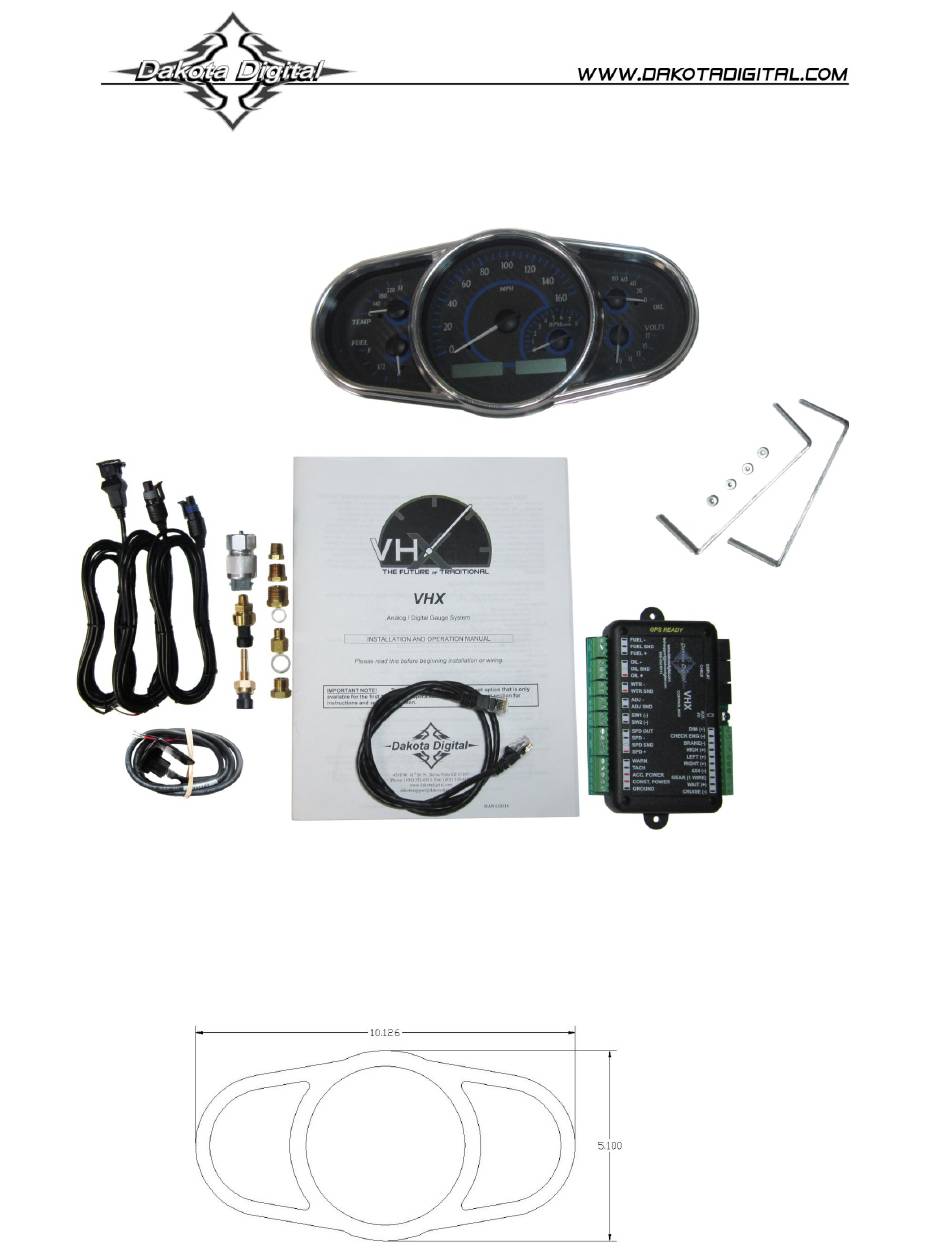

Your new VHX-1016 kit includes:
VHX Display
Universal Sender Pack
Switch Assembly
Installation
1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is
adequate clearance behind the desired mounting location. The display unit needs approximately two
inches of depth behind the dash. The overall bezel size is shown below.

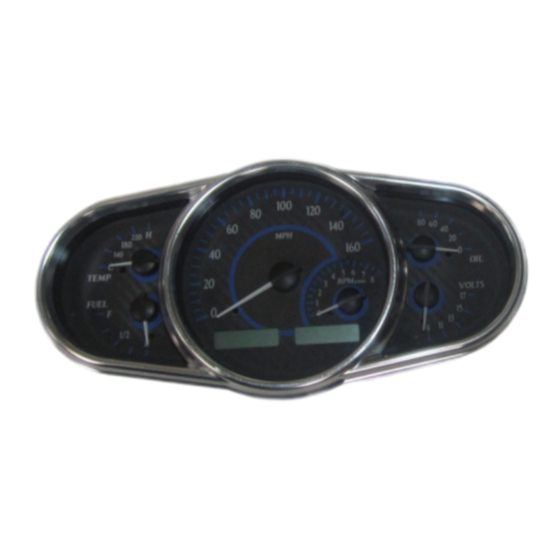

VHX-1016
Dakota Digital Universal VHX Instrument Installation
Installation Manuals
and Cutout Template
CAT5 Cable
(2x) U-Brackets
(4x) Thumb Nuts
Control Box
Manual # 650438A
Advertisement
Related Manuals for Dakota Digital VHX-1016
Summary of Contents for Dakota Digital VHX-1016
- Page 1 VHX-1016 Dakota Digital Universal VHX Instrument Installation Your new VHX-1016 kit includes: VHX Display Universal Sender Pack Installation Manuals and Cutout Template (2x) U-Brackets (4x) Thumb Nuts Switch Assembly Control Box CAT5 Cable Installation 1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is adequate clearance behind the desired mounting location.
- Page 2 2. With the appropriate opening cut, place the VHX display into the dash and attach the two (2) U-brackets to the back of the display using the provided thumb nuts. 3. Attach the provided CAT5 Cable to the back of the VHX display and carefully route the other end to the control box mounting location and refer to the main manual for wiring instructions.
