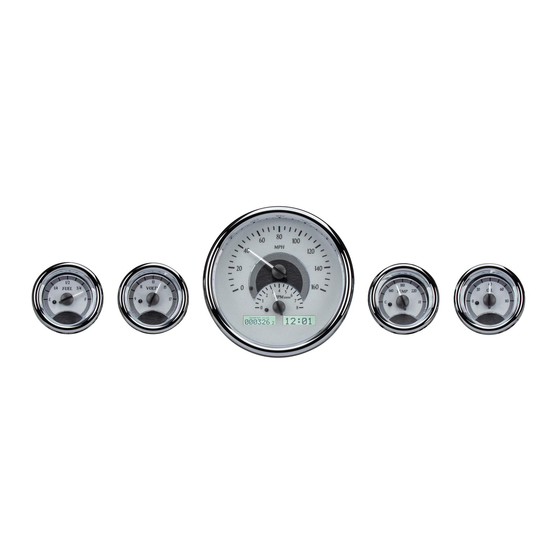

VHX-1015
Dakota Digital VHX Instrument Installation
Universal Systems

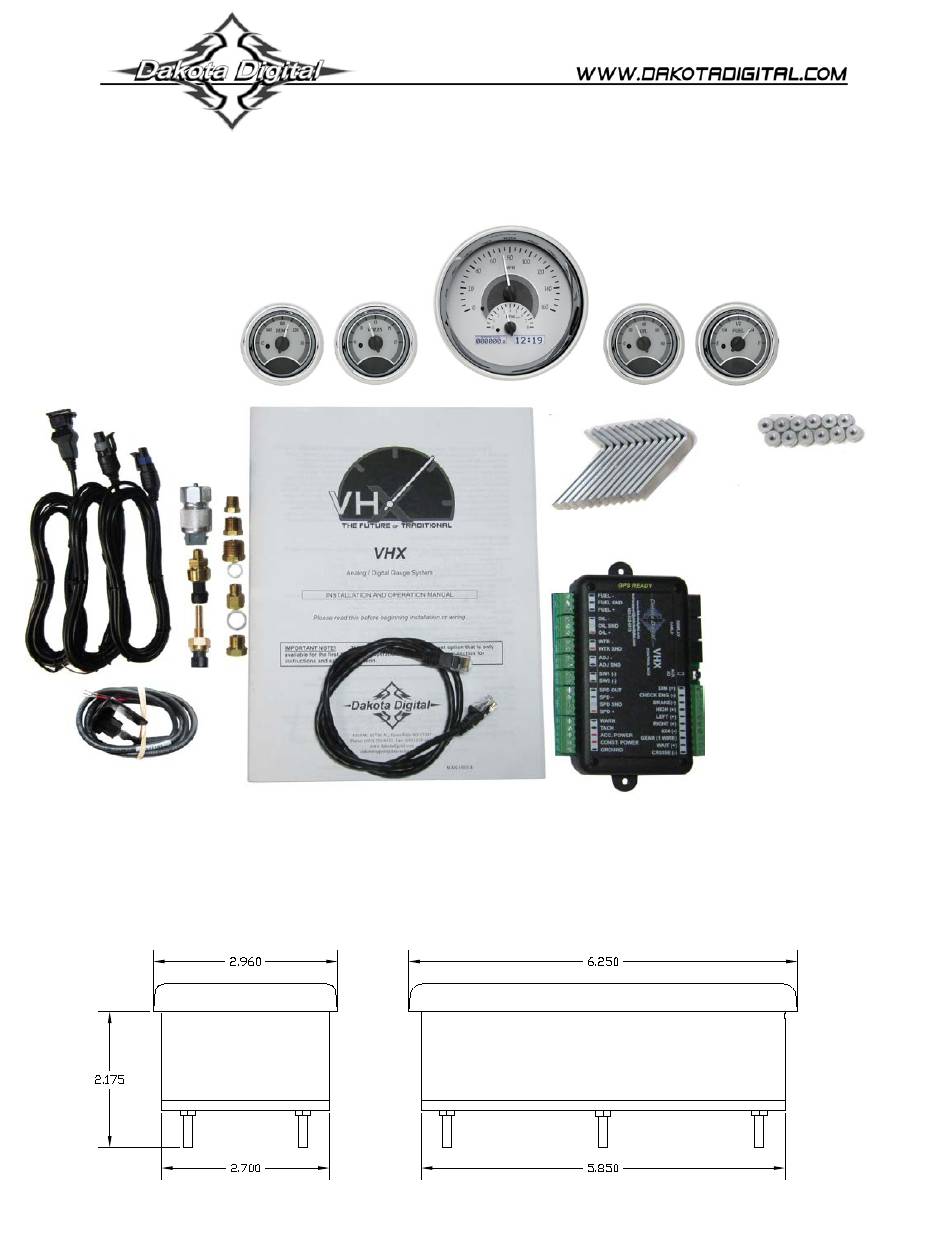

Your new VHX-1015 Universal kit includes:
VHX Display
Installation Manuals
12X Thumb nuts
12X L - Brackets
Universal Sender
Pack
Switch Assembly
CAT5 Cable
Control Box
Dimensions:
Manual # 650381B
Advertisement
Related Manuals for Dakota Digital VHX-1015
Summary of Contents for Dakota Digital VHX-1015
- Page 1 VHX-1015 Dakota Digital VHX Instrument Installation Universal Systems Your new VHX-1015 Universal kit includes: VHX Display Installation Manuals 12X Thumb nuts 12X L - Brackets Universal Sender Pack Switch Assembly CAT5 Cable Control Box Dimensions: Manual # 650381B...
- Page 2 Installation 1. First, you will need to make five openings for the system in your desired mounting location. You will need one large hole measuring 5.875” diameter and four smaller holes that are 2.75” diameter for the VHX gauges to fit through and sit flush with the surface of the dash. You will also need at least 2.5”...
- Page 3 4. Be sure to make the connections correctly between the labeled ribbon cables from the main gauge to the lead from each small gauge. 5. Connect the CAT5 cable to the backside of the large gauge and take care when routing this cable to the control box mounting location.
- Page 4 6. Refer to the main manual for wiring instructions to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Manual # 650381B...
