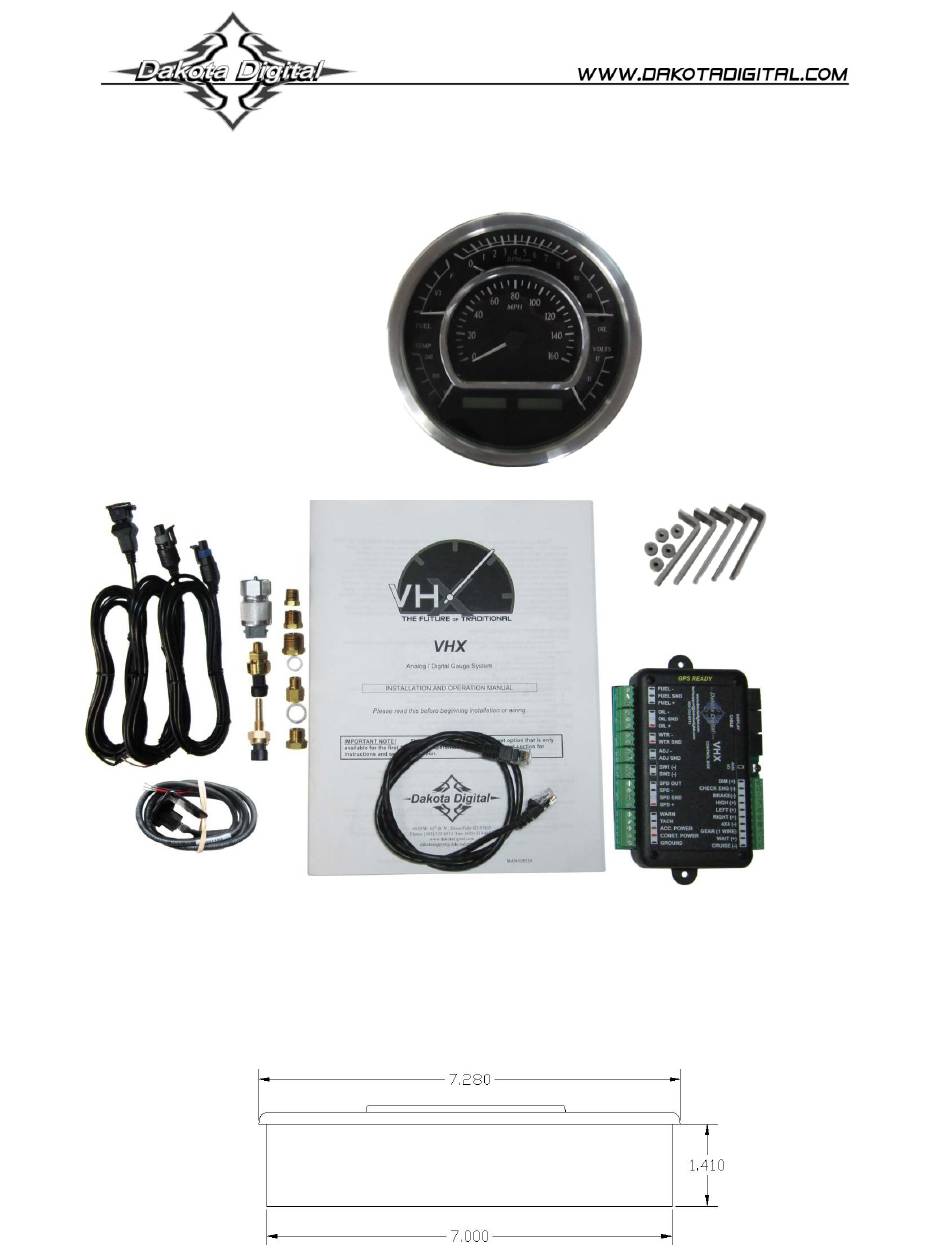

Your new VHX-1021 kit includes:
Universal Sender Pack
Switch Assembly
Installation
1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is
adequate clearance behind the desired mounting location. The display unit needs approximately two
inches of depth behind the dash.

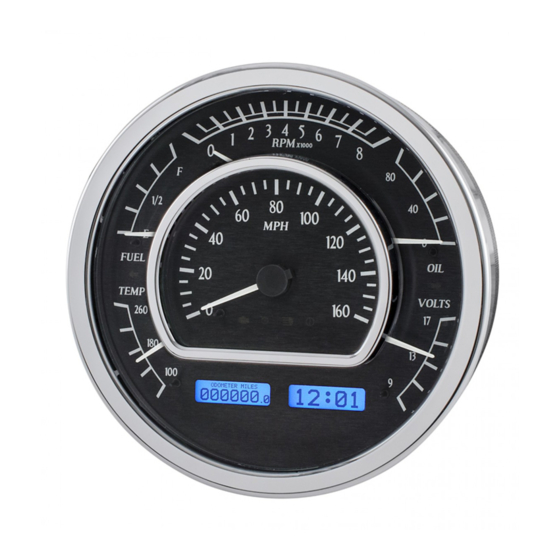

Dakota Digital Universal VHX Instrument Installation
VHX Display
Installation Manuals
and Cutout Template
VHX-1021
CAT5 Cable
(5x) L-Brackets
and Thumb Nuts
Control Box
Manual # 650455A
Advertisement
Related Manuals for Dakota Digital VHX-1021
Summary of Contents for Dakota Digital VHX-1021
- Page 1 VHX-1021 Dakota Digital Universal VHX Instrument Installation Your new VHX-1021 kit includes: VHX Display Universal Sender Pack (5x) L-Brackets and Thumb Nuts Installation Manuals and Cutout Template Control Box Switch Assembly CAT5 Cable Installation 1. Use the provided template to mark out the opening needed to fit the VHX display. Ensure there is adequate clearance behind the desired mounting location.
- Page 2 2. With the appropriate opening cut, place the VHX display into the dash and attach the five (5) L-brackets to the back of the display using the provided thumb nuts. 3. Attach the provided CAT5 Cable to the back of the VHX display and carefully route the other end to the control box mounting location.
