3.3

POWERING UP A MATRIX E7 CHASSIS WITH POWER SUPPLIES

To power up a Matrix E7 chassis with ac power supplies, proceed as follows:

NOTE: If two power supplies are installed, repeat the following procedure for each

supply.

For proper redundancy using two 6C207-1 power supplies, the power cord from each

power supply must be connected to a dedicated 20-Ampere ac power circuit.

For redundancy using two 6C207-3 power supplies, each of the four power cords from

the two power supplies must be connected to dedicated 15-Ampere ac power circuits.

Plug one end of the power cord (supplied with the power supply) into the ac power socket on the

front panel of the power supply.

1. See

Figure 3-8

for the 6C207-1 power connections and

connections.

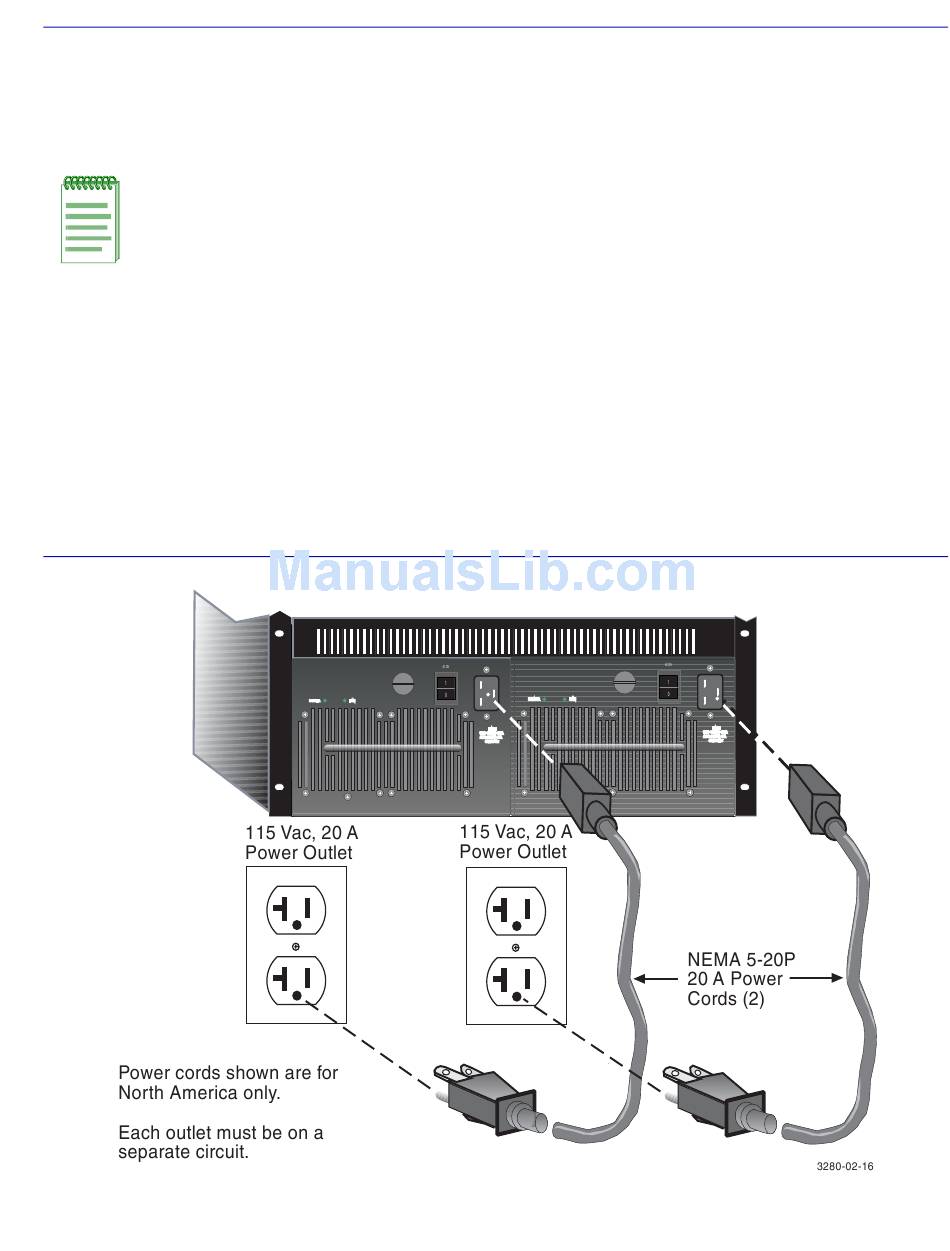

Figure 3-8 Connecting the 20-Amp AC Power Cord to the 6C207-1

Notes:

Powering Up a Matrix E7 Chassis with Power Supplies

Figure 3-9

for the 6C207-3 power

3-15
