Rack Mounting The Matrix E7 Chassis - Enterasys Matrix E7 6C107 Setup Manual

Setting Up the Matrix E7 Chassis
2. Use 12 screws provided with the equipment rack to secure the chassis to the rack, starting with
the bottom holes and working toward the top of the chassis, as shown in

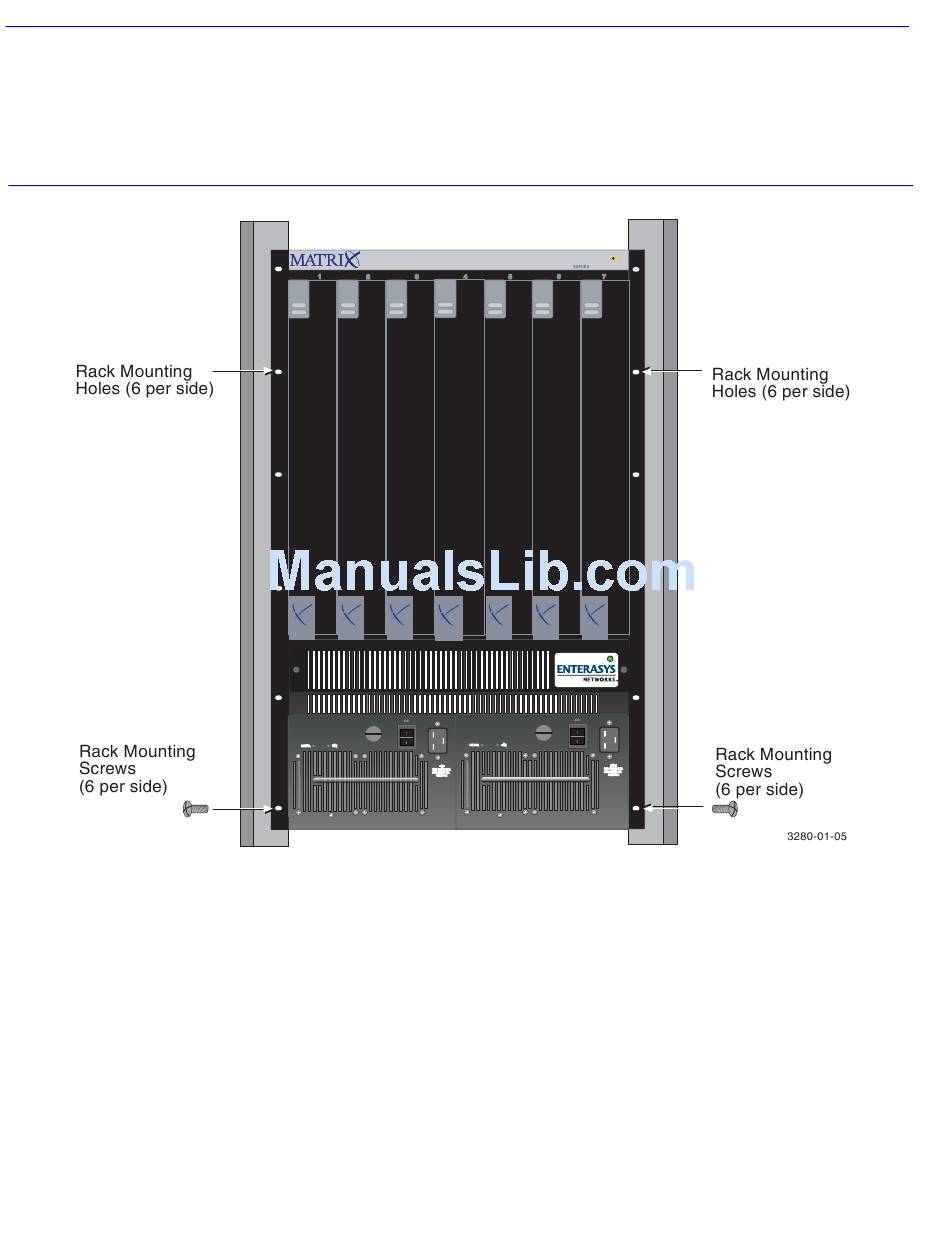

Figure 3-4 Rack Mounting the Matrix E7 Chassis
3.2.3.3 Attaching the Electrostatic Discharge Wrist Strap
The Electrostatic Discharge (ESD) wrist strap must be attached before handling the power
supplies, fan tray, and modules used in the Matrix E7 chassis. In addition, observe all precautions
when handling these modules to prevent damage from electrostatic discharge.
Place the ESD wrist strap on your wrist and plug the other end into the grounding receptacle, at the
top right corner of the chassis, shown in
3-8
Figure 3-5.
Figure
E7
3-4.
