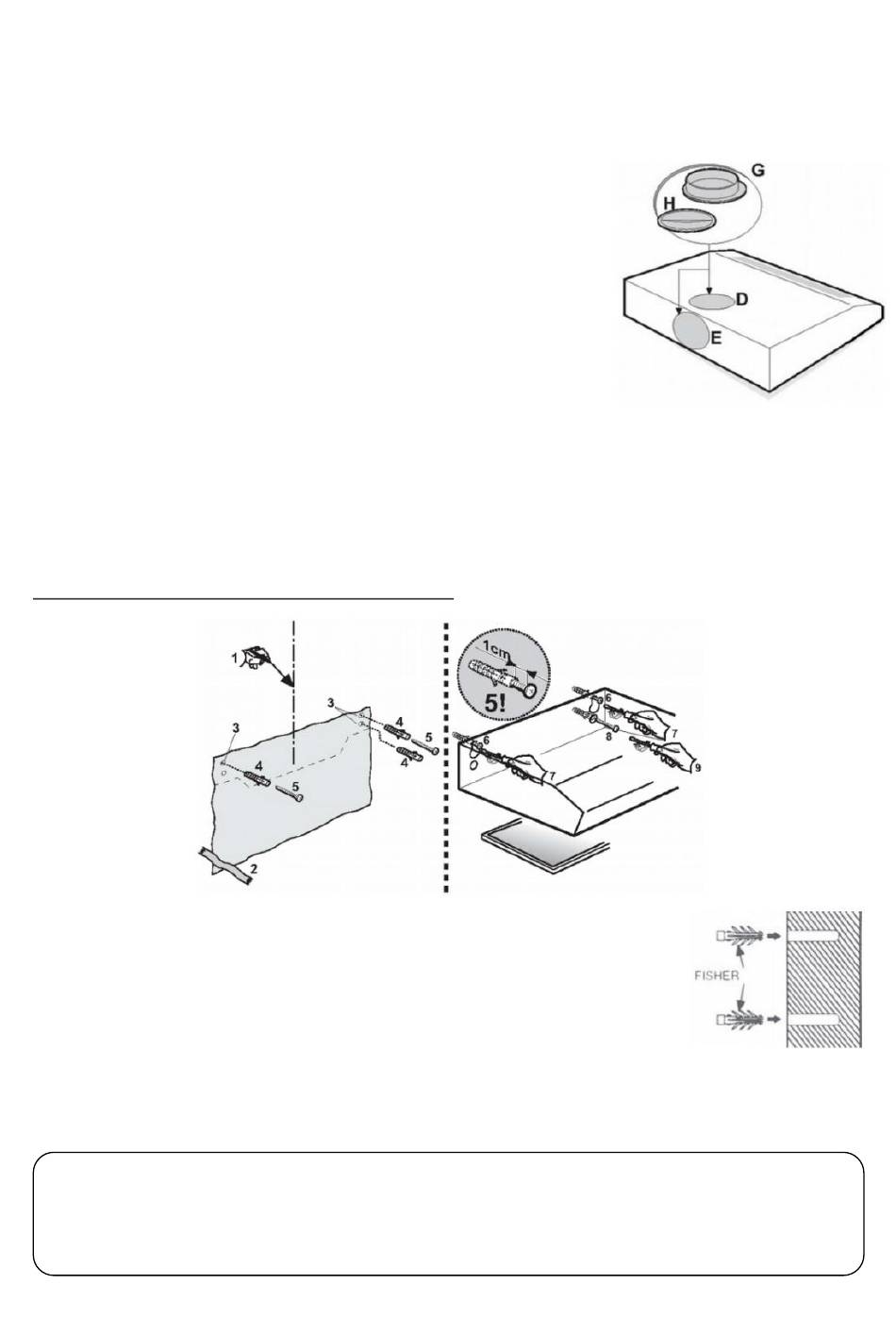

5. The exhaust hood has two holes on it: Hole D and Hole E (look at
the picture). To install the spigot/flange and hole cover, follow
these instructions: follow these instructions:
•
For ducting / exhaust system:
the spigot / flange G on one of the air
holes, either D or E. Holes which do
not have spigot / flange shall be
covered with Hole Cover H.
•
For re-circulating system:
holes D and E shall be covered with
the available plastic Hole Cover.

Installation of exhaust hood

Exhaust hood can be installed on the concrete (brick) wall or the bottom
part of the kitchen set.
Installing on concrete (brick) wall
1. Draw a centerline on the wall where the exhaust
hood is to be installed (1).
2. Post a template for drilling on the wall (2). If no
template is available, attach the exhaust hood
on the wall and mark the spot on the wall where
a hole is to be made.
3. Create holes on the four marks with a 6 mm diameter drill bit or
fisher size (3), and then insert the fisher to the four holes (4).
ATTENTION!
Before drilling, make sure that there's no cable installation, water
pipe and installation inside the wall.
Install
Both air
