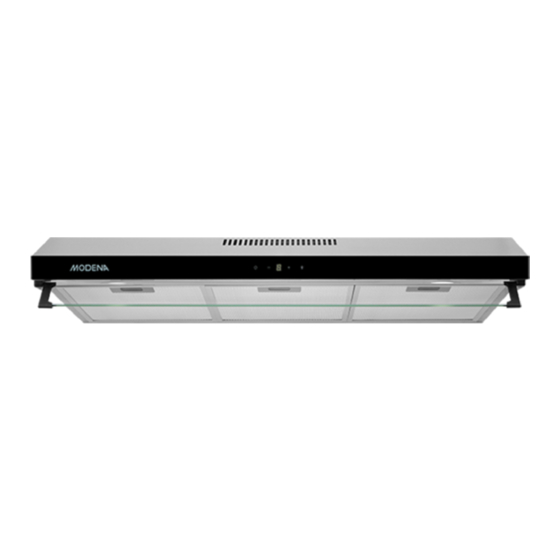

- Page 1 User Manual Book Slim Hood Moderno Series RX 9632, RX 7632...
- Page 2 Thank you for your trust in choosing MODENA products for your household needs. With your satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped with state-of-the-art technology to assist you in your daily activities. This is your guidebook containing everything you need to know about our product. Please reach out to us if you need further assistance or other information via our Customer Care or our official website www.modena.com.
-
Page 3: Table Of Contents
CONTENT PAGE Introduction • Part 1 : Safety Warnings • Part 2 : Name of Parts • Part 3 : Installation • Part 4 : How to Use • Part 5 : Maintenance • Part 6 : Problem & Solution •... -
Page 4: Part 1 : Safety Warnings
Before connecting the unit to a power source, make sure the power cord is in good shape. If there is damage to the power cord, the replacement must be performed by qualified personnel or contact the MODENA Service Center for replacement process. -
Page 5: Part 2: Name Of Parts
Part 2: Name of Parts Carbon Filter Direction airflow Control panel Lamp Aluminum filter Filter holder Part 3: Installation Exhaust hood is equipment which sucks smoke and cooking fragrance. With a vent hood, your kitchen will be free from oil particles that may produce bad odor. Check the strength of wall on which the exhaust hood is to be installed. - Page 6 The exhaust hood has two holes on it: Hole D and Hole E (look at the picture). To install the spigot/flange and hole cover, follow these instructions: • For ducting / exhaust system: Install the spigot / flange G on one of the air holes, either D or E.
- Page 7 Connect the exhaust system with the spigot / flange if the exhaust hood is to be operated as a ducting / exhaust system. OPERATING PROCEDURE MODENA Exhaust Hood has 2 (two) work methods as follows: DUCTING / EXHAUST System: •...
-
Page 8: Part 4: How To Use
Electricity Connection MODENA Exhaust Hood is designed for 220 volt electricity input, single phase with 50 Hz of frequency. This appliance uses a double-insulated power cord (2 parallel cords) and should not be connected to a grounding wire. Attention Overall installation should be performed by a competent person in the field of electrical or able to do the installation. -
Page 9: Part 5: Maintenance
Part 5: Maintenance MODENA Exhaust Hood is specifically designed for long-term usage and doesn't require complicated maintenance. However, there are several things you can do to maintain its quality as follows: Cleaning the Cabinet: To clean the surface of exhaust hood cabinet from sticky oil particles, use cloth / sponge and soap water and dry it. -
Page 10: Part 7 : Precaution
Periodically inspect the filter and oil reservoir. Make sure that the filter is in clean and good condition and make sure the oil reservoir is not exceeding the specified limit. ● If you smell burnt / burnt smell from the hood, immediately turn off the hood and contact the MODENA Service Center. ●... -
Page 11: Part 8: Specification
Part 8: Specification MODEL RX 9632 RX 7632 Type Slim hood Slim hood Material of cabinet Stainless Stainless Color of cabinet Stainless Stainless Front color Black Black Amount the Motor Light 2 LED 2 LED Control Touch button Touch button Variable speed level Cassette Aluminum Filter Cassette Aluminum Filter... - Page 12 12/20...
